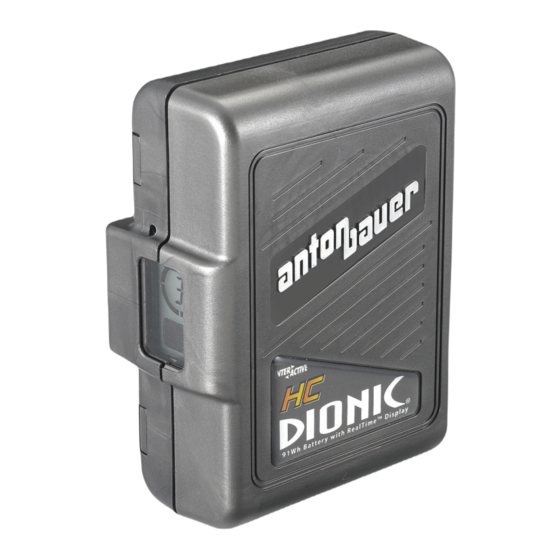

Anton/Bauer DIONIC HC Owner's Manual

Lithium ion digital battery interactive battery system
Hide thumbs Also See for DIONIC HC:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Operating Instructions
Approved Copy
®
A7595-0365 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIONIC HC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anton/Bauer DIONIC HC

Summary of Contents for Anton/Bauer DIONIC HC

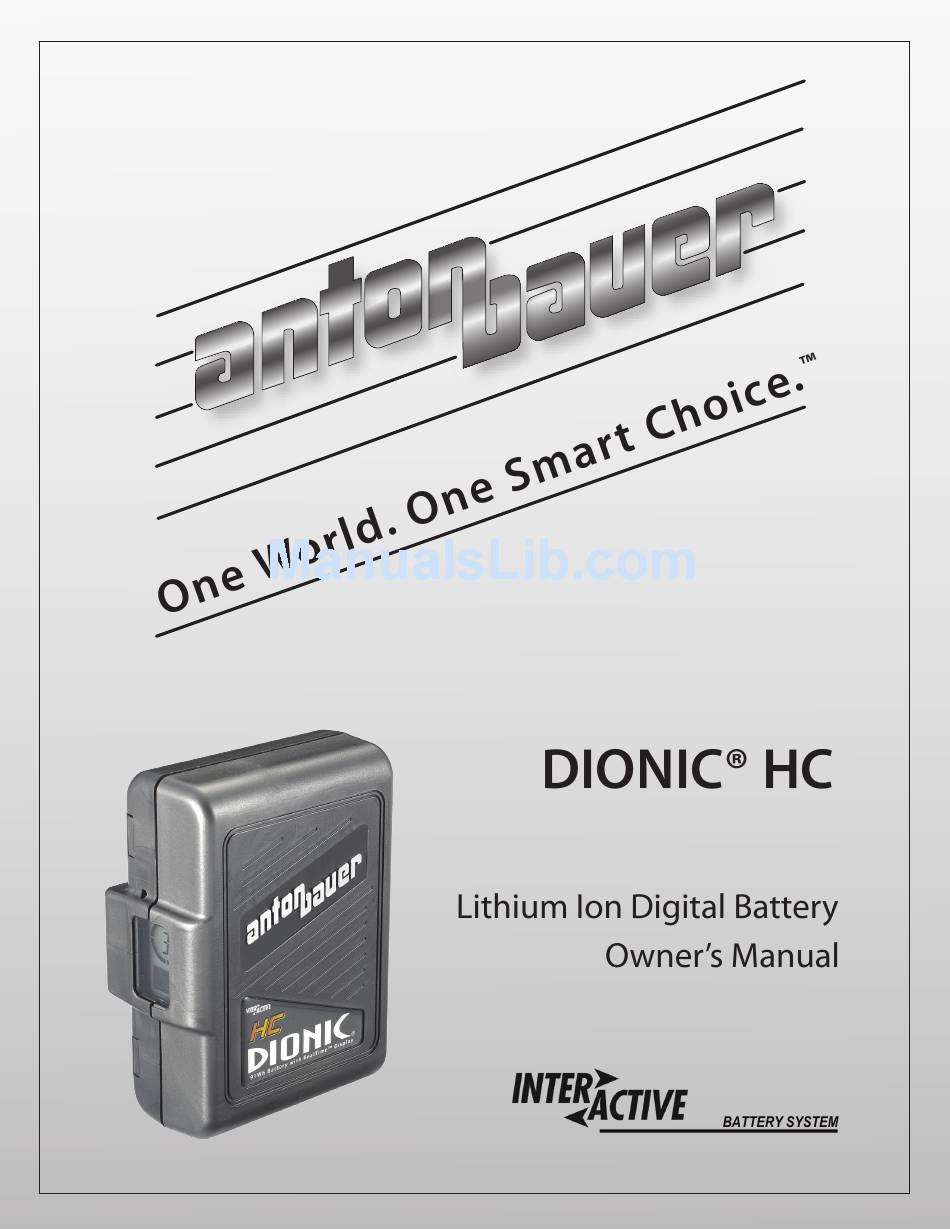

  • Page 1 Approved Copy ® A7595-0365 Rev B...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Approved Copy IMPORTANT: READ AND UNDERSTAND THIS MANUAL BEFORE OPERATION INTRODUCTION FEATURES CHARGING DIONIC® HC BATTERIES 3-4 NOMINAL CHARGE TIMES FOR DIONIC® HC 4-5 OPERATING GUIDELINES SERVICE PRECAUTIONS DIONIC® HC BATTERY SPECIFATIONS WARRANTY - DIONIC® HC BATTERY TRANSPORTATION NOTICE...

  • Page 3: Introduction

    InterActive chargers. Older model InterActive MP4D, Quad, Lifesaver Dual, ABC800 cannot charge these batteries. Do not attempt to charge on non InterActive chargers or chargers not manufactured by Anton/Bauer. Special safety circuits in the DIONIC HC battery will prevent charging on ANY char- ®...

  • Page 4: Features

    Note: On some older chargers it may be necessary to install battery on 5. Gold Mount Interface - Patented worldwide standard Gold charger, wait one (1) minute, then remove battery and re-install. This ® Mount connector is compatible with all Anton/Bauer camera procedure may need to be repeated more than once to “wake up” a low mounts and accessories. voltage battery. CHARGING TIMES 6. Individual Computer Testing – As with all Anton/Bauer batteries, each and every DIONIC® HC battery is individually tested to assure optimum capacity, voltage and overall qual- ity. A serialized computer performance graph as confirmation of this testing is enclosed. NOMINAL CHARGE TIMES FOR DIONIC® HC 100% Charge Level LED Indicators Flashing Steady Green...
  • Page 5 BATTERY AND DISPLAY Approved Copy The DIONIC® HC features an all NEW “RealTime ” LCD providing on-the-fly remaining run time estimates in 15 minute increments as well as simultaneously providing remaining capacity information using the traditional “Fuel Gauge” approach. No special adapters or set up is required. RealTime™ automatically calculates the load and displays capacity information and battery status at all times. Special electronics protect the lithium ion cells in the DIONIC® HC battery from damage and to ensure safe operation. These electronics work in conjunction with the Digital Battery electronics and will give the operator additional indications in the RealTime™ display of the battery’s status as outlined below. 7. When the battery reached its learned capacity voltage level (12.7 Vdc), the LCD will begin flashing the 15 minute icon until the bat- tery is returned to a charger. Digital readout 8. If the battery reaches an EOD condition (12.4 Vdc), the LCD’s last in Hours and fuel gauge segment will be the only remaining icon flashing until Minutes the battery is returned to a charger. 9. If the battery voltage drops below the Fuel Gauge cut out circuit voltage (10.0 -10.8 Vdc) the Fuel Gauge will be disabled and the LCD will go blank until the battery is returned to a charger.

  • Page 6: Operating Guidelines

    BATTERY AND DISPLAY (continued) Approved Copy II. REMAINING RUN-TIME GAUGE LCD Segments Remaining Run Time “3” & 4 arcs 4 Hours or greater “3” & 4 arcs 3 Hours 45 minutes to 3 Hours 59 minutes “3” & 3 arcs 3 Hours 30 minutes to 3 Hours 44 minutes “3”...

  • Page 7: Service

    4. This battery contains specialized electronic circuits, which are designed to protect the lithium ion cells from over- Anton/Bauer publishes a comprehensive “Video Battery Handbook” charge, overdischarge and overcurrent. Redundant protec- to help you further understand the care and use of video batteries. tion devices are designed to operate if the battery voltage is This guide is available at no charge by contacting Anton/Bauer at abnormally high or low and if the temperature of the battery 1-800-422-3473 or 203-929-1100 or fax 203-929-9935. It can also...

  • Page 8: Limited Warranty

    Product THIS PRODUCT MUST BE REGISTERED WITH ANTON/BAUER WITHIN with any charging device or accessory not manufactured by and/ 30 DAYS OF PURCHASE TO ASSURE WARRANTY COVERAGE. TO or specified by Anton/Bauer. This warranty does not cover, and REGISTER YOU MAY EITHER: Anton/Bauer assumes no responsibility for, any equipment or devices used in conjunction with the Product.
  • Page 9 Organization (ICAO) rules apply to all lithium ion battery transport. AIR TRANSPORTATION DECLARATION Anton/Bauer, Inc. declares that the Dionic HC lithium ion battery pack is rated 91 Wh and contains equiva- lent lithium content (ELC) in a quantity not exceeding 8 grams. This quantity is compliance with IATA/IACO Dangerous Goods regulations Packing Instruction 965 (Special packaging required.) and DOT Dangerous Goods Regulations 49CFR Parts 100-185.
  • Page 10 Approved Copy The following are trademarks of Anton/Bauer, Inc.: Anton/Bauer, Anton/Bauer logo and parallelogram design, Aspekt, Automatique, DataTap, DIONIC, Elipz, Egripz, Elightz, Essentialz, Gold Mount, HubZ, HyTRON, Impac, Interactive and design, LifeSaver, Logic Series, Logic Series Logo, Maxx man logo design, Nexus, PowerStrap, Proformer, Probe, ProPac, RealTime, Satellight, Snap-On, Stasis, Stasis Flex, Tandem, TrimPac, Ultrakit, Ultralight, “One World.
