Anton/Bauer InterActive 2000 Owner's Manual
Battery system; lithium ion digital battery
Hide thumbs
Also See for InterActive 2000:
- Owner's manual (24 pages) ,
- User manual (24 pages) ,
- Operating instructions (3 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Anton/Bauer InterActive 2000
Summary of Contents for Anton/Bauer InterActive 2000

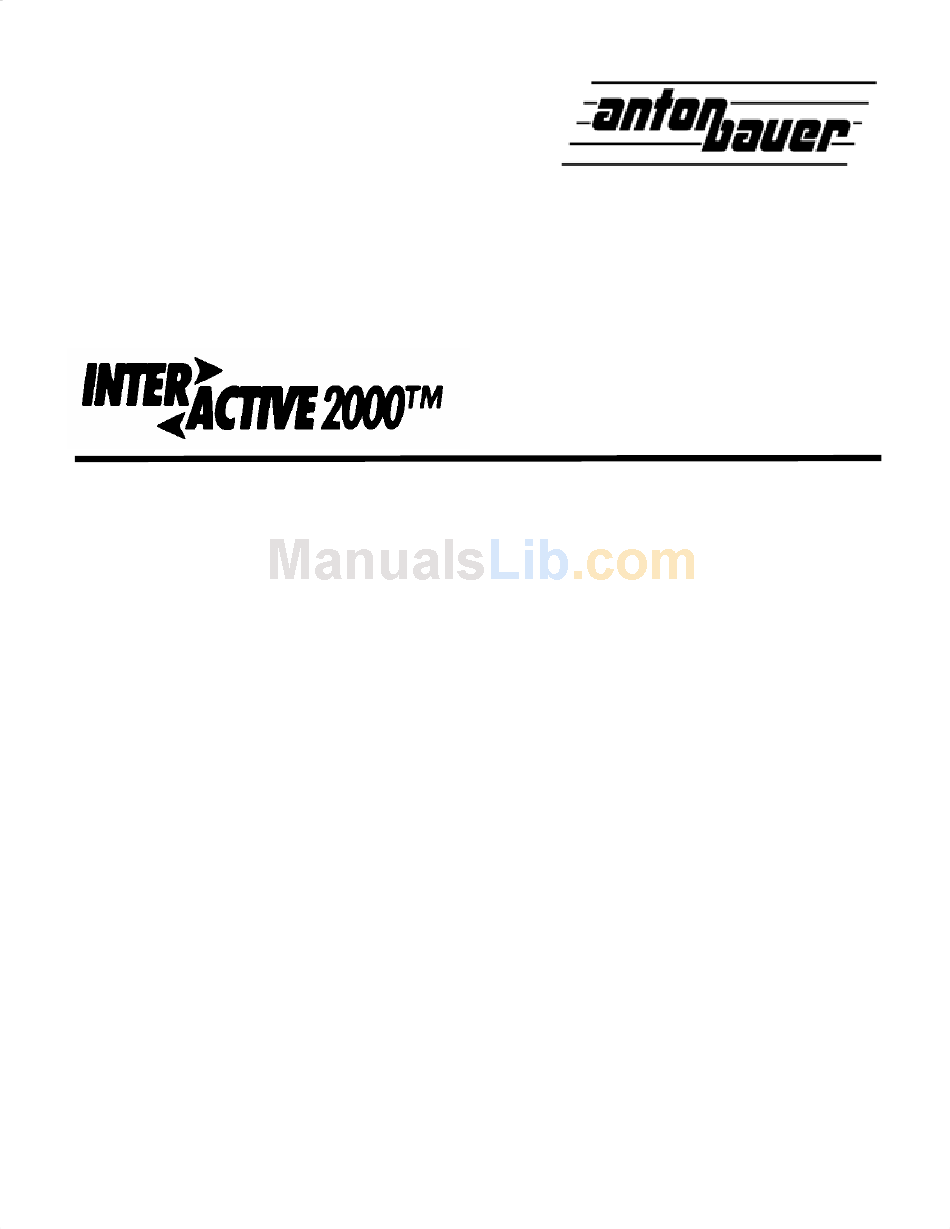

- Page 1 ® BATTERY SYSTEM DIONIC ® lithium ion Digital Battery OWNER’S MANUAL...
-
Page 2: Table Of Contents
NOMINAL CHARGE TIMES FOR DIONIC 90... 5 ® RealTime Display Indications ... 9 OPERATING GUIDELINES ... 11 SERVICE... 13 PRECAUTIONS ... 14 DIONIC 90 BATTERY SPECIFICATIONS... 15 WARRANTY – InterActive 2000™ Dionic 90 Battery: ... 16 TRANSPORTATION NOTICE: ... 17... -
Page 3: Before Operation
ANY charger, which cannot properly address the battery communication. This DIONIC 90 battery, because of its lithium ion chemistry, is unlike other video batteries you may have used. Special precautions and handling instructions are contained in this manual and should be strictly adhered to for safe and reliable operation. -
Page 4: Introduction
INTRODUCTION The development of this new DIONIC 90 battery system has been made possible through the incorporation of the pioneering InterActive technology of the Anton/Bauer Digital system with the very latest lithium ion cell formulations. Each DIONIC 90 battery features an on-board “fuel computer”... -
Page 5: Features
6. Individual Computer Testing – As with all Anton/Bauer batteries, each and every InterActive 2000 DIONIC 90 battery is individually tested to assure optimum capacity, voltage and overall quality. A serialized computer performance graph as confirmation of this testing is enclosed. -
Page 6: Charging Dionic 90 Batteries
Dionic 90 battery may be removed from the charger and discharged in either condition. •The Dionic 90 battery can remain on the charger until just prior to being used. The LifeSaver (STEADY GREEN charger LED indication) maintenance routine keeps the battery charged and ready for use. If the battery will not be used for an extended period (more than 60 days) see “Operating Guidelines”... -
Page 7: Nominal Charge Times For Dionic 90
NOMINAL CHARGE TIMES FOR DIONIC 90 Charge Level LED Indicators Dual 2722 (2 batteries simultaneously) InterActive 2000 PowerCharger (Quad/Dual – 2702/2701/2700) (Quad/Dual – 2401/2400) T2 (2 batteries simultaneously) Tandem 70 Twin (2 batteries simultaneously) TWQ (4 batteries simultaneously) Charge time can vary depending on age, condition and remaining capacity of each battery at the time it is placed on the charger. - Page 8 RealTime automatically calculates the load and displays capacity information and battery status at all times. Special electronics protect the lithium ion cells in the DIONIC 90 battery from damage and to ensure safe operation. These electronics work in conjunction with the Digital Battery electronics and will give the operator additional indications in the RealTime display of the battery’s status as...
- Page 9 “INTERACTIVE” SEGMENT: When illuminated, it indicates the DIONIC 90 battery has completed its full charge routine. “RES” Bar: Is the last “Fuel Gauge” Bar and will start to flash at 6% capacity and will continue to flash until EOD is reached.
- Page 10 The battery will operate perfectly normal while awaiting a “learning” cycle. Rather than relying on an “assumed” capacity, as with some imitation fuel gauges, the DIONIC 90 battery relies on the Digital Battery electronics to update capacity information as the battery sees different operating conditions and ages normally.
-
Page 11: Realtime Display Indications
LCD will flash at a once per second rate. This can occur, for example, if a cold halogen light =/>75 watts is turned on. When the over-load condition is removed, the display will return to normal. If the DIONIC 90 battery is... -
Page 12: Lcd Icons
• When the battery is completely discharged the LCD will flash the 15 minute icon and the ‘RES’ bar until the battery is returned to a charger. • If the protection electronics detect a low battery voltage condition (any one cell reaches roughly 2.5Vdc or approximately 10V battery voltage), the LCD sidebars will flash until the battery is returned to a charger. -
Page 13: Operating Guidelines
3. DO NOT LEAVE A BATTERY ATTACHED TO A CAMERA/CAMCORDER during transit or storage. “Keep warm” circuitry in the camera can drain the battery, because the DIONIC 90 battery has specialized circuits which will not allow a battery to over... - Page 14 Anton/Bauer publishes a comprehensive “Video Battery Handbook” to help you further understand the care and use of video batteries. This guide is available at no charge by contacting Anton/Bauer at 1-800-422-3473 or 203-929-1100 or fax 203-929-9935. It can also be downloaded from the...
-
Page 15: Service
In the event a DIONIC 90 battery fails to deliver acceptable performance, it must be returned to the Anton/Bauer. No other facility is qualified and equipped to service the InterActive 2000 DIONIC 90 batteries and calibrate the electronic components and sensors. Any attempt by the user or any other unauthorized... -
Page 16: Precautions
PRECAUTIONS Do not expose this battery to high temperatures (above 50°C/120°F). This includes storage in direct sunlight , in cars in hot weather, or in close proximity to heating devices. This may cause electrolyte leakage, impaired performance and shortening of battery service life. When not using the battery for prolonged periods, the DIONIC 90 battery should be charged to approximately 50% capacity and removed from the charger. -
Page 17: Dionic 90 Battery Specifications
DISCHARGE TEMPERATURE STORAGE TEMPERATURE DIONIC 90 may be used to power both camera and on camera light however its maximum cold halogen lighting load is restricted to 50 watts. Routine use of a battery at discharge rates greater than the recommended operating range can reduce overall service life. -
Page 18: Warranty - Interactive 2000™ Dionic 90 Battery
Center or to the address above. Upon receipt of the Product and a record of your compliance with the conditions of this warranty, Anton/Bauer will repair or replace the Product and return it to you, or issue a credit, as applicable. You are responsible for all shipping and handling charges to and from authorized facility. -
Page 19: Transportation Notice
8 grams. This quantity is in compliance with section ICAO/IATA Special Provision A45 and US 49 CFR (Hazardous Material Regulation). The Dionic 90 battery pack thus is excepted by definition and therefore is suitable for air transport as a non-hazardous article. International... - Page 20 The power behind the best cameras capturing the best images in the world. The following are trademarks of Anton/Bauer, Inc.: ACS, ADM, All Chem, Anton/Bauer, Anton/Bauer logo and parallelogram design, Automatique, Egripz, Elightz, Elipz, Essentialz, DataTap, Dionic, Gold Mount, HyTRON, Impac, InterActive and...
