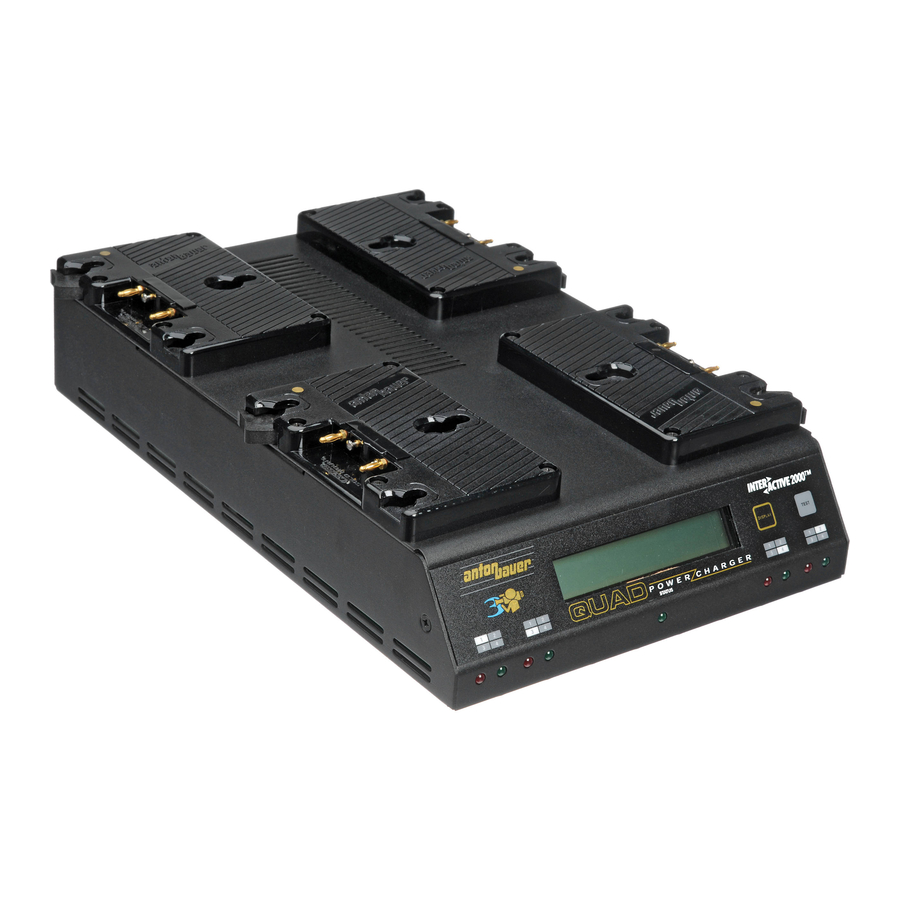

PowerCharger
DUAL and QUAD
2400 and 2700 series
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the InterActive 2000 PowerCharger and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anton/Bauer InterActive 2000 PowerCharger

Summary of Contents for Anton/Bauer InterActive 2000 PowerCharger

  • Page 1 ® PowerCharger DUAL and QUAD 2400 and 2700 series OWNER’S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..................... 1 STANDARD FEATURES................. 1 EXPANSION OPTIONS .................. 2 SAFEGUARDS ....................3 GROUNDING/EARTHING................3 FUSE TYPE/REPLACEMENT................. 3 OPERATION....................3 Self-Test ....................... 3 Charging....................... 4 Applications ....................4 Three Stage Charging Methodology ............5 LCD Indications .................... 6 LED Indications ....................

  • Page 3: Introduction

    Fully compatible with all current and future Anton/Bauer Logic Series Gold Mount batteries, the InterActive 2000 system is a totally new modular platform. PowerChargers deliver all the advancements and proven reliability of InterActive charging, plus the ability to power a camera from AC mains.

  • Page 4: Expansion Options

    EXPANSION OPTIONS The exclusive modular design of the new Anton/Bauer InterActive 2000 PowerCharger provides ultimate flexibility for all video operations. Starting with any base model, a wide range of expansion modules and upgrades can be added: diagnostic/discharge functions, charge position expansion, and power supply modules. All this is as easy as installing a memory or peripheral addition to a computer.

  • Page 5: Safeguards

    SAFEGUARDS Power Sources: This unit was designed to operate at mains voltages from 90 to 250 Volts AC, 50-60 Hz. Risk of Electrical Shock: Refer servicing to qualified service personnel. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

  • Page 6: Charging

    Charging As with all Anton/Bauer chargers, charging with an InterActive 2000 PowerCharger is fully automatic. Mount any applicable battery to any open Gold Mount position on the charger or charge expansion module and the PowerCharger will automatically determine the appropriate charge routine and execute it.

  • Page 7: Three Stage Charging Methodology

    Stage Two is indicated by the LCD displaying “Ready (Secondary)”. 3. Stage Three charging is the Anton/Bauer exclusive Lifesaver maintenance mode. This patented pulse routine keeps batteries fully charged, free from self- discharge - indefinitely - without damaging heat associated with so-called “trickle charge”.

  • Page 8: Lcd Indications

    NOTE: Anton/Bauer strongly recommends that batteries are kept on the PowerCharger until ready for use. The Lifesaver mode will keep them 100% charged and ready for use. LCD Indications Each PowerCharger’s liquid crystal display (LCD) will display the status of each battery, as well as, important PowerCharger operating indications.

  • Page 9: Led Indications

    (<11V) battery will cause this indication to continue until the battery is “rejuvenated” to a safe charging voltage. NOTE: This indication will continue if a non-Anton/Bauer Logic Series battery is mounted on the charger. These batteries cannot identify themselves to the PowerCharger and will not be charged.

  • Page 10: Priority Battery Function

    Priority Battery Function A unique operating feature of all PowerChargers allows the operator to select any battery on any charge position as a PRIORITY BATTERY. While connecting a battery to any charge position, hold the DISPLAY button until an audible indication sounds and the LCD indicates: PRIORITY BATTERY The PowerCharger will interrupt the charging of any other battery and address the...

  • Page 11: To Operate The Powercharger With Ddm

    Anton/Bauer battery before recharging. PowerCharger’s charging routines and the high voltage design of the Anton/Bauer batteries precludes the problems which old 12 volt batteries had in the past. Don’t waste battery life on unnecessary testing. To Operate The PowerCharger with DDM 1.

  • Page 12: Autocal" Feature

    When testing is completed, the LCD Main Display will indicate “TEST DONE”. To display or print test results: 1. Press the DISPLAY button on the PowerCharger front panel to scroll to the Primary Position Display for the battery tested. 2. Press the TEST button. The LCD will display the capacity of the battery in ampere hours.

  • Page 13: Xm Charge Expansion Module

    XM CHARGE EXPANSION MODULE The “XM” charge expansion modules easily attach to any model PowerCharger via the 9- pin D-shell computer style connector marked “CHARGE MODULE ACCESSORY”. These economical modules automatically expand the PowerCharger’s charging capabilities with additional positions. The XM-2002 or XM-2004 modules allow the charging of two or four additional Logic Series batteries.

  • Page 14: Power Loss Memory Mode

    POWER LOSS MEMORY MODE The PowerCharger features a special Power Loss Memory or “Power Down” mode. When mains power is interrupted while batteries are mounted, the PowerCharger will automatically indicate the charge status of all batteries until power is restored (up to 16 hours).

  • Page 15: Warranty

    (3) years from date of purchase. If this product fails to perform to its specifications during this period, it will be repaired or replaced at Anton/Bauer’s option. This Warranty does not cover damage resulting from accident, misuse, neglect, or improper service or maintenance.
  • Page 16 The power behind the best cameras capturing the best images in the world. The following are trademarks of Anton/Bauer, Inc.: ACS, ADM, Anton/Bauer, Anton/Bauer logo and parallelogram design, Aspekt, Automatique, DataTap, Dionic, ElipZ, ElightZ, EgripZ, Gold Mount, HyTRON, Impac, InterActive and design, LifeSaver, Logic Series, Logic Series logo, Maxx man logo design, MicroCode, PowerStrap, Probe, Proformer, ProPac, RealTime, SSP, Satellight, Snap-On, Stasis, Tandem, TrimPac, Ultrakit, Ultralight, “The power...
