Installation

3 Installation

3.1 Safety Instructions

3 3
See chapter 2 Safety for general safety instructions.

3.2 Mounting

1. Check whether the fieldbus option is already
mounted in the frequency converter. If already
mounted, go to step 6.
2. Remove the LCP or blind cover from the
frequency converter.
3. Use a screwdriver to remove the front cover and
the LCP cradle.
4. Mount the fieldbus option. Mount the option
with the Ethernet port facing up for top cable
entry (see Illustration 3.2).
5. Remove the knock-out plate from the new LCP
cradle.
6. Mount the new LCP cradle.
2
1
1 LCP
2 LCP cradle
3 Fieldbus option

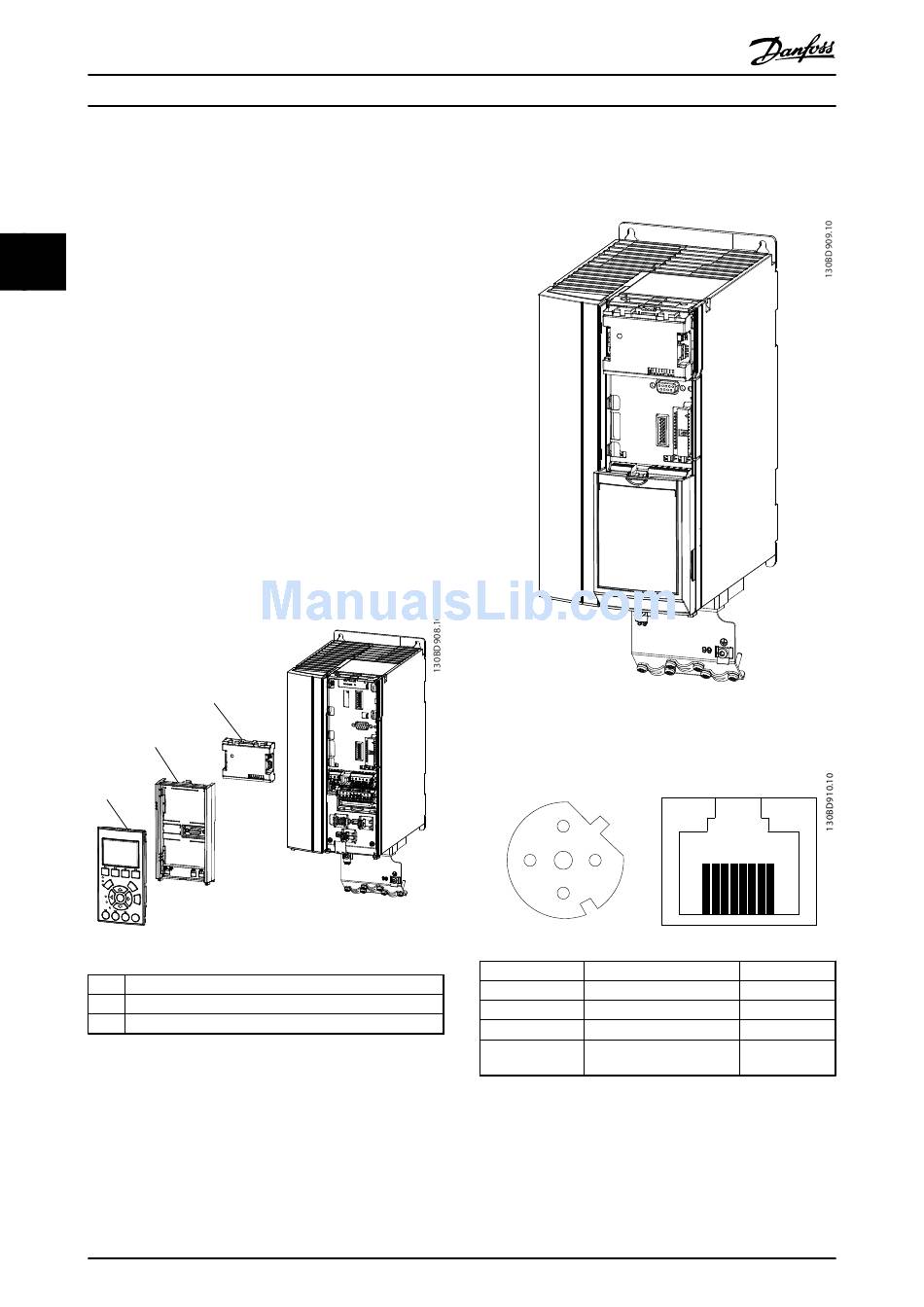

Illustration 3.1 Exploded View
6
Installation Guide
3
Danfoss A/S © Rev. 07/2014 All rights reserved.
Illustration 3.2 Option Mounted with the Ethernet Port Facing
Upwards
M12 PIN#
1
4 2
3
Signal M12 PIN#
RX + 1
TX + 2
RX - 3
TX - 4
Illustration 3.3 PROFINET Connectors
RJ 45
8 . . . . . . 1
RJ 45
1
3
2
4
