2.6

Atmel STK521 headers

Headers are populated for both high voltage programming purpose as well as for port connection to
LEDs or switches.

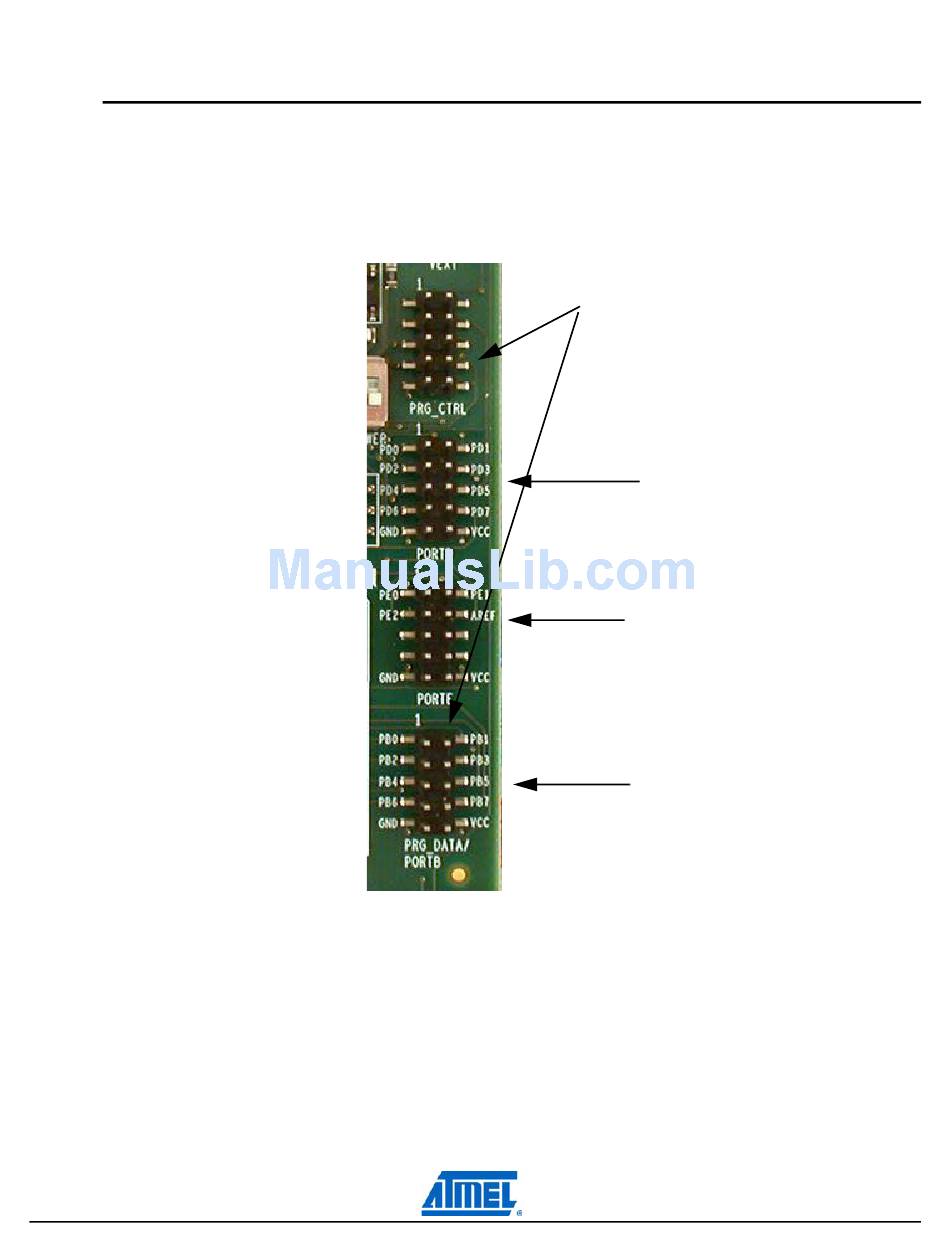

Figure 2-7. STK521 port headers.
STK521 User Guide
High Voltage
Programmming
Interface
Port D header
Port E header
Port D header
2-10
8194B–AVR–01/12
