Install and validate the BD Accuri ™ C6 Flow Cytometer with 6- and 8-peak beads prior to installing the BD
CSampler.
Inspect the BD CSampler Accessory Kit contents to ensure delivery of all components.
BD CSampler
SIP Collar
Tool
Bolts
1. Shut down the BD Accuri C6.
2. Unscrew the BD Accuri C6 SIP collar, remove the sample stage and install the Low-Profile BD CSampler SIP collar (Figures
1 - 3). The low-profile BD CSampler SIP collar ensures that collisions do not occur during operation of the BD CSampler.

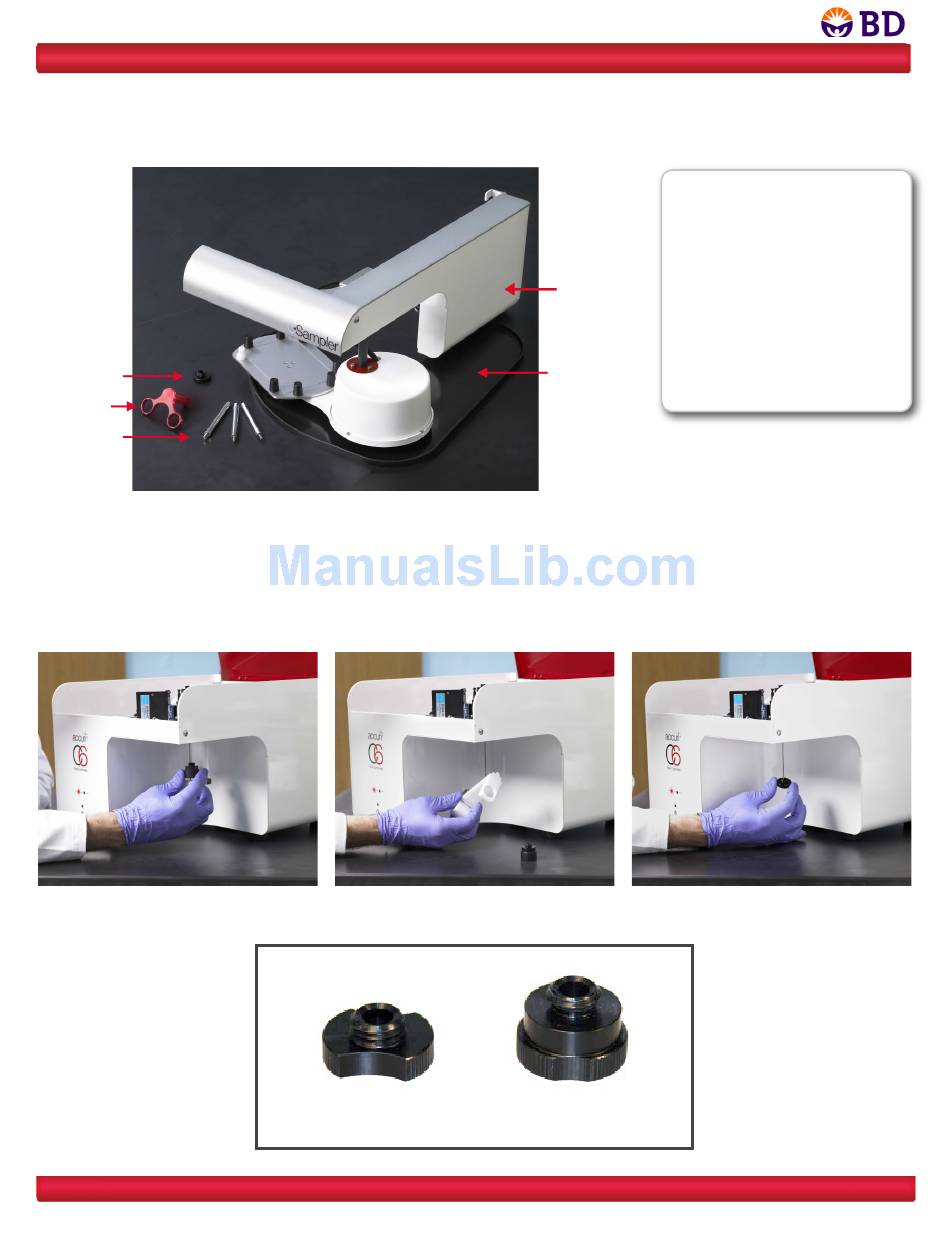

Figure 1
www.AccuriCytometers.com For Research Use Only. Not for use in diagnostic procedures. Class 1 Laser Product 7820020 Rev-3
BD CSampler™ Installation Guide
BD CSampler Accessory Kit
Low-Profile BD CSampler
SIP collar
BD CSampler
Module
Mat
Figure 2
BD C6 SIP collar
BD CSampler Accessory Kit
Shipping Contents
•
BD CSampler Module
•
BD CSampler Mat
•
Mounting Bolts (3)
•
Installation and Removal Tool
•
BD CSampler SIP Collar
•
BD CSampler Software CD
(not shown)
•
24-tube rack
(not shown)
WARNING
Failure to shut
down the BD Accuri C6 during BD
CSampler installation could result in
damage to either or both electronic
modules.
Figure 3
