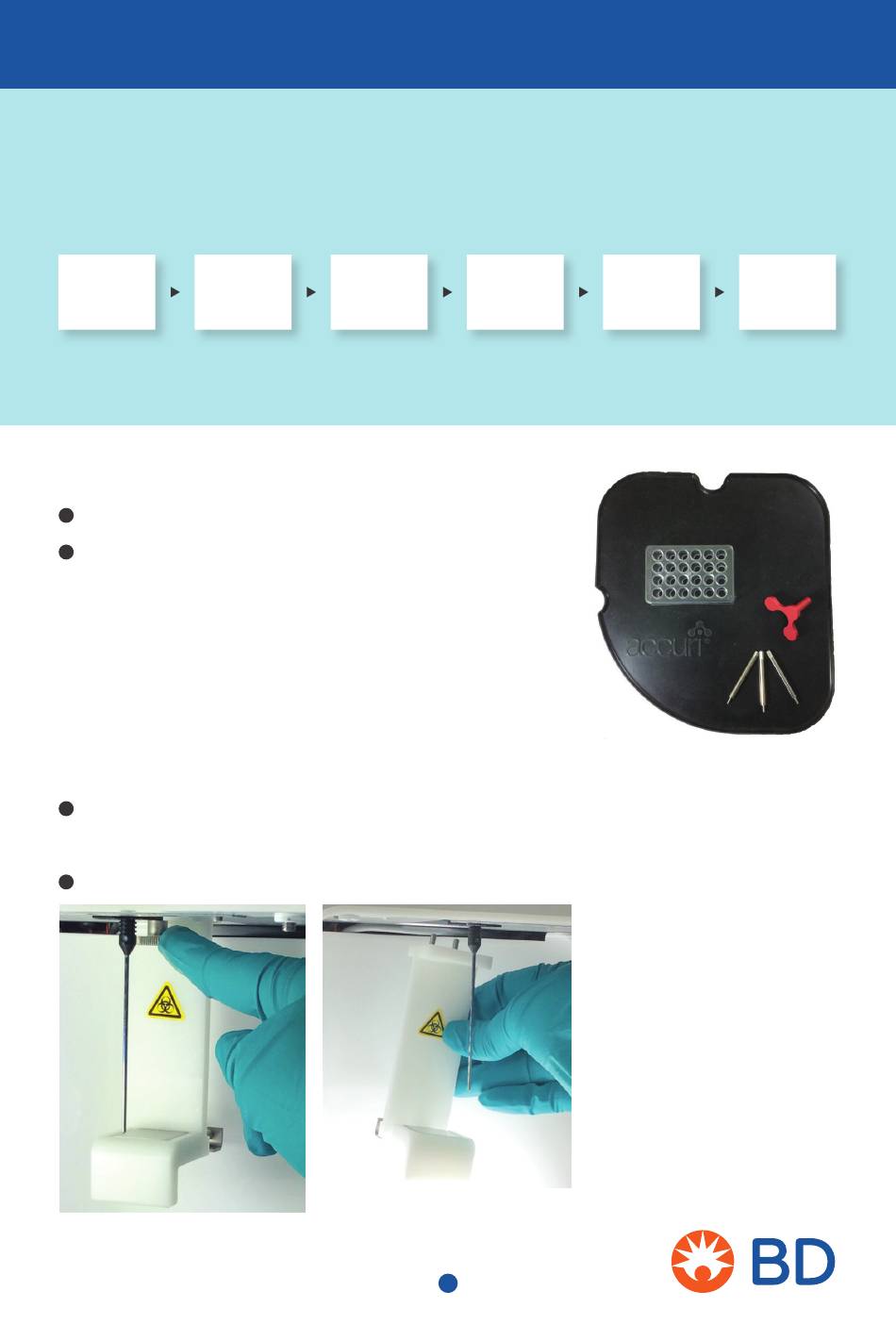

This guide contains instructions for installation of the BD CSampler™ Plus.
Installation Overview
The following figure shows steps for installation of the BD CSampler Plus.
Install
Validate
cytometer
cytometer
Before You Begin
Install and validate the BD Accuri™ C6 Plus flow cytometer.
1

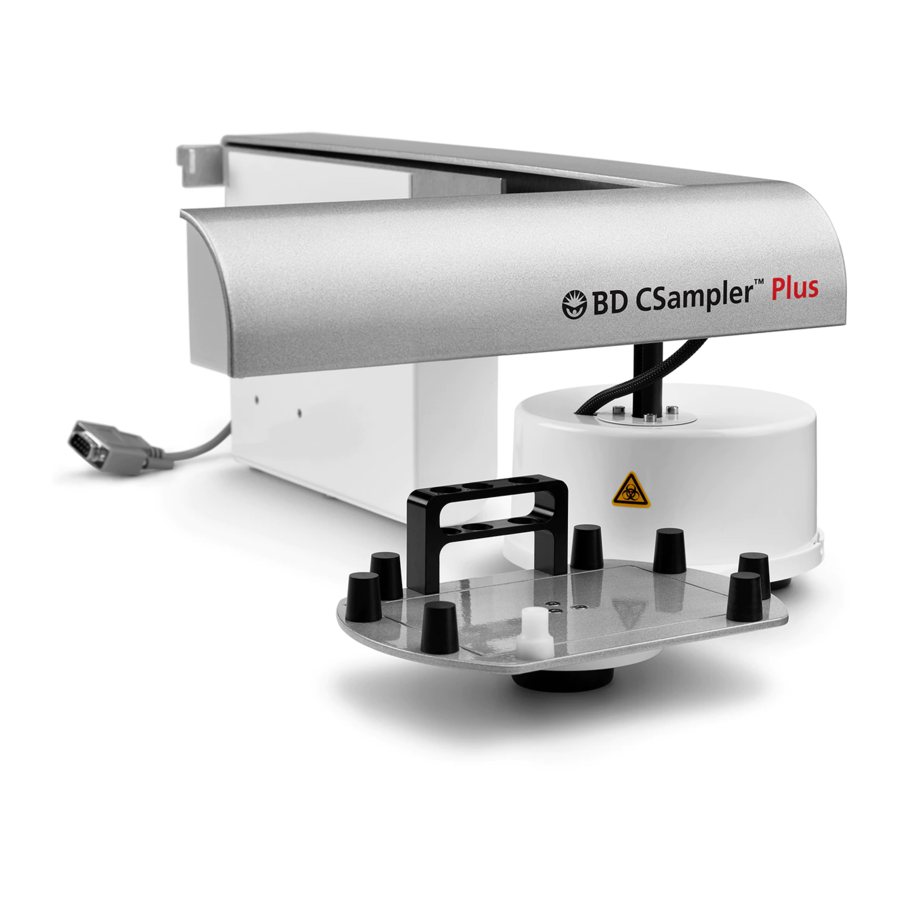

Inspect the BD CSampler Plus accessory kit contents to ensure delivery of all
2
components. In addition to the BD CSampler Plus module, the box should also
contain the following.
• BD CSampler Plus module
• BD CSampler Plus mat
• Mounting bolts (3)
• Installation and removal tool
• 24-tube rack
• BD Accuri C6 Plus and BD CSampler Plus Software and Documentation CD
(not pictured)
Preparing the Cytometer
Shut down the cytometer.
1
WARNING
Failure to power off the cytometer before installing the BD CSampler Plus could damage the
BD Accuri C6 Plus or the BD CSampler Plus or both.
Loosen the thumb screw and remove the sample stage.
2
Class 1 Laser Product.
For Research Use Only. Not for use in diagnostic or therapeutic procedures.
© 2016 BD. BD, the BD Logo and all other trademarks are property of
Becton, Dickinson and Company.
23-18172-00
Plus Installation Guide
™
Inspect
Prepare
BD CSampler
cytometer
Plus
1
Install
Install
BD CSampler
software
Plus
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BD CSampler Plus
Summary of Contents for BD CSampler Plus
- Page 1 Shut down the cytometer. WARNING Failure to power off the cytometer before installing the BD CSampler Plus could damage the BD Accuri C6 Plus or the BD CSampler Plus or both. Loosen the thumb screw and remove the sample stage.
- Page 2 Open the lid of the cytometer and locate the three holes used to mount the BD CSampler Plus. Bolt Holes Hold the BD CSampler Plus module with both hands and locate the tab in the slot on the back of the cytometer. Tab Slot Class 1 Laser Product.
- Page 3 Align the front of the BD CSampler Plus so that the holes on the module are lined up with the three threaded holes in the cytometer. Hold the module with one hand and screw in the front right mounting bolt to secure the BD CSampler Plus to the cytometer, tightening with the tool provided.
- Page 4 Place tubes filled with the appropriate cleaning fluid in the correct positions on the black tube rack located at the back of the BD CSampler Plus tray. You may need to gently manipulate the tray to gain access to the rack.
