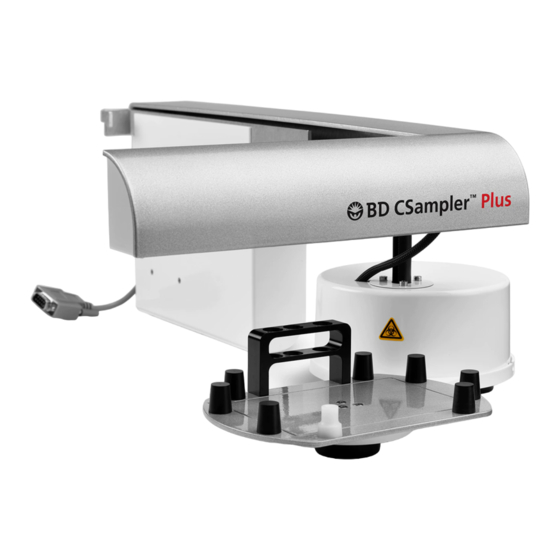

BD CSampler™ Plus Accessory Installation Quick Reference Guide
This guide contains instructions for installation of the BD CSampler™ Plus Accessory for the BD Accuri™ C6 Plus Cytometer.
Installation Overview
Install
Validate
cytometer
cytometer
Before You Begin
1
Install and validate the
Inspect the BD
CSampler™
2
components. In addition to the BD
contain the following:
• Mat from BD
CSampler™
• Mounting bolts (3)
• Installation and removal tool
• 24-tube rack
• BD Accuri™ C6 Plus and BD CSampler™ Plus Software and Documentation USB
(not pictured)
Preparing the Cytometer
Shut down the cytometer.
1
WARNING
Failure to power off the cytometer before installing the BD CSampler™ Plus Accessory could damage the
BD Accuri™ C6 Plus Module, or both.
2
Loosen the thumb screw and remove the sample stage.
Inspect
accessory
BD Accuri™ C6 Plus Flow
Cytometer.
Plus Accessory Kit contents to ensure delivery of all
CSampler™
Plus Module, the box should also
Plus Kit
Prepare
cytometer
accessory
1
Install
Install
software
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BD CSampler Plus
Summary of Contents for BD CSampler Plus
- Page 1 BD CSampler™ Plus Accessory Installation Quick Reference Guide This guide contains instructions for installation of the BD CSampler™ Plus Accessory for the BD Accuri™ C6 Plus Cytometer. Installation Overview Install Validate Inspect Prepare Install Install cytometer cytometer accessory cytometer accessory...
- Page 2 Installing the BD CSampler™ Plus Accessory Module Before attaching the module, lower the sampler tray to the lowest position. WARNING Not lowering the tray could result in damage to the sample injection tube (SIT). Open the lid of the cytometer and locate the three holes used to mount the module.
- Page 3 Hold the module with both hands and locate the tab in the slot on the back of the cytometer. Tab Slot Align the front of the module so that the holes on the module are lined up with the three threaded holes in the cytometer. Hold the module with one hand and screw in the front right mounting bolt to secure the module to the cytometer, tightening with the tool provided.
- Page 4 You might need to gently manipulate the tray to gain access to the rack. Location Description Tube A Place a tube containing 2 mL of BD FACSClean™ Solution in this location. Used for the first tube in a SIP Clean. Tube B Place a tube containing 2 mL of DI water in this location.
- Page 5 Turn on the instrument. The BD CSampler™ Plus Module will automatically align itself. If the auto alignment fails, follow the instructions in the BD Accuri™ C6 Plus System User’s Guide regarding aligning the BD CSampler™ Plus Module after a collision.
