Speco O2MT61B User Manual

Full hd mini-turret ip camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
O2MT61
Full HD Mini-Turret IP Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O2MT61B and is the answer not in the manual?

Questions and answers

Related Manuals for Speco O2MT61B

Summary of Contents for Speco O2MT61B

  • Page 1 O2MT61 Full HD Mini-Turret IP Camera...
  • Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the device out of reach from children. Do not disassemble the camera. No after service is assumed when disassembled. Use only power adapters compatible with the unit. Be careful to prevent moisture or water penetration into the unit.
  • Page 3 ’ ’ Revision History Date Revision Details Mar 4 , 2014 First manual revision creation. Mar 7 , 2014 Text revisions Modified “2.3.3. Front and Rear view of Encoder box” Apr 25 , 2014 Rev.1.2 (Apr. 2014)

  • Page 4: Table Of Contents

    4.2. Quick Installation Guide .......................... 14 4.2.1. Connect PC and O2MT61 to network..................14 4.2.2. Install Speco-NVR and set IP parameters on O2MT61 ............... 15 4.2.3. Remote video connection to O2MT61 ..................17 4.2.4. Additional settings through connection to the Admin Page ............19 Trouble Shooting ............................

  • Page 5: Introduction

    ’ ’ 1. Introduction 1.1. Overview The O2MT61 is a full HD mini bullet IP camera with a separate encoder box. It is a multi-codec (H.264, MJPEG) IP camera (or network camera) built with embedded software and hardware technology. It enables real time transmission of synchronized video of up to 1080P and audio data.

  • Page 6: Specifications

    Network Protocol - RTP, RTSP, SDP, HTTP, SMTP, FTP, DHCP, UPnP - NTP, DNS, DynDNS Dynamic IP Speco DDNS (free of charge) - User ID & Password protection, IP address filtering Security - Digest Authentication, User Access Log - RTSP streaming with proprietary format for control informations...

  • Page 7: Applications Of O2Mt61

    Alarm Events Video file upload(FTP), Still Image transmission(Email), Relay output Alarm Buffer (Audio/Video) Configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec) Client Software Speco NVR Windows XP/Vista/7 (free of charge) Speco ONSIP Android™, iPhone® , iPad® (free of charge) Miscellaneous Operating Temperature 0C ~ 45C (32F~113F)

  • Page 8: Product Description

    Software & User’s Guide Quick Reference Guide Quick installation guide 2.2. Product Preview O2MT61 ONSIP Installer VMS Software (Speco NVR) PC software to view and record the A/V streaming data transmitted from Camera Module & PC software to allocate an IP IP camera.

  • Page 9: Physical Description

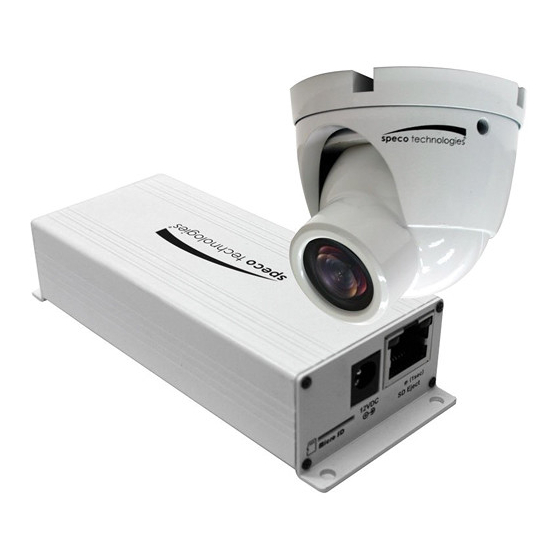

    ’ ’ 2.3. Physical description 2.3.1. External View Figure 2-1. External view of O2MT61 2.3.2. Dimensions Unit : mm Figure 2-2. Dimensions Rev.1.2 (Apr. 2014)

  • Page 10: Front And Rear View Of Encoder Box

    ’ ’ 2.3.3. Front and Rear view of Encoder box Description Line Output Ground MIC/Line Input Relay Output Relay Output Sensor Input (-) Figure 2-3. Front view Sensor Input (+) HDMI Connect Camera Module Figure 2-4. Rear view 2.3.4. Factory Default Switch Factory default switch is provided for returning the IP camera to factory default state.

  • Page 11: Functional Description

    ’ ’ 2.4. Functional Description  Power : Power input for supplying 12V DC power. Caution : If O2MT61 is powered by PoE, do not plug in DC Jack with active DC power into DC power connector.  Network (LAN) 100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af).
  • Page 12 ’ ’  Relay Output Relay output is provided for connecting alarm devices or for remote on/off control of devices such as light. Relay is normal open and it will be closed upon alarm annunciation or remote on. The relay is capable of switching 30V AC/DC, 2A.

  • Page 13: On Site Installation

    ’ ’ 3. On Site Installation Use cables and conduits that are suitable for the installation. Particular attention should be paid in the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the life time of the product.

  • Page 14: Getting Started

    ’ ’ 4. Getting Started Brief information for first time operation of O2MT61 is provided in this chapter. 4.1. PC Requirement Audio/Video streaming data received from O2MT61 can be displayed or stored in a PC running client programs. Minimum requirement of the PC is described below: ITEM Minimum Requirement Recommended Specification...

  • Page 15: Install Speco-Nvr And Set Ip Parameters On O2Mt61

    4.2.2. Install Speco-NVR and set IP parameters on O2MT61 Speco-NVR is a multi-channel VMS program for the IP camera. Install Speco-NVR on remote PC to connect to these products. It is needed to assign connection information to Speco-NVR program before connection.
  • Page 16 ’ ’ You can connect to admin page by clicking on (10). Click on the field in (3) for sorting and rearranging the list. Select network mode that best suits from the drop down list in (5). You can choose either Static or ADSL and Auto (DHCP), respectively.

  • Page 17: Remote Video Connection To O2Mt61

    Note : Active-X module should be installed on your PC before actual connection. If your PC is not connected to the internet, you cannot download Active-X module. Most convenient way of installing the Active-X module is installing Speco-NVR which is available from the CD or our web site.
  • Page 18 SAVE button. You can see the live video when you click the live view button as below. When you exit Speco-NVR, you have to input the ID/PW, admin/1234. Details for Speco-NVR can be found in [Speco-NVR User’s Guide].

  • Page 19: Additional Settings Through Connection To The Admin Page

    ’ ’ 4.2.4. Additional settings through connection to the Admin Page All parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through “http://IP_Address:Port_Number/admin.htm”...

  • Page 20: Trouble Shooting

    ’ ’ 5. Trouble Shooting 5.1. No power is applied  In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2.

  • Page 21: Cannot Connect To The Video

    ’ ’ 5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC : Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~”...

  • Page 22: Windows Vista Or Windows 7

    5.3. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in Speco-NVR and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”...
  • Page 23 ’ ’ <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting” 3) Set to “Never notify” Rev.1.2 (Apr. 2014)
  • Page 24 ’ ’ 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab Rev.1.2 (Apr. 2014)

  • Page 25: Technical Assistance

    ’ ’ 5.4. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5.

  • Page 26: Appendix A - Important Notice In Exchanging Sd Card (Micro Sd)

    ’ ’ Appendix A – Important Notice in Exchanging SD Card (Micro SD) SD Card is a non-volatile memory device for storing video and audio data on the product. Continued writing to the SD Card will cause wear-off of the memory cell. When you plug out the SD Card for replacement or other purpose, follow the steps below in order to prevent data loss or crash of the SD Card.
