Medeli Grand 510 Owner's Manual
  1. Manuals
  2. Brands
  3. Medeli Manuals
  4. Musical Instrument
  5. Grand 510
  6. Owner's manual

Medeli Grand 510 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

aw_Grand510_Manual_G03_180408.pdf 1 18/4/8 15:07
DIGITAL PIANO
C
M
Y
CM
MY
CY
CMY
K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Grand 510 and is the answer not in the manual?

Questions and answers

Related Manuals for Medeli Grand 510

Summary of Contents for Medeli Grand 510

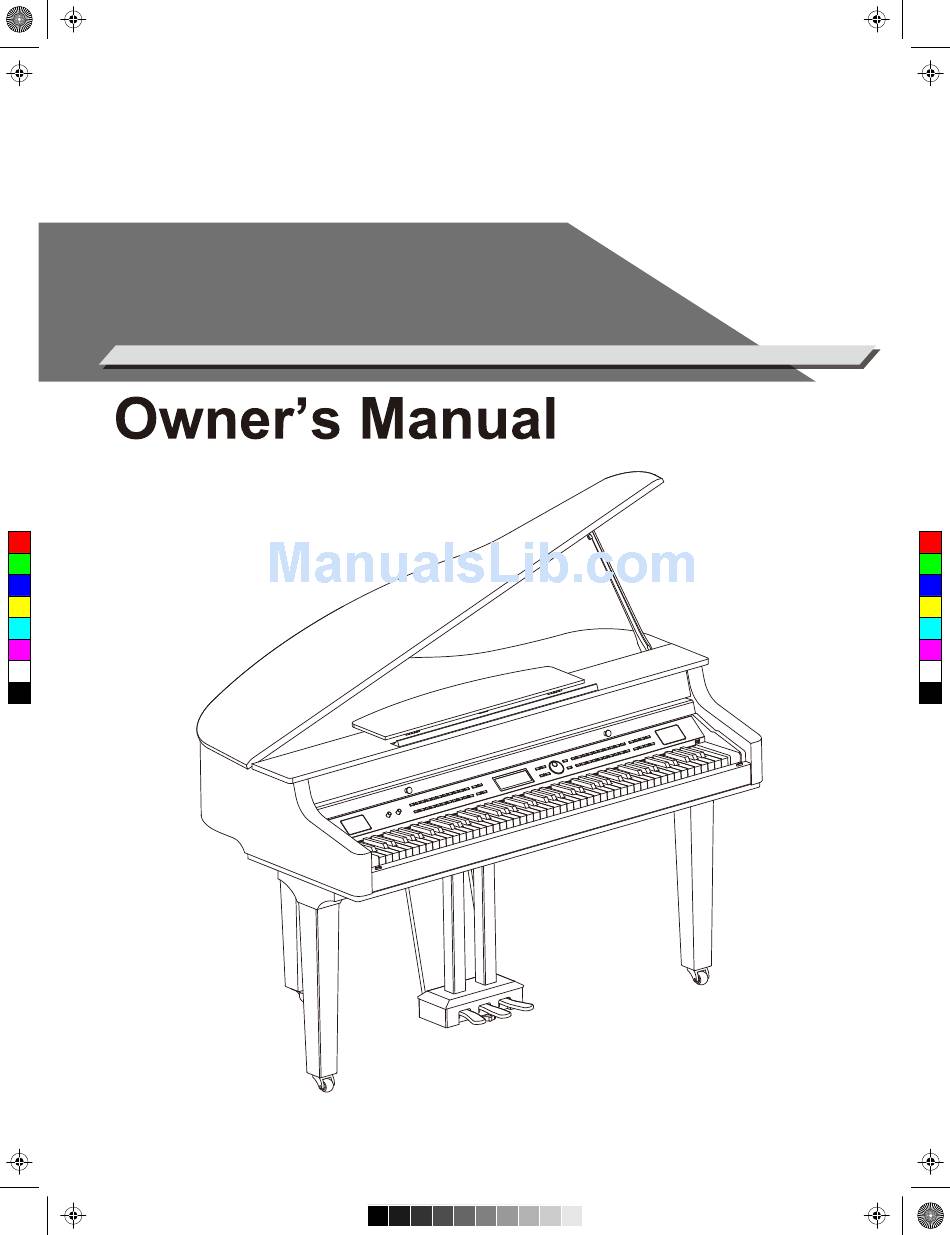

  • Page 1 aw_Grand510_Manual_G03_180408.pdf 1 18/4/8 15:07 DIGITAL PIANO...
  • Page 2 aw_Grand510_Manual_G03_180408.pdf 2 18/4/8 15:07 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS PLEASE READ CAREFULLY BEFORE PROCEEDING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Please keep this manual in a safe place for future reference.

  • Page 3: Table Of Contents

    aw_Grand510_Manual_G03_180408.pdf 3 18/4/8 15:07 Contents Setup Soft Pedal................28 Setup Guide................4 Freeze.................29 Metronome Beat..............29 Panel & Display Description Fade Time................29 Front Panel................9 MIDI Out Channel...............29 LCD Display.................10 Song Looping..............29 Auto Power Off..............29 Connections..............11 System Time...............30 Bluetooth Auto Link..............30 Power Supply..............13 Factory Reset..............30 Adjusting the Master Volume...........13 Performance Memory Registering the Panel Settings..........31...

  • Page 4: Setup

    aw_Grand510_Manual_G03_180408.pdf 4 18/4/8 15:07 Setup This section contains information about setting up your instrument and preparing to play. Please read through this section carefully before turning the power on. Setup Guide Before proceeding to assemble the stand, check that all the parts listed below are included: Pedal component Right leg component Left leg component...
  • Page 5 aw_Grand510_Manual_G03_180408.pdf 5 18/4/8 15:07 Setup Follow the steps below to assemble the stand. You will need a Phillip's screwdriver (not supplied). A. Reverse the carton upside down and then place it horizontally on the floor. (Make sure the bottom surface is on the upside.) Then open the box, and remove the foams which are used to protect the piano body, as shown in the picture.
  • Page 6 aw_Grand510_Manual_G03_180408.pdf 6 18/4/8 15:07 Setup B. Put the Left leg component (C) on the left side of the Piano body (E). Then align the sunken hole on the Leg component to that on the Piano body. Place a washer into this sunken hole, then use the Wrench (J) to securely tighten the Hexagonal bolt (G)(2 on each side) in clockwise direction, as shown in the picture.
  • Page 7 aw_Grand510_Manual_G03_180408.pdf 7 18/4/8 15:07 Setup C. Use Screws (H) to affix the two Copper poles (I) onto the back of the Pedal component (A), as shown in the picture. (Make sure the direction of the components is correct before screwing.) D.
  • Page 8 aw_Grand510_Manual_G03_180408.pdf 8 18/4/8 15:07 Setup E. Set the piano upright, as shown in the picture. Carefully reverse the piano. Avoid damaging any legs or the pedal component. At this point the Piano is fully assembled. CAUTION: Carefully reverse the piano. Avoid damaging any legs.

  • Page 9: Panel & Display Description

    aw_Grand510_Manual_G03_180408.pdf 9 18/4/8 15:07 Panel & Display Description Front Panel 1. [VOLUME] Knob 11. [MAIN B] Button Adjust the master volume. In style mode: play the Main pattern B. In song mode: play the current song in a loop. 2. [BRILLIANCE] Knob Adjust the brilliance.

  • Page 10: Lcd Display

    aw_Grand510_Manual_G03_180408.pdf 10 18/4/8 15:07 Panel & Display Description 21. [STYLE] Button 28. [BANK] Button 34. [DUAL] Button Press it to enter Style mode. Select a memory bank. Press it to turn the Dual function on or off. 22. [USB] Button 29.

  • Page 11: Connections

    aw_Grand510_Manual_G03_180408.pdf 11 18/4/8 15:07 Connections 1. PEDAL JACK 4. MIC Jack Connect the pedal component. Before connecting or disconnecting a microphone, set the master volume level to minimum. Plug the microphone 2. MIDI OUT, MIDI IN, MIDI THRU Jacks into the MIC jack, then adjust the master volume to an Use a standard MIDI cable to connect the MIDI OUT jack appropriate level.
  • Page 12 aw_Grand510_Manual_G03_180408.pdf 12 18/4/8 15:07 Connections Headphone Jack 1 Headphone Jack 2 9. PHONES Jack 10. USB Port Plug a pair of standard stereo headphones into the Connect a USB flash drive to the instrument to save the PHONES jack for private practice or late-night playing. data you’ve created to the USB flash drive.

  • Page 13: Power Supply

    aw_Grand510_Manual_G03_180408.pdf 13 18/4/8 15:07 Power Supply Before connecting the power supply, please set the [POWER] switch to “OFF” and set the master volume level to minimum. Connect the AC power cable to AC power supply jack on the rear panel. Plug the AC power cable into an appropriate AC outlet.

  • Page 14: Adjusting The Brilliance

    aw_Grand510_Manual_G03_180408.pdf 14 18/4/8 15:07 Adjusting the Brilliance Use the [BRILLIANCE] knob to adjust the overall brilliance level. The brilliance is set to medium by default. Rotate the knob clockwise to brighten the sound, or counter-clockwise to mellow the sound. Playing the Demos The instrument features several professional demos.

  • Page 15: Playing The Voices

    aw_Grand510_Manual_G03_180408.pdf 15 18/4/8 15:07 Playing the Voices The instrument features a variety of realistic voices. Please refer to the Voice List for details. Playing a Voice Enter the voice mode. Press the [VOICE] button or one of the VOICE select buttons to enter Voice mode.

  • Page 16: Playing Different Voices With Both Hands

    aw_Grand510_Manual_G03_180408.pdf 16 18/4/8 15:07 Playing the Voices Playing Different Voices with Both Hands The Lower function splits the keyboard into two areas so as to create different voices for each of your hands. The left hand voice is the lower voice “L”...

  • Page 17: Transpose

    aw_Grand510_Manual_G03_180408.pdf 17 18/4/8 15:07 Playing the Voices Transpose The transpose function allows the overall pitch of the instrument to be transposed up or down by a maximum of one octave in semitone steps. Enter the transpose setting interface. Press the [TRANSPOSE+] / [TRANSPOSE-] buttons to edit the transpose setting.

  • Page 18: Twinova

    aw_Grand510_Manual_G03_180408.pdf 18 18/4/8 15:07 Twinova The Twinova function splits the keyboard into two areas with the same pitch and voice, for the convenience of playing together with a friend or instructor. Turn on the Twinova function. Press the [TWINOVA] button to turn on the function. The default split point is E3.

  • Page 19: Auto Accompaniment

    aw_Grand510_Manual_G03_180408.pdf 19 18/4/8 15:07 Auto Accompaniment The auto accompaniment function puts a full backing band at your fingertips. All you have to do is to play chords with your left hand, and the accompaniment will automatically play along, following the chords you play.

  • Page 20: Cmy Accompaniment Variations

    aw_Grand510_Manual_G03_180408.pdf 20 18/4/8 15:07 Auto Accompaniment Accompaniment Variations Specially created variation patterns can be added into the accompani- ment, making your performance more professional and personalized. INTRO The Intro is the opening section of a song. When the Intro pattern is finished, it will automatically shift to the selected Main section.

  • Page 21: Adjusting The Tempo

    aw_Grand510_Manual_G03_180408.pdf 21 18/4/8 15:07 Auto Accompaniment Single Finger Single-finger makes it easy to produce major, seventh, minor and minor seventh chords by pressing a minimum number of keys on the auto accompaniment section. Multi-finger Multi-finger allows you to play chords in normal fingering. Try playing the 32 types of C chords listed on the right.

  • Page 22: One Touch Setting

    aw_Grand510_Manual_G03_180408.pdf 22 18/4/8 15:07 Auto Accompaniment One Touch Setting When One Touch Setting is switched on, you can instantly recall all auto accompaniment related settings including voice selection and digital effects, all with the single touch of a button. Turn on the One Touch Setting function. Press the [O.T.S.] button to turn on the function.

  • Page 23: Mixer

    aw_Grand510_Manual_G03_180408.pdf 23 18/4/8 15:07 Mixer The Mixer function allows you to separately adjust the volume of each track, so as to keep an appropriate volume balance. Enter the Mixer menu. Press the [MIXER] button to enter the Mixer menu. The LCD shows the current parameter.

  • Page 24: Dsp Effect

    aw_Grand510_Manual_G03_180408.pdf 24 18/4/8 15:07 DSP Effect The DSP effects will add ambiance and depth to your performance in a variety of ways. They can be set to simulate sound from a real environment, making your tone more crystal and strong, or even give you distortion for a rougher edge.

  • Page 25: Harmony

    aw_Grand510_Manual_G03_180408.pdf 25 18/4/8 15:07 Harmony The harmony function will automatically add harmony effect to the notes you play in the right hand area, enriching your performance with more harmonic expression. Playing with Harmony Press the [HARMONY] button to turn on the function. The button LED lights up.

  • Page 26: Function Menu

    aw_Grand510_Manual_G03_180408.pdf 26 18/4/8 15:07 Function Menu Enter the function menu. Press the [FUNCTION] button to enter the function menu. The LCD shows the current parameter. Adjust the settings. Use the data dial to select a parameter. Use the [+/YES]/[-/NO] buttons to change the setting of the selected item. Press [+/YES] and [-/NO] at the same time to restore the default setting.

  • Page 27: Tune

    aw_Grand510_Manual_G03_180408.pdf 27 18/4/8 15:07 Function Menu Tune This function adjusts the pitch of the entire keyboard in 2-cent incre- ments over a range of ±50 (100 cents). In the function menu, use the data dial to select “TUNE”. Use the [+/YES]/[-/NO] buttons to change the tune value. Octave This function will shift the pitch of the specified voice layer up or down by one octave.

  • Page 28: Harmony Type

    aw_Grand510_Manual_G03_180408.pdf 28 18/4/8 15:07 Function Menu Harmony Type In the function menu, use the data dial to select “HARMONY”. Use the [+/Yes]/[-/No] buttons to select a harmony type. Detailed harmony types: Harmony Type LCD Display Duet Duet Trio Trio Octave Octave Country Duet CountryDuet...

  • Page 29: Freeze

    aw_Grand510_Manual_G03_180408.pdf 29 18/4/8 15:07 Function Menu Freeze When Freeze function is in use, the selected parameter setting will remain unchanged when a performance memory is recalled. In the function menu, use the data dial to select “FREEZE”. Use the [+/YES]/[-/NO] buttons to select a parameter. Note: The setting will be usable only when Freeze function is in use.

  • Page 30: System Time

    aw_Grand510_Manual_G03_180408.pdf 30 18/4/8 15:07 Function Menu Bluetooth Auto Link This function decides whether Bluetooth connection is automatically linked or not. Once a Bluetooth device is successfully paired, it will automatically establish a connection when the device is within range. In the function menu, use the data dial to select “BLUETOOTH AUTO”.

  • Page 31: Performance Memory

    aw_Grand510_Manual_G03_180408.pdf 31 18/4/8 15:07 Performance Memory This function is designed to make your performance easy and efficient. It allows you to save virtually all panel settings to a single performance memory for instant recall. Note: To reset the performance memory to factory default, press and hold both the [STORE] and [M1] buttons, then turn on the power.

  • Page 32: Song Recording

    aw_Grand510_Manual_G03_180408.pdf 32 18/4/8 15:07 Song Recording You can record your performance in two ways: MIDI recording and Audio recording. MIDI Recording In MIDI recording, you can record and save your keyboard performance as a user song on the instrument. You can then play it back and save it to a USB flash drive.

  • Page 33: Audio Recording

    aw_Grand510_Manual_G03_180408.pdf 33 18/4/8 15:07 Song Recording Parameter LCD Display Range Record Type Setting Record Type: MIDI, MP3 MIDI Recording Channel 1 Ch1:R1 On, Off Ch2:R2 On, Off MIDI Recording Channel 2 MIDI Recording Channel 3 Ch3:L On, Off MIDI Recording Channel 4 Ch4:MIDI Ch4 On, Off MIDI Recording Channel 5...

  • Page 34: Song

    aw_Grand510_Manual_G03_180408.pdf 34 18/4/8 15:07 Song The instrument features several complete piano songs. Please refer to the Song List for details. Play the Songs Press the [SONG] button to enter Song mode. The LCD shows the current song number and name. Use the data dial or [+/YES]/[-/NO] buttons to select a desired song.

  • Page 35: Bluetooth

    aw_Grand510_Manual_G03_180408.pdf 35 18/4/8 15:07 Bluetooth Bluetooth Pairing The Bluetooth function is turned on by default, with details as below: Bluetooth Name: PIANO-AUDIO. You can pair the instrument with an external mobile device. After it is paired, the instrument will remember that device and automatically pair it when the mobile device is within range.

  • Page 36: Connecting Usb Flash Drive

    aw_Grand510_Manual_G03_180408.pdf 36 18/4/8 15:07 Connecting USB Flash Drive The instrument recognizes USB flash drives (32M to 128G) in FAT32 format. It does not support multi-partitioned USB flash drives. We recommend formatting the USB flash drive on the instrument before using. Note: A USB flash drive in FAT32 format supports up to 512 files under its root directory.

  • Page 37: Midi

    aw_Grand510_Manual_G03_180408.pdf 37 18/4/8 15:07 MIDI The MIDI function will expand your musical possibilities. What's MIDI? MIDI (short for Musical Instrument Digital Interface) allows a wide variety of electronic musical instruments, computers and other related devices to connect and communicate with one another. MIDI carries event messages that specify notation, pitch and velocity, controls signals for parameters such as volume, vibrato, audio panning, and programs change information to change the voice selections.

  • Page 38: Specifications

    aw_Grand510_Manual_G03_180408.pdf 38 18/4/8 15:07 Specifications Keyboard & Display Keyboard 88 Graded Hammer-Action Keys with Triple Sensors Touch Response 6 types, Off Display Multi-functional LCD Voices Polyphony (max.) Voices 1200 panel, 13 drum kits Layer Left, Right1, Right2 Split Duo (Twinova) Styles Styles 270 presets...
  • Page 39 aw_Grand510_Manual_G03_180408.pdf 39 18/4/8 15:07 Specifications Connections Interaction & Expansion USB MIDI, USB Audio, Bluetooth External Drive USB flash drive (128G max) Microphone YES (Mic effect:12 types) Phones 2 Standard Stereo Pedals Sustain, Soft, Sostenuto MIDI In, Out, Thru USB Audio & MIDI Input 2 Standard mono Output...

  • Page 40: Voice List

    aw_Grand510_Manual_G03_180408.pdf 40 18/4/8 15:07 Voice List Voice Name LCD Name Clavi 1 Clavi 1 Piano Wah Clavi 1 Wah Clavi 1 Acoustic Grand Piano 1 Grand Piano 1 Clavi 2 Clavi 2 Acoustic Grand Piano 2 Grand Piano 2 Wah Clavi 2 Wah Clavi 2 Bright Acoustic Piano (wide) 1 Bright Pno/Wide 1...
  • Page 41 aw_Grand510_Manual_G03_180408.pdf 41 18/4/8 15:07 Voice List Vintage Organ 2 Vintage Org 2 Chorus Accordion Chorus Accordion Detuned Church Organ 2 Det Church Org 2 Accordion 2 Accordion 2 Mellow Organ 1 Mellow Org 1 Accord It Solo 2 Accord It Solo 2 Mellow Organ 2 Mellow Org 2 Harmonica 1...
  • Page 42 aw_Grand510_Manual_G03_180408.pdf 42 18/4/8 15:07 Voice List Folk Guitar Folk Guitar Dark Overdrive Guitar Dark Over Gt Chorus Guitar 1 Chorus Guitar 1 Bright Overdrive Guitar Bright Over Gt Muted Guitar 1 Muted Guitar 1 Soft Overdrive Guitar Soft Over Gt Pedal Guitar Pedal Guitar Delay Overdrive Guitar...
  • Page 43 aw_Grand510_Manual_G03_180408.pdf 43 18/4/8 15:07 Voice List Rock Bass 2 Rock Bass 2 Arco Strings 1 Arco Strings 1 Bright Fretless Bass Brt Fret Bass String Ensembles 1 Str Ensembles 1 Overdriven Fretless Bass Over Fret Bass Choir Aahs 1 Choir Aahs 1 Distortion Fretless Bass Dist Fret Bass Voice Oohs...
  • Page 44 aw_Grand510_Manual_G03_180408.pdf 44 18/4/8 15:07 Voice List Aah & Contrabass Aah & Contrabass Tuba & Trombone Tuba & Trombone Harp & Contrabass Harp & Contrbs Soprano Sax & Trombone Sp Sax & Trb Dark Tremolo Strings Dark Trem Str Alto Sax & Trombone Alto Sax &...
  • Page 45 aw_Grand510_Manual_G03_180408.pdf 45 18/4/8 15:07 Voice List Brassband 2 Brassband 2 Bassoon Bassoon Brass Section 3 Brass Section 3 Sweet Flute Sweet Flute Dark Brass 1 Dark Brass 1 Piccolo Piccolo Synth Brass 1 Synth Brass 1 Clarinet & Sax Clarinet & Sax Bright Brass Section 1 Bright Brass 1 Sweet Pan Flute...
  • Page 46 aw_Grand510_Manual_G03_180408.pdf 46 18/4/8 15:07 Voice List Oboe & Ocarina Oboe & Ocarina Bright Hop Lead Bright Hop Lead BlowBott & Ocari Blown Bottle & Ocarina Wah Hop Lead Wah Hop Lead Shaku & Ocari Shakuhachi & Ocarina TremoloBauble Lead TreBauble Lead Lead &...
  • Page 47 aw_Grand510_Manual_G03_180408.pdf 47 18/4/8 15:07 Voice List Bright Bass Lead 2 Bright Bass Ld 2 Pan Pad 3 Pan Pad 3 Wah Bass Lead Wah Bass Ld New Age Pad 4 New Age Pad 4 Bright Delayed Lead Bright Delay Ld Itopia Pad 1 Itopia Pad 1 Soft Cry Eyes 1...
  • Page 48 aw_Grand510_Manual_G03_180408.pdf 48 18/4/8 15:07 Voice List Soft Bowed Pad 2 Soft Bowed Pad 2 Starship Starship Bright Metal Pad 1 Brt Metal Pd 1 Burst Noise Burst Noise Soft Metal Pad Soft Metal Pad Applause Applause Wah Metal Pad Wah Metal Pad Laughing Laughing Space Voice Metal Pad...
  • Page 49 aw_Grand510_Manual_G03_180408.pdf 49 18/4/8 15:07 Voice List Rhythm Box Tom Rhythm Box Tom 1052 Percussive Organ Percussive Organ Electric Drum Electric Drum 1053 Detuned Percussive Organ Detuned PercOrgan Reverse Cymbal Reverse Cymbal 1054 Percussive Organ 2 Percussive Organ 2 Standard Set 1 Standard Set 1 1055 Rock Organ...
  • Page 50 aw_Grand510_Manual_G03_180408.pdf 50 18/4/8 15:07 Voice List 1108 Cello Cello 1163 Blown Bottle Blown Bottle 1109 Contrabass Contrabass 1164 Shakuhachi Shakuhachi 1110 Tremolo Strings Tremolo Strings 1165 Whistle Whistle 1111 Pizzicato Strings Pizzicato Str 1166 Ocarina Ocarina 1112 Orchestral Harp Orchestral Harp 1167 FX 1 (rain) FX 1 Rain...

  • Page 51: Style List

    aw_Grand510_Manual_G03_180408.pdf 51 18/4/8 15:07 Style List Style Name Old Rock 8BEAT & 16BEAT Easy Rock 8Beat Pop 1 New Shuffle Pop Rock 1 Rock Hip Hop 8Beat Rock Rock&Roll 1 8Beat Ballad Rock Shuffle Pop Jazz Rock&Roll 2 8Beat 1 POP &...
  • Page 52 aw_Grand510_Manual_G03_180408.pdf 52 18/4/8 15:07 Style List Cha Cha 1 Gospel Swing Tikitikita Cha Cha 2 Piano Jazz Lambada Beguine 1 Smooth Jazz Pop Cha Cha 1 Beguine 2 Smooth Operator Pop Cha Cha 2 Rumba 1 Latin Jazz 1 Salsa 2 Samba 1 Big Band WALTZ &...

  • Page 53: Song List

    aw_Grand510_Manual_G03_180408.pdf 53 18/4/8 15:07 Song List English Name LCD Name Minuet In D Major Minuet in D Major FOLK & COUNTRY Inquietude Inquietude Red River Valley Red River Valley Italian Polka Italian Polka Troika Troika Moment Musical Moment Musical Oh! Susanna! Oh! Susanna! Prelude In C-Sharp Major Prelude in C-Sharp Maj...

  • Page 54: Chord List

    aw_Grand510_Manual_G03_180408.pdf 54 18/4/8 15:07 Chord List...

  • Page 55: Midi Implementation Chart

    aw_Grand510_Manual_G03_180408.pdf 55 18/4/8 15:07 MIDI Implementation Chart...
  • Page 56 aw_Grand510_Manual_G03_180408.pdf 56 18/4/8 15:07 Grand510_G03...
