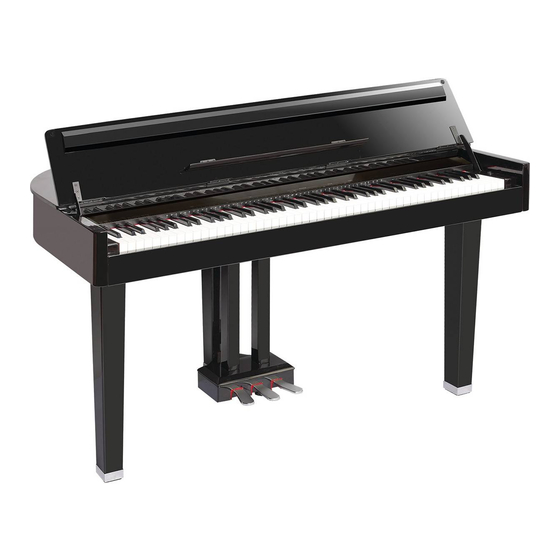

  • Page 1 AW_Grand200_Manual_G04_150803.ai 1 2015/8/3 9:46:12 AW_Grand200_Manual_G04_150803.ai 1 2015/8/3 9:46:12 Digital Grand Piano Owner’s Manual...
  • Page 2 AW_Grand200_Manual_G04_150803.ai 2 2015/8/3 9:46:28 AW_Grand200_Manual_G04_150803.ai 2 2015/8/3 9:46:28 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS PLEASE READ CAREFULLY BEFORE PROCEEDING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Please keep this manual in a safe place for future reference.

  • Page 3: Table Of Contents

    AW_Grand200_Manual_G04_150803.ai 3 2015/8/3 9:46:28 AW_Grand200_Manual_G04_150803.ai 3 2015/8/3 9:46:28 Contents Panel Description Front Panel................................4 Rear Panel................................5 Setup Part List.................................6 Setup Guide................................6 Power Supply................................9 Connections Connecting a pair of Headphones........................10 Connecting an Audio Equipment.........................10 Connecting an MP3/CD Player...........................10 Connecting a Computer and an MIDI........................10 Playing to the Demo song..........................11 Adjusting the Volume............................11 Playing Voices...

  • Page 4: Panel Description

    AW_Grand200_Manual_G04_150803.ai 4 2015/8/3 9:46:28 AW_Grand200_Manual_G04_150803.ai 4 2015/8/3 9:46:28 Panel Description Front Panel 1. [VOLUME] slider 8. CHORUS Keys Adjust the master volume. Hold down the [FUNCTION] button and press the [ON/OFF] key to turn chorus effect ON or OFF. 2. [FUNCTION] button Hold down the [FUNCTION] button and press the Press and hold it to access secondary functions of the other keys to select the chorus type.

  • Page 5: Rear Panel

    AW_Grand200_Manual_G04_150803.ai 5 2015/8/3 9:46:29 AW_Grand200_Manual_G04_150803.ai 5 2015/8/3 9:46:29 Panel Description 14. Soft Pedal When the soft pedal is pressed, all notes played on the keyboard will have a softer effect. 15. Sostenuto Pedal When the sostenuto pedal is pressed, the notes played before you step on the pedal will have a sustain effect.

  • Page 6: Setup

    Setup In addition to the main piano cabinet, your Grand200 should come with the parts shown below. Three people will be need to complete the assembly, as the piano cabinet must first rest on the floor with support. Then the entire instrument must be lifted once...
  • Page 7 AW_Grand200_Manual_G04_150803.ai 7 2015/8/3 9:46:31 AW_Grand200_Manual_G04_150803.ai 7 2015/8/3 9:46:31 Setup 1. Place the left, the right and the rear legs ④ & ⑤ as shown in the picture, and then fix the legs with the M6x25 hexagon blots ③ and the washers ②, tighten with a Hex key (not included).
  • Page 8 AW_Grand200_Manual_G04_150803.ai 8 2015/8/3 9:46:32 AW_Grand200_Manual_G04_150803.ai 8 2015/8/3 9:46:32 Setup 3. Place the pedal leg ⑦ as shown in the picture, and then fix the leg with the M6X40 hexagon bolts⑧ and the washers ②, tighten with a Hex key . 4.

  • Page 9: Power Supply

    AW_Grand200_Manual_G04_150803.ai 9 2015/8/3 9:46:33 AW_Grand200_Manual_G04_150803.ai 9 2015/8/3 9:46:33 Setup Power Supply Make sure that the piano is turned off. Before you switch your piano on or off, turn down the volume of piano and any connected audio equipments first. Connect the AC adaptor to the DC IN jack. MIDI OUT MIDI IN AUX OUT...

  • Page 10: Connections

    AW_Grand200_Manual_G04_150803.ai 10 2015/8/3 9:46:34 AW_Grand200_Manual_G04_150803.ai 10 2015/8/3 9:46:34 Connections Connecting a pair of Headphones A standard pair of stereo headphones can be plugged in here for private practice or late-night playing. Jack1: When a pair of headphones is plugged into Jack 1, the sound can be heard from headphones and speakers of the instrument.

  • Page 11: Playing To The Demo Song

    AW_Grand200_Manual_G04_150803.ai 11 2015/8/3 9:46:35 AW_Grand200_Manual_G04_150803.ai 11 2015/8/3 9:46:35 Playing the Demo Song While holding down the [ FUNCTION ] button, press DEMO key to start the demo song playing. Repeat the operation to stop the demo playback. Note: During demo playback, all other keys on the keyboard become invalid. Adjusting the Master Volume Move the [VOLUME] slider rightwards, the volume increases.

  • Page 12: Playing Voices

    AW_Grand200_Manual_G04_150803.ai 12 2015/8/3 9:46:35 AW_Grand200_Manual_G04_150803.ai 12 2015/8/3 9:46:35 Playing Voices Playing a Voice The instrument features 26 exceptionally realistic voices . Please refer to Voice List. 1. While holding down the [ FUNCTION ] button, press one of the VOICE SELECT keys to select a desired voice. 2.

  • Page 13: Playing Voice Demo

    AW_Grand200_Manual_G04_150803.ai 13 2015/8/3 9:46:36 AW_Grand200_Manual_G04_150803.ai 13 2015/8/3 9:46:36 Playing Voices Playing Voice Demo The instrument has 26 voice demos. Try playing them and enjoy the wonderful sound. 1. While holding down the [ FUNCTION ] button, press the VOICE DEMO key to start the demo playback of the selected main voice.

  • Page 14: Dsp Effects

    AW_Grand200_Manual_G04_150803.ai 14 2015/8/3 9:46:37 AW_Grand200_Manual_G04_150803.ai 14 2015/8/3 9:46:37 DSP Effects Reverb and Chorus While holding down the [ FUNCTION ] button, press one of the REVERB or CHORUS keys to select the desired reverb or chorus type. Reverb Value: Parameters Description Room Small Hall...

  • Page 15: Metrnome

    AW_Grand200_Manual_G04_150803.ai 15 2015/8/3 9:46:38 AW_Grand200_Manual_G04_150803.ai 15 2015/8/3 9:46:38 Metronome Turn on the metronome: While holding down the [ FUNCTION ] button, press METRONOME ON/OFF key to turn the metronome ON or OFF. Select different time signature: While holding down the [FUNCTION] button, press one of the METRONOME keys to select the desired time signature.

  • Page 16: Tempo

    AW_Grand200_Manual_G04_150803.ai 16 2015/8/3 9:46:39 AW_Grand200_Manual_G04_150803.ai 16 2015/8/3 9:46:39 Tempo While holding down the [ FUNCTION ] button, press one of the TEMPO keys to set the desired tempo value. Parameters Description Quickly set the desired tempo value. Tempo+/- Increase/ Decrease tempo value by 1. 0 ~ 9 Directly set the specified tempo value.

  • Page 17: Troubleshooting

    AW_Grand200_Manual_G04_150803.ai 17 2015/8/3 9:46:39 AW_Grand200_Manual_G04_150803.ai 17 2015/8/3 9:46:39 Troubleshooting Problem Possible Cause and Solution The speakers produce a “pop” sound whenever This is normal and is no cause for alarm. the power is turned ON or OFF. Make sure the voice volumes are set at appropriate levels.Check if No sound when the keyboard is played.

  • Page 18: Voice List

    AW_Grand200_Manual_G04_150803.ai 18 2015/8/3 9:46:39 AW_Grand200_Manual_G04_150803.ai 18 2015/8/3 9:46:39 Voice List Full Name Short Name Acoustic Grand Piano GrandPno Bright Acoustic Piano BritePno Electric Piano E.Piano Electric Piano 2 E.Piano2 Vibraphone Vibra Marimba Marimba Drawbar Organ DrawOrgn Percussive Organ PercOrgn Rock Organ RockOrgn Church Organ ChurOrgn...

  • Page 19: Midi Implementation List Chart

    AW_Grand200_Manual_G04_150803.ai 19 2015/8/3 9:46:39 AW_Grand200_Manual_G04_150803.ai 19 2015/8/3 9:46:39 MIDI Implementation Chart : LOCAL ON/OFF : All Notes Off Message : Active sense : Reset...
  • Page 20 AW_Grand200_Manual_G04_150803.ai 20 2015/8/3 9:46:40 AW_Grand200_Manual_G04_150803.ai 20 2015/8/3 9:46:40 Grand200_G04...
