Summary of Contents for Medeli GRAND 1000
-
Page 1: Quick Start Guide

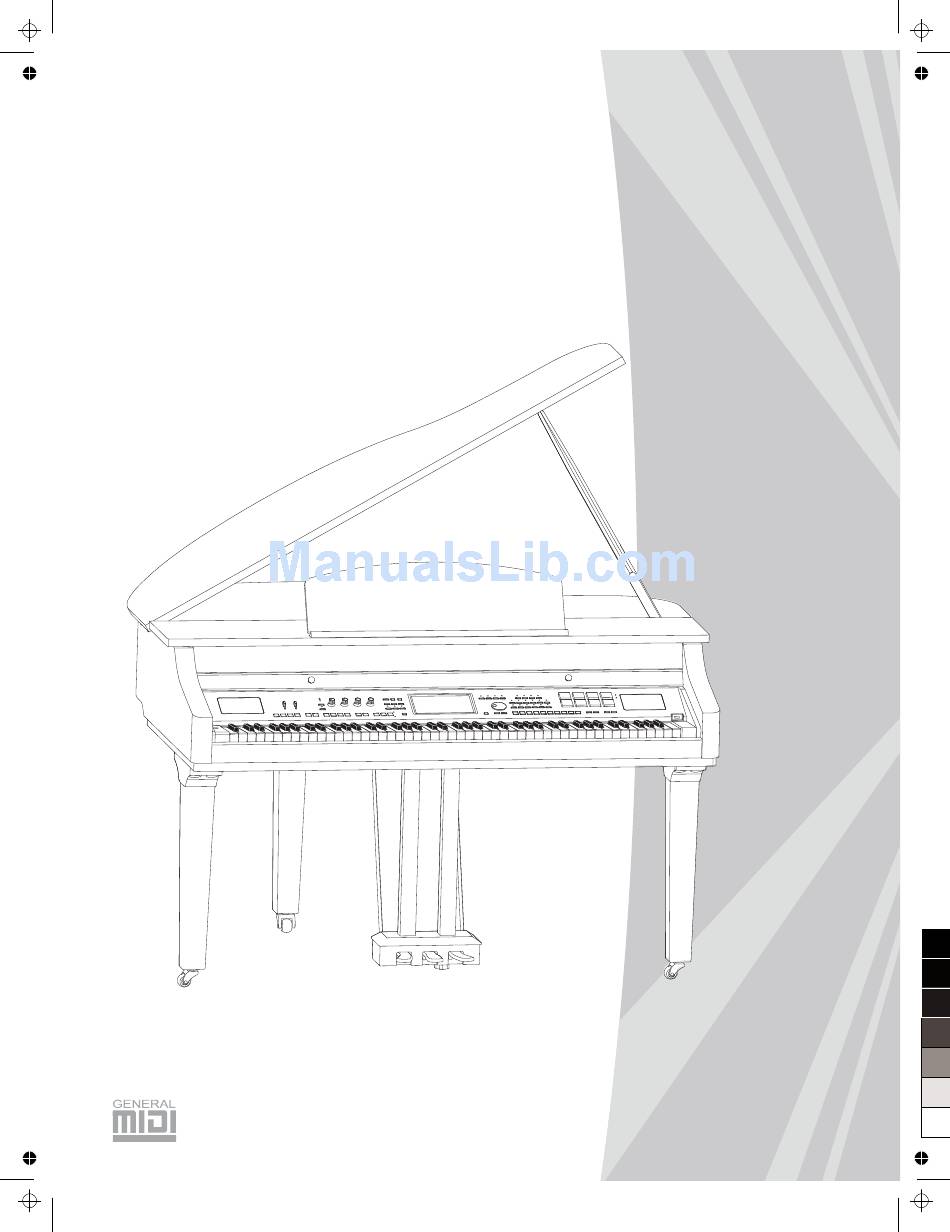

DIGITAL GRAND PIANO Quick Start Guide aw_GRAND1000_QuickStartGuide_G08_150929Part1 2015 13:59:46... - Page 2 INFORMATION FOR YOUR SAFETY! THE FCC REGULATION WARNING (for USA) PRECAUTIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of PLEASE READ CAREFULLY BEFORE PROCEEDING the FCC Rules. These limits are designed to provide reasonable protection Please keep this manual in a safe place for future reference.
-
Page 3: Table Of Contents
Contents Introduction Appendices Panel & Display Description Troubleshooting ..........23 Front Panel............4 Rear Panel............5 Specification ..........24 Main Display............6 Appendices Setup Voice List............25 Part List...............7 Style List............31 Setup Guide............8 Song List............32 Demo List............32 Connections Chord List............33 Power Supply............12 MIDI Implementation List........34 Connecting a pair of Headphones.....12 Connecting an Audio Equipment.......12 Connecting an MP3/CD Player......13... -
Page 4: Panel & Display Description
Panel & Display Description Front Panel MASTER MUSIC VOLUME VOLUME REVERB CHORUS VOLUME SONG STYLE SCORE SELECT SELECT ATTACK RELEASE CUTOFF RESONANCE ASSIGN 1 ASSIGN 2 ASSIGN 3 ASSIGN 4 TEMPO TEMPO SELECT RECORD RECORD EFFECT ON / OFF METRO. SONG AUDIO NEW SONG... -
Page 5: Rear Panel
Panel & Display Description PART ON/OFF VOICE PIANO GLOBAL MODE MODE SETTING DISK LEFT RIGHT 1 IGHT IGHT 26 27 28 DEMO ACCORDION & GUITAR & STRINGS & VOICE PIANO E.PIANO ORGAN HARMONICA BASS ENSEMBLE BRASS & FLUTE & LEAD & FX &... -
Page 6: Main Display
Panel & Display Description Main Display Voice Chord Display voice name and octave data of each part. Display the chord name and related information. (Right1, Right2, Right3, Left) A. Chord Name How to select the voice for each part? B. Chord Mode For example: C. -
Page 7: Setup
Setup This section contains information about setting up your instrument and preparing to play. Please go through this section carefully before turning the power on. Part List Before you proceeding to assemble the stand, get a Philip's Pedal component screwdriver (not supplied). Right leg component Make sure you have the following parts, which are supplied into Left leg component... -
Page 8: Setup Guide
Setup Setup Guide A. Please reverse the carton to upside down and place it in the horizontal before you initial assembly the piano. Make sure the bottom surface of carton is up. Then open the box, take off the foams which used for protected piano body. aw_GRAND1000_QuickStartGuide_G08_150929Part1 2015 13:59:49... - Page 9 Setup B. Put the left leg component(C) on the left of piano body. Find the sunken hole on the leg component and correspond the hole on the piano body. Then place a washer into this sunken hole, Use Wrench (J) to tighten 4 pieces of hexagonal bolt (2 on each side) by clockwise turn.
- Page 10 Setup C. Use screws(H) to tighten the two copper poles (I) onto the back of Pedal component(A).Make sure the direction of the placement is correct before screwing. D. Then reserved the Pedal component with two copper poles(I), and use the hexagonal bolt(G) to tightly settled it with the piano body according finished assembly in left leg component, fix the other side of copper Pole onto the piano body (E).
- Page 11 Setup E. Reverse the piano after finished assembly. Please carefully reverse the piano avoid touched floor cause damaged or broke any leg components or pedal component. Then moved the carton box and all package goods. You can enjoy play the piano now. Carefully reverse the piano avoid damaged or broke any legs.
-
Page 12: Connections
Connections Power Supply Move the MASTER and MUSIC VOLUME sliders downward to set the minimum volume level. Connect the AC power cable to AC power inlet on the underside of the piano body. Plug the AC power cable into an AC outlet. Turn the power ON. -
Page 13: Connecting An Mp3/Cd Player
Connections Connecting an MP3/CD Player AUX.IN AUX. OUT MIC VOL L/MONO Connect the audio output of an MP3/CD player or other audio source to the stereo AUX IN jacks on the rear panel. AC INPUT The input signal is mixed with the instrument signal, allowing you to play along. -
Page 14: Basic Operations
Basic Operations Selection Operation There are some selection interfaces: voice selection, style selection, song selection, performance selection, etc. How to select the file in these selection interfaces? For example: Location of data Preset: Location where pre-programmed (preset) data is stored. User: Location where recorded or edited data is saved. -
Page 15: Setting Operation
Basic Operations Setting Operation In order to have a quick reference for basic parameter settings, please remember these panel button operations during all edit procedure. Select a voice, a style or a song Decrease Increase Use the DATA DIAL or [+] / [-] button to select a desired item. Quickly press [+] / [-] button for once to increase/decrease value gradually. -
Page 16: Playing The Demos
Playing the Demos The instrument features 9 wonderful demos. Please refer to DEMO VOICE PIANO MODE MODE LIST. DEMO Press the [VOICE MODE] and [PIANO MODE] buttons simultaneously to start playing the demo. Select your desired demo Press the Demo name on LCD or use the DATA DIAL, the [+] or the [-] button to select your desired demo. -
Page 17: Playing Voices
Playing Voices The piano has 672 remarkably realistic built-in voices including Piano, Woodwind, Saxophone, Drum Kits and many more Please refer to Voice List. Turn the R1 PART on PART ON/OFF Normally, the default setting is R1, or you can press PART ON/OFF [RIGHT 1] to turn the right 1 part on. -
Page 18: Playing With A Style
Playing with a Style The instrument features 240 styles in a variety of different musical genres. Try selecting some of the different styles (Refer to Style List) and play with the auto accompaniment. Select a style Select a style category, call up style selection display. There are 2 methods to select a style category: Panel button: press the panel [STYLE SELECT] button. -
Page 19: Playing Songs
Playing Songs The instrument features 10 piano songs. You can playback and enjoy these classical piano songs, or you can learn how to play them from the score display. Select a Song SONG Call up the song selection display. SELECT There are 2 methods: Panel button: press the panel [SONG SELECT] button. -
Page 20: Recording Your Performance To Midi
Recording Your Performance to MIDI It is convenient to record your performance, play back your RECORD performance, and share your performance. METRO. SONG Press the [METRO.] and [RECORD SONG] panel buttons simultaneously to call up the Recording Display. NEW SONG A blank song (“New Song”) is called up and the system is in recording standby mode. -
Page 21: Recording Your Performance As Audio
Recording Your Performance as Audio You can also record your own performance as CD quality audio file. The procedure is very simple. Insert your USB disk to the USB slot. RECORD RECORD AUDIO AUDIO Press the [RECORD AUDIO] button to start recording. The [RECORD AUDIO] lights up. -
Page 22: Using A Usb Storage Device
Using a USB Storage Device By connecting a USB storage device to your instrument, you can save data you’ve created to the connected device, as well as read data from the connected device. Note Compatible USB device Recommended Brand: KINGSTON, SANDISK, SONY, LEXAR, TRANSCEND Format: FAT 16/32 Capacity: 1G,2G,4G,8G,16G,32G... -
Page 23: Troubleshooting
Troubleshooting Problem Possible Cause and Solution The speakers produce a “pop” sound whenever This is normal and is no cause for alarm the power is turned ON or OFF. The R1/R2/R3/L voice volume (Mixer) settings could be set to low. Make No sound when the keyboard is played. -
Page 24: Specification
Specifications Keyboard Tempo 88 keys 30-280, Tap Tempo Display Performance Memory 7" TFT，800 x 480 color touch screen 10(BANK)*6(M1-M6), FREEZE, STORE Polyphony Multi Pad Voice Other Control 672 (including 256 GM2 instrument voices and 17 drum kits) MASTER VOLUME SLIDER, SELECT, 4 KNOBS, EFFECT ON/OFF, GLOBAL SETTING, MIXER, VOICE DIRECT Effect BUTTONS, DATA DIAL, +, -, PART ON/OFF BUTTONS,... -
Page 25: Voice List
Voice List Name LCD Name Warm EP 1 Warm EP 1 Choir EP 1 Choir EP 1 PIANO Acoustic Grand Piano Grand Piano Wah EP 1 Wah EP 1 Acoustic Grand Piano (wide) EP & Strings 1 Grand Piano/Wide EP&Strings 1 Acoustic Grand Piano (dark) Tremolo EP 2 Grand Piano/Dark... - Page 26 Voice List Tango Accordion 2 Tango Accordion 2 Slap Bass 2 Slap Bass 2 Synth Bass 1 Synth Bass 1 Guitar & Bass Acoustic Guitar (nylon) Nylon Guitar Synth Bass 2 Synth Bass 2 Ukulele Acoustic Bass 2 Ukulele Acoustic Bass 2 Acoustic Guitar (nylon + key off) Acoustic Bass 3 NylonGtr/KeyOff...
- Page 27 Voice List Choir Aahs Choir Aahs Octave Orchestra Hit Octave OrchHit Choir Aahs 2 Choir Aahs 2 Brass & Saxophone Voice Oohs Voice Oohs Trumpet Trumpet Humming Humming Dark Trumpet Soft DarkTrump Soft Anlong Voice Anlong Voice Trombone Trombone Synth Voice Trombone 2 Synth Voice Trombone 2...
- Page 28 Voice List Sweet Soprano Sax Sweet Soprano Sax Pad 2a (sine pad) Sine pad Alto Sax 2 Alto Sax 2 Pad 3 (polysynth) Poly Synth Soft Alto Sax Soft Alto Sax Pad 4 (choir) Choir Pad Super Alto Sax Pad 4a (itopia) Super Alto Sax Itopia Pad Sax Band...
- Page 29 Voice List Rising Rising Train Train Congregate Congregate Jetplane Jetplane Starship Starship FX & Effects FX 1 (rain) Burst Noise FX 1 Rain Burst Noise FX 2 (soundtrack) Applause FX 2 SoundTrack Applause Prelude Prelude Laughing Laughing FX 3 (crystal) FX 3 Crystal Screaming Screaming...
- Page 30 Voice List Church Organ & Choir ChurchOrg&Choir Marimba & Vibraphone Marimba&Vibra Church Organ & Strings Wood Drum ChurchOrg&Str Wood Drum Harmonica & Acoustic Guitar Harmonica&AcGtr Xylophone Xylophone Harmonica & Strings Harmonica&Str Xylophone 2 Xylophone 2 Acoustic Guitar & Flute AcGtr&Flute Tubular Bells Tubular Bells Acoustic Guitar &...
-
Page 31: Style List
Style List Name LCD Name R&B Ballad 1 R&BBld1 Techno 2 Techno2 Guitar Ballad GtBallad Progressive Progress 8BEAT & 16BEAT 8Beat Ballad 8BtBld Ballad Rock BalladRk Rap 1 Rap1 8Beat Piano 8BtPiano Piano Pop 1 PianoPop Rap 2 Rap2 8Beat 1 8Beat1 Soft Ballad SoftBald... -
Page 32: Song List
Style List Country Pop 2 CntyPop2 Waltz & Traditional New Age NewAge Bluegrass 2 Bluegrs2 Waltz Waltz Tarantella Tarantel 2/4 Country 2/4Cntry Old Waltz OldWaltz Scottish Scottish Country Quick Steps QuickStp English Waltz EngWaltz Norteno Norteno Country Folk CntyFolk German Waltz GemWaltz Pianist Country Shuffle... -
Page 33: Chord List
Chord List Chord Name Abbreviation Normal Voicing Display for Root "C" Major 1+3+5 Sixth 1+(3)+5+6 Major seventh 1+3+(5)+7 Major seventh add sharp eleventh M7(#11) 1+(2)+3+#4+5+7 CM7(#11) Add ninth 1+2+3+5 C(9) Major seventh ninth M7(9) 1+2+3+(5)+7 CM7(9) Sixth ninth 6(9) 1+2+3+(5)+6 C6(9) Augmented 1+3+#5... -
Page 34: Midi Implementation List
MIDI Implementation List aw_GRAND1000_QuickStartGuide_G08_150929Part3 2015 14:17:25... - Page 35 aw_GRAND1000_QuickStartGuide_G08_150929Part3 2015 14:17:25...
- Page 36 Grand1000_ Quick Start Guide _G08 aw_GRAND1000_QuickStartGuide_G08_150929Part3 2015 14:17:25...
