- Page 1 AC/DC Current Oscilloscope Probe Model SL261 USER MANUAL...
-
Page 2: Limited Warranty
AC/DC Current Oscilloscope Probe Model SL261 Limited Warranty The AC/DC Current Oscilloscope Probe Model SL261 is warranted to the owner for a period of one year from the date of original purchase against ® defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor from whom it was purchased. -
Page 3: Table Of Contents
Table of Contents Warning .....................2 International Electrical Symbols ..............2 Receiving Your Shipment................3 Packaging....................3 Compatibility....................3 Description ....................4 Control and Connector Identification............4 Specifications ....................5 Electrical Specifications.................5 Environmental Specifications ..............6 Mechanical Specifications ..............6 Safety Specifications ................7 Typical Response Curves ..............8 Linearity for a DC Signal Range 10 mV/A ..........9 Operation....................9 Zero Adjustment ..................9 Current Measurement................9... -
Page 4: Warning
AC/DC Current Oscilloscope Probe Model SL261 Warning These safety warnings are provided to ensure the safety of personnel and proper operation of the instrument. • Connect the probe to the oscilloscope or voltage measuring instrument before clamping the probe around a conductor. -
Page 5: Receiving Your Shipment
If the equipment appears to be damaged, file a claim immediately with the carrier and notify your distributor at once, giving a detailed description of any damage. Packaging The shipping container includes the SL261 AC/DC Current Oscilloscope Probe with a separate battery (not installed) and this user manual. Compatibility •... -
Page 6: Description

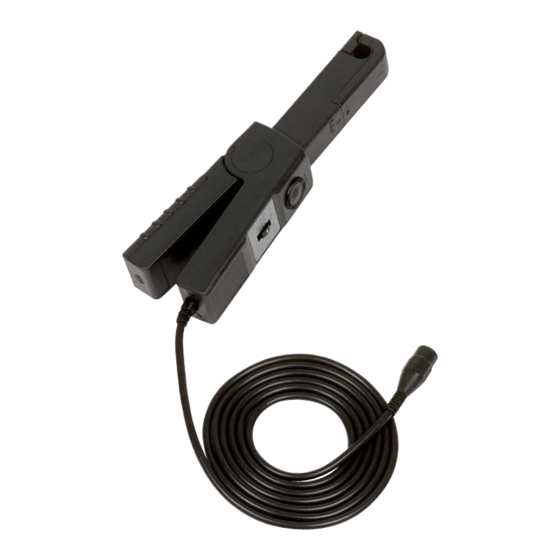

AC/DC Current Oscilloscope Probe Model SL261 Description The SL261 AC/DC Current Oscilloscope Probe expands oscilloscope applications in industrial, automotive or power environments, and is ideal for analysis and measurement of distorted current waveforms and harmonics. The probe permits accurate display and measurement of currents from 100mA to 100Arms, DC to 100kHz without breaking into the circuit. -
Page 7: Specifications
AC/DC Current Oscilloscope Probe Model SL261 Specifications ELECTRICAL SPECIFICATIONS Current Range: 100mV/A: 100mA to 10A peak 10mV/A: 1 to 100A peak Output Signal: 1000mV peak max AC Current Accuracy: After calibration and for one year (zero probe before making measurement) -
Page 8: Environmental Specifications
AC/DC Current Oscilloscope Probe Model SL261 Working Voltage: 600Vrms max Common Mode Voltage: 600Vrms max Influence of Adjacent Conductor: < 0.2mA/A AC Influence of Conductor Position in Jaw: 0.5% of reading at kHz Battery: 9V alkaline (NEDA 1604A, IEC 6LR61) Low Battery: Green LED when ≥... -
Page 9: Safety Specifications
AC/DC Current Oscilloscope Probe Model SL261 Vibration: Test per IEC 68-2-6, frequency range 10 Hz to 55 Hz, amplitude 0.15mm ® Handle: Lexan 920A, UL 94 V2 Dimensions: 9.09 x 1.42 x 2.64" (231 x 36 x 67mm) Weight: 11.6 oz (330 g) with battery... -
Page 10: Typical Response Curves
AC/DC Current Oscilloscope Probe Model SL261 Typical Response Curves gain in dB 1000 10000 100000 Frequency in Hz range 100 mV/A range 10 mV/A frequency response measurement current: 1A sine Frequency 10000 100000 phase in ˚ Frequency in Hz range 10 mV/A... -
Page 11: Linearity For A Dc Signal Range 10Mv/A
AC/DC Current Oscilloscope Probe Model SL261 Linearity for a DC Signal Range 10mV/A Typical Specification -10% -12% -14% -16% 100A Accuracy Operation Zero Adjustment The probe has a zero adjustment which should be adjusted before measurement. Alternatively, you may “zero” with the oscilloscope instead. -
Page 12: Battery Indication (Green Led)
If not, replace the 9V battery. Peak Overload (OL) Indication (Red LED) The SL261 offers an overload indicator. If the red LED illuminates during measurement, this indicates that the peak value exceeds the instrument response level and that the output is distorted. Switch the probe to a higher range if possible. -
Page 13: Repair And Calibration
AC/DC Current Oscilloscope Probe Model SL261 Repair and Calibration To ensure that your instrument meets factory specifications, we recommend that it be submitted to our factory Service Center at one-year intervals for recalibration, or as required by other standards or internal procedures. - Page 14 ® ® Chauvin Arnoux , Inc. d.b.a AEMC Instruments 15 Faraday Drive • Dover, NH 03820 USA www.aemc.com 99-MAN 100042 v5 01/04...
