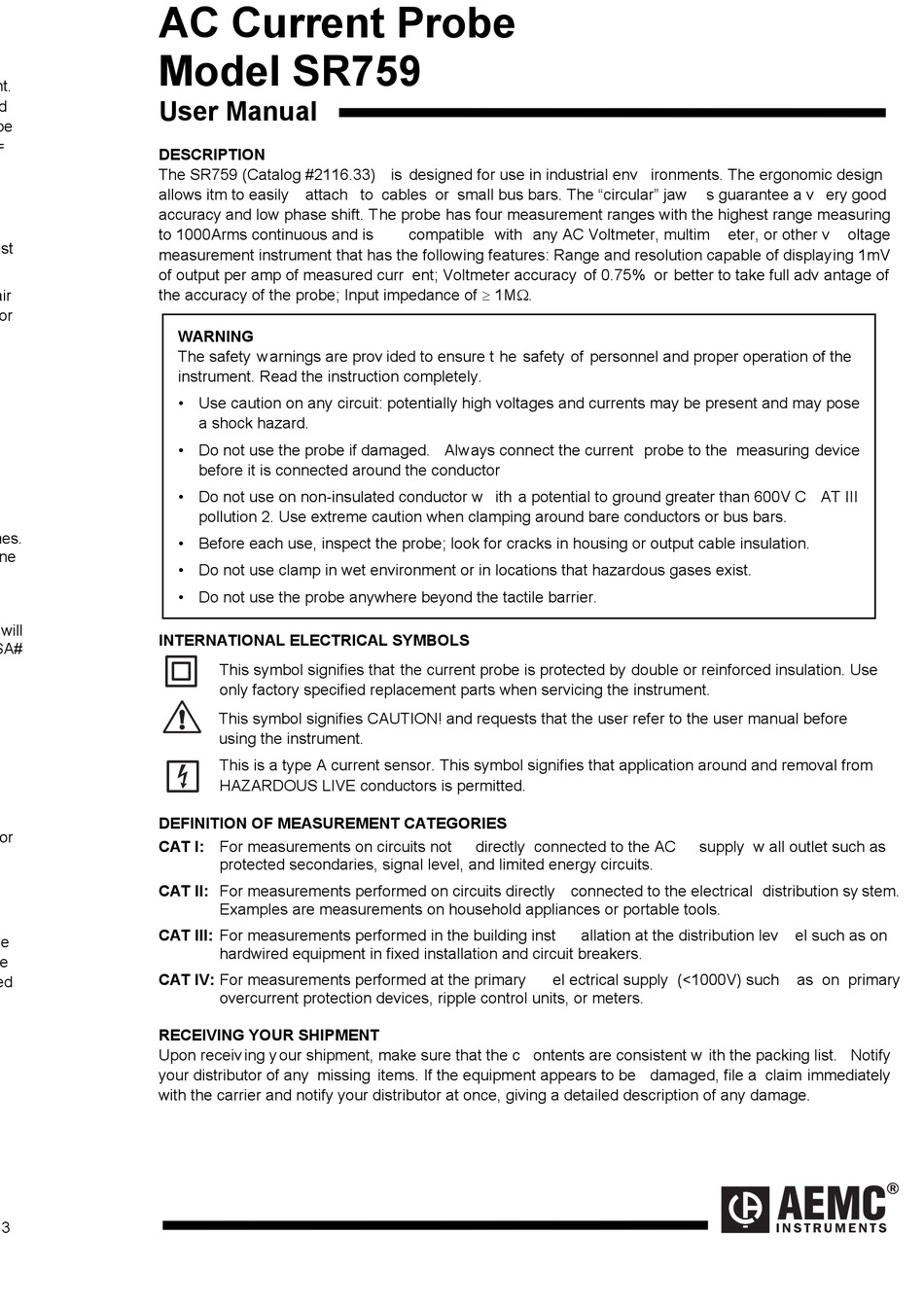

AEMC SR759 User Manual

AC Current Probe
Model SR759
User Manual

DESCRIPTION

The SR759 (Catalog #2116.33) is designed for use in industrial env ironments. The ergonomic design
allows itm to easily attach to cables or small bus bars. The "circular" jaw
accuracy and low phase shift. The probe has four measurement ranges with the highest range measuring
to 1000Arms continuous and is
measurement instrument that has the following features: Range and resolution capable of displaying 1mV
of output per amp of measured curr ent; Voltmeter accuracy of 0.75% or better to take full adv antage of
the accuracy of the probe; Input impedance of  1M.

WARNING

The safety w arnings are prov ided to ensure t he safety of personnel and proper operation of the
instrument. Read the instruction completely.
• Use caution on any circuit: potentially high voltages and currents may be present and may pose
a shock hazard.
• Do not use the probe if damaged. Always connect the current probe to the measuring device
before it is connected around the conductor
• Do not use on non-insulated conductor w ith a potential to ground greater than 600V C AT III
pollution 2. Use extreme caution when clamping around bare conductors or bus bars.
• Before each use, inspect the probe; look for cracks in housing or output cable insulation.
• Do not use clamp in wet environment or in locations that hazardous gases exist.
• Do not use the probe anywhere beyond the tactile barrier.

INTERNATIONAL ELECTRICAL SYMBOLS

This symbol signifies that the current probe is protected by double or reinforced insulation. Use
only factory specified replacement parts when servicing the instrument.
This symbol signifies CAUTION! and requests that the user refer to the user manual before
using the instrument.
This is a type A current sensor. This symbol signifies that application around and removal from
HAZARDOUS LIVE conductors is permitted.

DEFINITION OF MEASUREMENT CATEGORIES

CAT I: For measurements on circuits not
protected secondaries, signal level, and limited energy circuits.
CAT II: For measurements performed on circuits directly connected to the electrical distribution sy stem.
Examples are measurements on household appliances or portable tools.
CAT III: For measurements performed in the building inst
hardwired equipment in fixed installation and circuit breakers.
CAT IV: For measurements performed at the primary
overcurrent protection devices, ripple control units, or meters.

RECEIVING YOUR SHIPMENT

Upon receiv ing y our shipment, make sure that the c ontents are consistent w ith the packing list. Notify
your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately
with the carrier and notify your distributor at once, giving a detailed description of any damage.
compatible with any AC Voltmeter, multim
directly connected to the AC
allation at the distribution lev
el ectrical supply (<1000V) such
s guarantee a v ery good
eter, or other v
supply w all outlet such as
el such as on
as on primary
oltage
