Summary of Contents for AEMC SR661

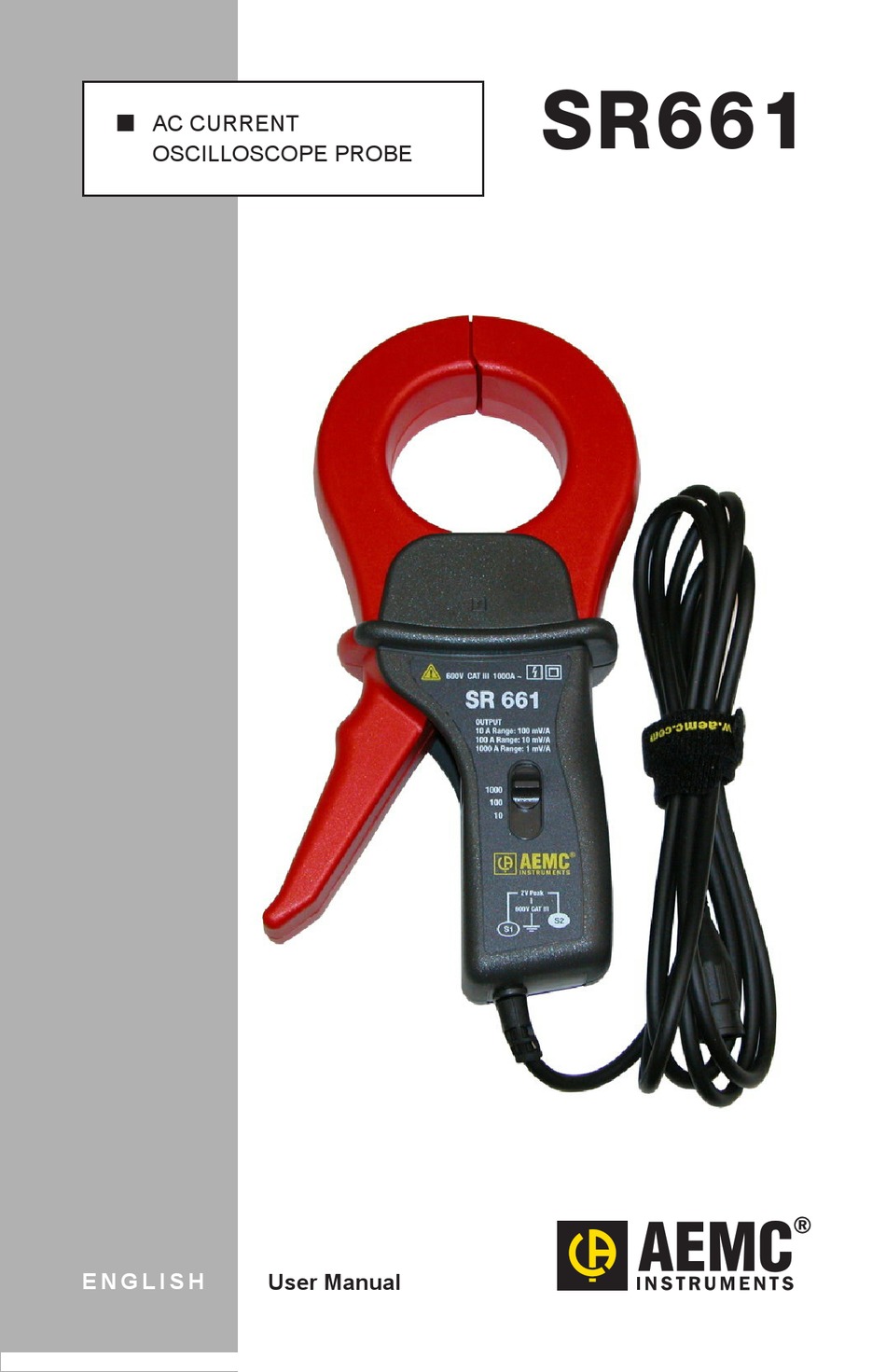

- Page 1 SR661 AC CURRENT OSCILLOSCOPE PROBE E N G L I S H User Manual...
- Page 2 The recommended calibration interval for this instrument is 12 months and begins on the date of receipt by the customer. For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2113.49 Model #:...
- Page 3 Table of Contents 1. INTRODUCTION ................2 1.1 International Electrical Symbols ..........3 1.2 Definition of Measurement Categories ........3 1.3 Receiving Your Shipment ............3 1.4 Ordering Information ..............4 1.4.1 Accessories and Replacement Parts ......4 2. PRODUCT FEATURES ..............5 2.1 Description ................5 2.2 Compatibility ................5 2.3 Features ..................6 3. SPECIFICATIONS................7 3.1 Electrical Specifications ............7 3.2 Mechanical Specifications ............8 3.3 Environmental Specifications ............9...
-
Page 4: Introduction
Read the instruction completely. • Use caution on any circuit: potentially high voltages and currents may be present and may pose a shock hazard. • Do not use the probe if damaged. Always connect the current probe to the measuring device before it is connected around the conductor • Do not use on non insulated conductor with a potential to ground greater than 600V CAT III pollution 2. Use extreme caution when clamping around bare conductors or bus bars. • Before each use, inspect the probe; look for cracks in housing or output cable insulation. • Do not use clamp in wet environment or in locations that hazard- ous gases exist. • Do not use the probe anywhere beyond the tactile barrier. AC Current Oscilloscope Probe Model SR661... -
Page 5: International Electrical Symbols
CAT IV: For measurements performed at the primary electrical supply (<1000V) such as on primary overcurrent protection devices, ripple control units, or meters. Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately with the car- rier and notify your distributor at once, giving a detailed description of any damage. Save the damaged packing container to substantiate your claim. AC Current Oscilloscope Probe Model SR661... -
Page 6: Ordering Information
Ordering Information AC Current Oscilloscope Probe Model SR661 ....Cat. #2113.49 Includes a user manual. 1.4.1 Accessories and Replacement Parts Male Banana - Female BNC Adaptor (XF-SS) ....Cat. #2111.32 AC Current Oscilloscope Probe Model SR661... -
Page 7: Product Features
CHAPTER 2 PRODUCT FEATURES Description The AC Current Oscilloscope Probe Model SR661 expands oscilloscope applications in industrial or power environments, and is ideal for analysis and measurement of distorted current waveforms and harmonics. The Model SR661 permits accurate display and measurement of currents from 100mA to 1000Arms, 1Hz to 100kHz (with current derating) without breaking into the circuit. A passive filter eliminates noise, ring on rapid rising (di/dt) waveforms, and ensures accurate screen displays. The probe connects directly to an oscilloscope through an insulated coax- ial cable with an insulated BNC. Compatibility The Model SR661 is compatible with any analog or digital oscilloscope or other voltage-measuring instrument which has the following features: • BNC input connector • Range capable of displaying 0.2 to 0.5V per division, or 2V range • Minimum input impedance of 1MΩ AC Current Oscilloscope Probe Model SR661... -
Page 8: Features
(35 mm) 1.77" 1.71" (45 mm) (43.5 mm) 3.90" (99 mm) 1. Jaw opening of 2.25" 2. Maximum dimension of conduct is 2.13" (54mm) 3. Tactical Barrier. Always keep hands below this barrier at all times. 4. Arrow indicates direction of current flow. Current flows in a positive direction when it travels from supply to load. 5. Three position switch 6. 6.5 ft (2m) output cable AC Current Oscilloscope Probe Model SR661... -
Page 9: Specifications
20 to 100A ≤5° 100 to 120A Overload: 120 A continuous 100mV/A, (1V at 10 Arms) Range Accuracy Phase Shift 0.1 to 0.5A 0.5 to 2A ≤3% ± 10mV 2 to 10A ≤15° 10 to 12A Overload: 12 A continuous AC Current Oscilloscope Probe Model SR661... -
Page 10: Mechanical Specifications
Influence of Frequency: Range 1mV/A: From 10 to 1000 Hz: < 1% of Reading From 1 to 10kHz: < 2% of Reading From 10 to 50kHz: < 10% of Reading From 50 to 100kHz: - 3 dB Range 10mV/A: From 10 to 1000 Hz: < 5% of Reading From 1 to 10kHz: < 3% of Reading From 10 to 50kHz: < 20% of Reading From 50 to 100kHz: - 3 dB Range 100mV/A: From 10 to 1000Hz: < 10% of Reading From 1 to 10kHz: < 5% of Reading From 10 to 50kHz: < 20% of Reading From 50 to 100kHz: - 3 dB Mechanical Specifications Dimensions: 4.4 x 8.5 x 1.8" (111 x 216 x 45 mm) Weight: 1.21 lbs (550g) Jaw Opening: 2.25" (57mm) max Maximum Cable Diameter: 2.13" (54mm) Maximum Conductor Size: Cable: 2.05" (52mm) Bus Bar: 1.95 x .19" (50 x 5mm) Case Protection: IP 40 (IEC 529) AC Current Oscilloscope Probe Model SR661... -
Page 11: Environmental Specifications
Electrical: Double insulation or reinforced insulation between the primary or secondary and the outer case of the handle per EN 61010-2-032. 600V, CAT III, Pollution Degree: 2 Dielectric Strength: 5550V, 50/60Hz between primary, secondary, and the outer case of the handle Electromagnetic Compatibility: EN 50081-1 Class B EN 50082-2 Electrostatic discharge IEC 1000-4-2 Radiated field IEC 1000-4-3 Fast transients IEC 1000-4-4 Magnetic field at 50/60 Hz IEC 1000-4-8 *Specifications are subject to change without notice AC Current Oscilloscope Probe Model SR661... -
Page 12: Typical Response Curves
@ 50 A -5.00 1000 10,000 100,000 Frequency (Hz) Phase Shift vs. Frequency 5.00 0.00 -5.00 -10.00 -15.00 -20.00 -25.00 -30.00 @ 10 A -35.00 @ 50 A -40.00 1000 10,000 100,000 Frequency (Hz) AC Current Oscilloscope Probe Model SR661... - Page 13 -25.00 @ 5 A -30.00 1000 10,000 100,000 Frequency (Hz) Phase Shift vs. Frequency 10.00 0.00 -10.00 -20.00 -30.00 -40.00 -50.00 @ 1 A -60.00 @ 5 A -70.00 1000 10,000 100,000 Frequency (Hz) AC Current Oscilloscope Probe Model SR661...
- Page 14 @ 0.5 A -45.00 1000 10,000 100,000 Frequency (Hz) Phase Shift vs. Frequency 40.00 30.00 20.00 10.00 0.00 -10.00 -20.00 -30.00 @ 0.1 A -40.00 @ 0.5 A -50.00 1000 10,000 100,000 Frequency (Hz) AC Current Oscilloscope Probe Model SR661...
-
Page 15: Operation
CHAPTER 4 OPERATION Current Measurement WARNING: Always connect the probe to the instrument before clamping onto the circuit under test. • Connect the Model SR661 to the proper input channel on the oscilloscope. • Begin with the least sensitive range on the current probe (1mV/A) • Select the 0.5V/Division range on the oscilloscope. • Clamp the probe on the conductor to be measured and read the current flowing directly on your oscilloscope. -
Page 16: Maintenance
• Disconnect the unit from all circuits and test cables before open- ing the case. • Use caution with metallic tools that may short battery packs, power supplies, etc. Cleaning • To clean the probe body, use a soft cloth dampened in a solution of mild detergent and water. To clean the core, open the jaw and clean the exposed core surfaces with a cotton swab dampened with isopropyl alcohol (isopropanol) or ethyl alcohol (fotocol or ethanol). Lubricate the jaws mating surfaces with a light oil. • Do not use chemicals containing benzine, benzene, toluene, xylene, acetone, or similar solvents. • Do not immerse the probe in liquids or use abrasive cleaners. AC Current Oscilloscope Probe Model SR661... -
Page 17: Repair And Calibration
NOTE: You must obtain a CSA# before returning any instrument. Technical and Sales Assistance If you are experiencing any technical problems, or require any assistance with the proper operation or application of your instrument, please call, mail, fax or e-mail our technical support team: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 200 Foxborough Boulevard Foxborough, MA 02035 USA Phone: (800) 343-1391 (508) 698-2115 Fax: (508) 698-2118 E-mail: techsupport@aemc.com www.aemc.com NOTE: Do not ship Instruments to our Foxborough, MA address. AC Current Oscilloscope Probe Model SR661... -
Page 18: Limited Warranty
CSA Form. Please write the CSA# on the outside of the shipping container. Return the instrument, postage or shipment pre-paid to: Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. 360) (603) 749-6434 (Ext. 360) Fax: (603) 742-2346 or (603) 749-6309 E-mail: repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. AC Current Oscilloscope Probe Model SR661... - Page 19 Notes: AC Current Oscilloscope Probe Model SR661...
- Page 20 10/17 99-MAN 100130 v13 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
