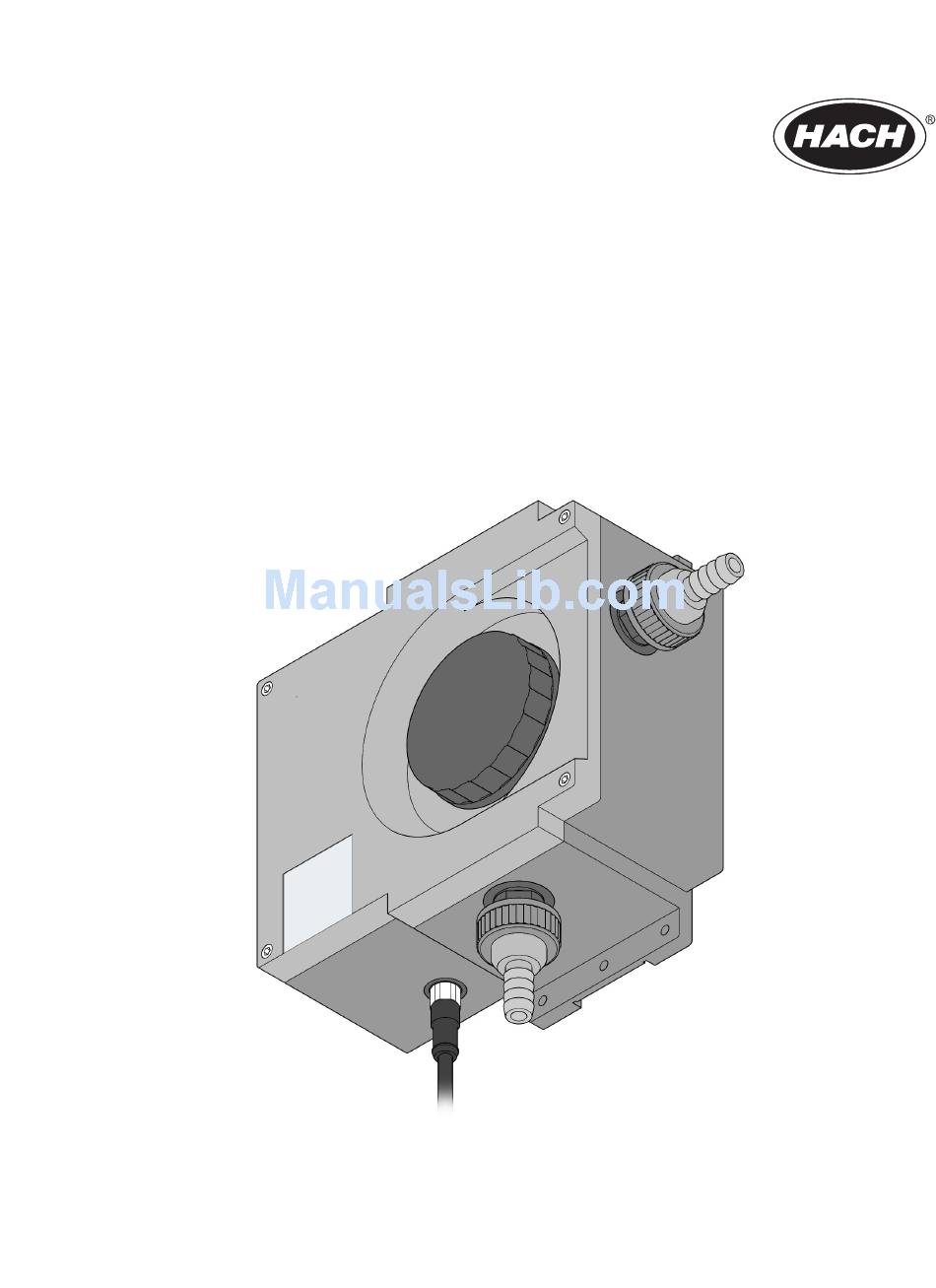

DOC023.53.03231
ULTRATURB sc
basic/plus/seawater
User Manual
07/2017, Edition 7
© HACH Company, 2007–2010, 2017. All rights reserved. Printed in Germany

Advertisement

Table of Contents
loading

Related Manuals for Hach ULTRATURB sc

Summary of Contents for Hach ULTRATURB sc

  • Page 1 DOC023.53.03231 ULTRATURB sc basic/plus/seawater User Manual 07/2017, Edition 7 © HACH Company, 2007–2010, 2017. All rights reserved. Printed in Germany...

  • Page 3: Table Of Contents

    Table of contents Section 1 Specifications .............................. 5 1.1 Dimensions................................6 Section 2 General information ............................. 7 2.1 Safety information..............................7 2.1.1 Use of hazard information ..........................7 2.1.2 Precautionary labels ............................7 2.2 Applications ................................8 2.3 Measuring principle ..............................8 2.4 Handling ..................................
  • Page 4 Table of contents...

  • Page 5: Section 1 Specifications

    Section 1 Specifications Microprocessor-controlled turbidity bypass sensor ULTRATURB sc for Components very low to medium turbidities with comprehensive self-diagnostics Measuring technique 90° infrared pulse scattered light technique in accordance with DIN EN ISO 7027 0.0001–1000 FNU (TE/F, NTU, FTU) can be programmed as required Measuring range (0.0001–250 EBC = 2500 ppm SiO2)

  • Page 6: Dimensions

    Specifications 1.1 Dimensions Fig. 1 ULTRATURB sc dimensions 221 mm [8.7 in] 105.15 mm [4.14 in] Ø 5.4 mm [0.21 in] 111 mm 85 mm [4.37 in] [3.35 in] 216 mm 233,4 mm [8.5 in] [9.19 in] Ø 5.4 mm...

  • Page 7: Section 2 General Information

    Section 2 General information 2.1 Safety information Please read this entire manual before unpacking, setting up or operating this equipment. Pay attention to all danger and caution statements. Failure to do so could result in serious injury to the operator or damage to the equipment. To ensure that the protection provided by this equipment is not impaired, do not use or install this equipment in any manner other than that specified in this manual.

  • Page 8: Applications

    90°. The low acquisition limit for this method makes it possible to even reliably differentiate turbidity particles in distilled water. This technique is defined in DIN EN ISO 7027. ULTRATURB sc sensors are designed in accordance with the requirements in this standard.

  • Page 9: Items Supplied

    General information 2.5 Items supplied • ULTRATURB sc sensor • Connecting cable (length as per order) • User Manual • Factory test certificate • Accessory set LZP816 • Wiper set (for 4 changes) LZV275 (only plus and seawater version) 2.6 Function check After unpacking, all components should be checked for any transport damage and a short function check performed prior to installation.
  • Page 10 General information...

  • Page 11: Section 3 Installation

    Section 3 Installation DANGER Installation may only be carried out by qualified experts in accordance with all local safety regulations. 3.1 Assembling Select an appropriate installation location for the instrument to guarantee • safe installation • safe operation • problem-free maintenance Plan how to lay cables and hoses and their path in advance.

  • Page 12: Connectors

    Installation 3.1.1 Connectors Important Note: The instrument can be damaged if the connectors and/or the union nuts are attached too tightly. Only hand-tighten the union nuts for the hose mounts. If necessary, hold the connectors with a tool (SW 22). The measuring instrument can be integrated into the measurement and analysis process using tubing (ID 13 mm) or a fixed connection (PVC system component pipework, compatible with 1"...

  • Page 13: Instrument Layout

    Installation 3.2 Instrument layout Fig. 3 Instrument layout ULTRATURB sc Screw top, HRR195 Diaphragm plate* (if necessary) HRS185: 1.2 mm HRS186: 2 mm HRS187: 3 mm Measuring chamber sealing plug, HAD087 Tubing nipple* (Ø 13 mm), HXA072 Clutch wheel, BVK001 10.

  • Page 14: Connecting Sensor Cable

    Installation 3.3 Connecting sensor cable CAUTION Always lay cables and hoses so that they do not pose a tripping risk. 1. Unscrew the protective caps from the controller socket and the cable plug and retain them. 2. Pay attention to the guide in the plug and slide the plug into the socket. 3.

  • Page 15: Section 4 Operation

    Section 4 Operation 4.1 Operating the sc controller The sensor can be operated with all sc controllers. Prior to using the sensor, familiarise yourself with the principle of operation of your controller. Learn how to navigate in the menus and run appropriate functions. 4.2 Sensor setup When you connect the sensor for the first time, the serial number of the sensor is displayed as the sensor name.

  • Page 16: Sensor Setup

    Operation 4.4.2 SENSOR SETUP WIPE Initiates a wiping action Verification using CVM VERIFY Verification with dry standard module CALIBRATE Selection as per Calibration with standard Procedure during calibration, menu STANDARD CAL. CONFIG solution based OUTPUT MODE Selection as per OFFSET CAL.
  • Page 17 Operation TEST/MAINT ULTRATURBsc Instrument name EDITED NAME SERIAL NUMBER PROBE INFO RANGE 0.001 ... 1000 FNU MODEL NUMBER Item no. sensor SOFTWARE VERS Sensor software DRIVER VERS CAL. DATE Date of the last calibration FACTOR Default setting 1.00 CAL. DATA Default setting OFFSET 0.000 TRBFNU...

  • Page 18: Calibration With Standard Solution

    Operation 4.5 Calibration with standard solution 1. Open the MAIN MENU. 2. Choose SENSOR SETUP and accept. 3. Choose the related sensor and accept. 4. Choose CALIBRATE and accept. 5. Choose STANDARD and accept. 6. Shut-off the feed and accept TURN OFF SAMPLE INLET. 7.

  • Page 19: Verify Using Dry Standard Cvm

    Operation 4.6 Verify using dry standard CVM 1. Open the MAIN MENU. 2. Choose SENSOR SETUP and accept. 3. Choose the related sensor and accept. 4. Choose VERIFY and accept. 5. Choose STANDARD and accept. 6. Shut-off the feed and accept TURN OFF SAMPLE INLET. 7.
  • Page 20 Operation...

  • Page 21: Section 5 Maintenance

    Section 5 Maintenance It has been possible to reduce the scope of the maintenance to be performed by the user to only a few actions. Clearly summarised in a table and described in detail in the following sections, these actions can be quickly and straightforwardly performed by qualified personnel.

  • Page 22: Replacing Wiper Profiles (Only Plus And Seawater Version)

    Maintenance 9. Remove the screw top and the sealing plug for the measuring chamber and accept OPEN MEAS. CHAMBER. 10. Remove the wiper holder and accept REMOVE WIPER HOLDER (only for plus and for seawater version). 11. Clean the measuring chamber and accept CLN. MEAS CHAMB. 12.

  • Page 23: Replacing Desiccant

    Maintenance 5.4 Replacing desiccant The ULTRATURB sc turbidity sensor is continuously subject to a wet environment. To provide protection against the moisture, there are 2 generously sized desiccant bags close to the optical and electronic components. To maintain this protection, the manufacturer recommends replacement or regeneration every 2 years.

  • Page 24: Monitoring Test Equipment

    Maintenance 5.5 Monitoring test equipment As part of a quality assurance system for test equipment monitoring, it is necessary to check the instrument calibration; this can be performed using a formazine standard series in accordance with DIN EN ISO 7027. You can either make up the formazine solution yourself as per the instructions that follow 5.5.1 Preparing formazine solution in accordance with DIN EN ISO 7027...
  • Page 25 Maintenance The turbidity of this parent solution is 400, stated in Formazine Attenuation Units (FAU) or Formazine Nephelometric Units (FNU). This solution can be stored in a dark place at 25 °C (±3 °C) (77 °F (± 5.4 °F)) for around 4 weeks. Formazine reference solution Dilute the parent solution with the aid of pipettes and measuring flasks to produce reference solutions in the required range.
  • Page 26 Maintenance...

  • Page 27: Section 6 Faults, Causes, Rectification

    Section 6 Faults, causes, rectification 6.1 Error messages Possible sensor errors are displayed by the controller. Table 3: Error messages Error displayed Cause Rectification NONE Correct operation WIPER POS. Wiper not is correct starting position Initiate wiper function, call service LED C.
  • Page 28 Faults, causes, rectification...

  • Page 29: Section 7 Replacement Parts And Accessories

    Section 7 Replacement parts and accessories 7.1 Sensor options Description Cat. no. ULTRATURB basic sc turbidity bypass sensor without cable LPV415.99.01001 ULTRATURB basic sc turbidity bypass sensor with 0.35 m (1.1 ft.) cable LPV415.99.11001 ULTRATURB basic sc turbidity bypass sensor with 1 m (3.3 ft.) cable LPV415.99.81001 ULTRATURB basic sc turbidity bypass sensor with 5 m (16.40 ft.) cable LPV415.99.21001...

  • Page 30: Accessories

    Replacement parts and accessories 7.3 Accessories Description Cat. no. Extention cable 1 m (3.3 ft.) 6122400 Extention cable 5 m (16.40 ft.) LZX848 Extention cable 10 m (32.81 ft.) LZX849 Extention cable 15 m (49.21 ft.) LZX850 Extention cable 20 m (65.62 ft.) LZX851 Extention cable 30 m (98.43 ft.) LZX852...

  • Page 31: Section 8 Limited Warranty

    On the basis of strict liability or under any other legal theory, in no event shall Hach Company be liable for any incidental or consequential damages of any kind for breach of warranty or...
  • Page 32 Limited warranty...

  • Page 33: Section 9 Contact

    HACH Company Repair Service in the Repair Service in Canada: Repair Service in World Headquarters United States: Latin America, the Carib- Hach Sales & Service bean, the Far East, Indian P.O. Box 389 HACH Company Canada Ltd. Subcontinent, Africa, Loveland, Colorado...
  • Page 34 Fax +385 (0) 42 305 087 info@hach-lange.si info@hach-lange.gr info@hach-lange.gr info@hach-lange.hr www.hach-lange.si www.hach-lange.gr www.hach-lange.gr www.hach-lange.hr HACH LANGE MAROC SAR- Villa 14 – Rue 2 Casa Plai- sance Quartier Racine Extension MA-Casablanca 20000 Tél. +212 (0)522 97 95 75 Fax +212 (0)522 36 89 34 info-maroc@hach-lange.com www.hach-lange.ma...

  • Page 35: Appendix A Modbus Register Information

    Appendix A ModBUS Register Information Table 5: Sensor ModBUS Registers Group Name Register # Data Type Length Description measurement 40001 Float diplayed measurement value unit 40003 Unsigned Integer unit parameter 40004 Unsigned Integer parameter reserved 40005 Unsigned Integer reserved correction 40006 Float correction...
  • Page 36 ModBUS Register Information Table 5: Sensor ModBUS Registers (continued) Group Name Register # Data Type Length Description user_cal_int 40082 Integer user cal int cal_out_cfg 40083 Integer cal. Output mode meas_mode 40084 Integer measure mode meas_val_format 40085 Integer measurement format meas_prec 40087 Integer measurement precesion...
  • Page 37 ModBUS Register Information...
  • Page 38 ModBUS Register Information...
