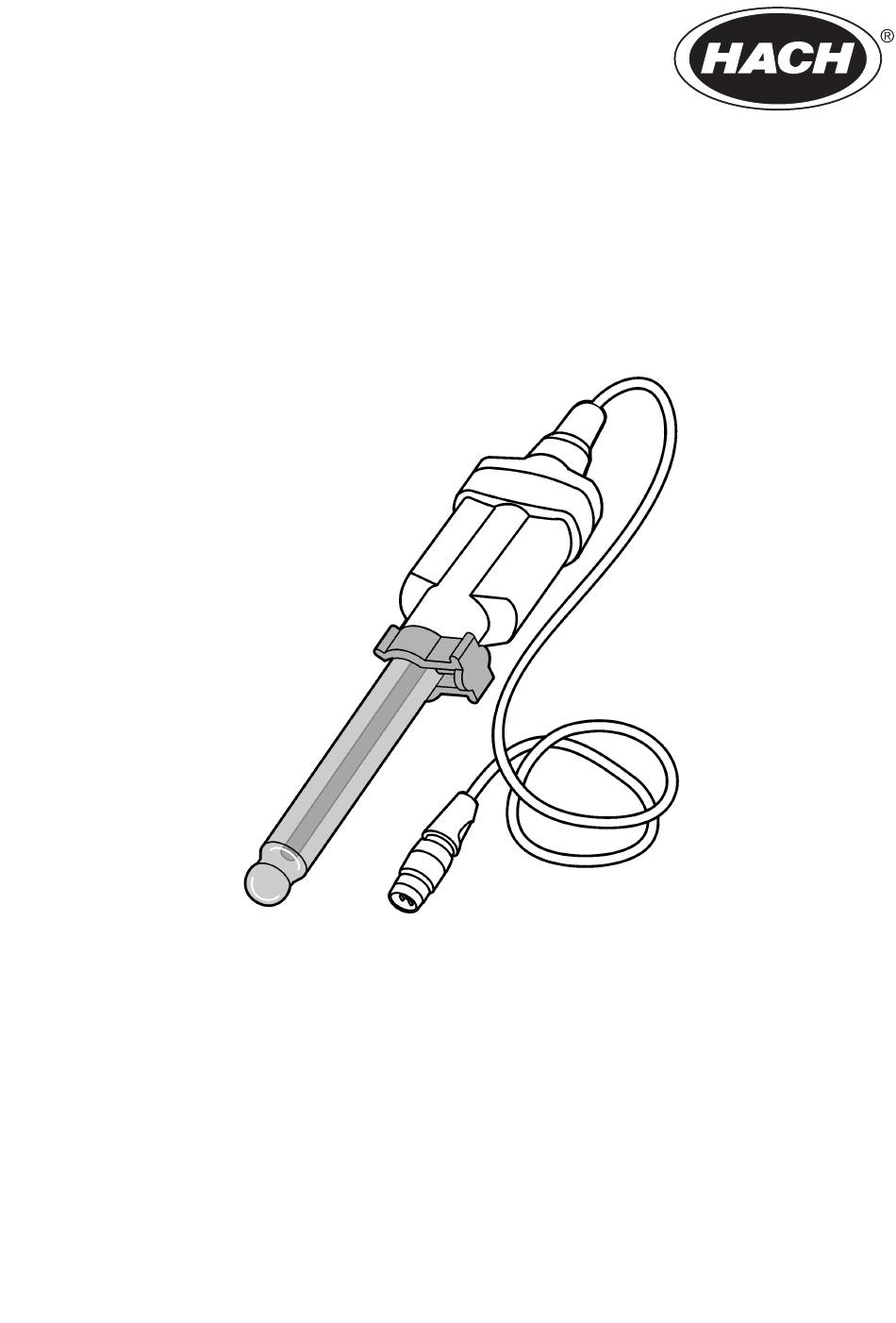

- Page 1 DOC022.53.80436 PHC805 05/2021, Edition 2 User Manual...
-
Page 3: Table Of Contents
Table of Contents Section 1 Product overview ................. 3 Section 2 Specifications ..................3 Section 3 Safety information ................4 3.1 Intended use ....................... 4 3.2 Use of hazard information ..................4 3.3 Precautionary labels ..................... 5 3.4 Product hazards ....................5 Section 4 Preparation for use ................ - Page 4 Table of Contents...
-
Page 5: Section 1 Product Overview

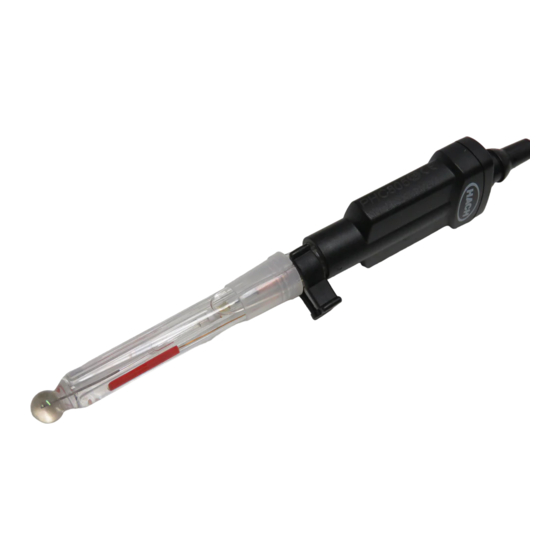

Section 1 Product overview The Intellical PHC805 pH probes are digital, combination electrodes that measure the pH of water samples. The probes have good performance in laboratory applications for general water samples. The probes are refillable and have a built-in temperature sensor and a ceramic porous pin for the reference junction. -
Page 6: Section 3 Safety Information
Minimum immersion depth 18 mm (0.71 in.) Body material Glass Electrolyte filling solution 3 M KCl Storage solution Hach pH electrode storage solution or 3 M KCl Cable connection M12 digital output and connector Dimensions Diameter: 12 mm (0.47 in.) Length: 200 mm (7.9 in.) total;... -
Page 7: Precautionary Labels
3.3 Precautionary labels Read all labels and tags attached to the instrument. Personal injury or damage to the instrument could occur if not observed. A symbol on the instrument is referenced in the manual with a precautionary statement. Electrical equipment marked with this symbol may not be disposed of in European domestic or public disposal systems. - Page 8 Figure 2 Remove the protective tape Figure 3 Probe position during use 1 Open filling hole 3 Level of calibration solution or sample 2 Level of electrolyte filling solution 6 English...
-
Page 9: Section 5 Calibration
Section 5 Calibration The procedure that follows is applicable to meters that can connect to Intellical pH probes. Refer to the applicable meter documentation for meter operation and probe-specific settings. 5.1 Calibration notes Read the notes that follow before calibration: •... -
Page 10: Section 6 Sample Measurement
5. Put the probe in 6. Shake the probe 7. Stir slowly, then 8. Continue with the first pH buffer from side to side to read the pH value of steps through solution. Make sure refresh the reference the buffer solution. the remaining that the sensor and junction and remove... -
Page 11: Sample Measurement Notes
6.2 Sample measurement notes Read the notes that follow before sample measurements. • Rinse the probe with deionized water and dry with a lint-free cloth between measurements to prevent contamination. • If complete traceability is necessary, enter a sample ID and operator ID before measurement. Refer to the meter manual for instructions. -
Page 12: Verification Procedure
7.1 Verification procedure 1. Go to the 2. Prepare or pour 3. Open the filling 4. Rinse the probe verification menu. the pH buffer hole. with deionized water. The display shows solution into a Dry the probe with a the pH buffer beaker. -
Page 13: Section 8 Maintenance
Section 8 Maintenance Regular maintenance is necessary for the best accuracy, stabilization time and life of the probe. Keep the probe in the recommended storage solution between measurements. 8.1 Clean the probe Clean the probe regularly to remove contamination and to keep the reference junction open. Symptoms of contamination: •... -
Page 14: Fill The Probe
8.2 Fill the probe Add electrolyte filling solution to the probe regularly to make sure that the electrolyte flows from the probe to the sample. Refer to Figure 4. Make sure to use the correct filling solution (3 M KCl). Note: If the dispensing tip becomes clogged, remove the dispensing tip and soak the tip in warm water. -
Page 15: Storage
N O T I C E Probes can become permanently damaged if kept in a storage solution that is not specified by the manufacturer. Use only the specified storage solution (Hach pH electrode storage solution or 3 M KCl). Do not store the probe in deionized water or in samples of low ionic strength. For short-term storage, the probe can stay in the sample for a maximum of 2 hours if the sample pH is not high. -
Page 16: Section 9 Troubleshooting
Section 9 Troubleshooting Keep the probe clean and in the recommended storage solution when not in use for the best accuracy, stabilization time and life of the probe. Problem Possible cause Solution The glass sensor is dirty. Clean and condition the probe. Refer to Clean the probe on page 11. -
Page 17: Section 10 Consumables
Note: Product and Article numbers may vary for some selling regions. Contact the appropriate distributor or refer to the company website for contact information. Description Quantity Item no. Hach pH electrode storage solution 500 mL 2756549 3 M KCl solution 50 mL... -
Page 18: Accessories
10.1 Recommended standards (continued) Description Unit Item no. pH 7.000 ± 0.010 at 25 °C (77 °F) 500 mL S11M004 pH 9.180 ± 0.010 at 25 °C (77 °F) 500 mL S11M006 pH 10.012 ± 0.010 at 25 °C (77 °F) 500 mL S11M007 pH 12.45 ±... - Page 20 Tel. +49 (0) 2 11 52 88-320 SWITZERLAND Fax (970) 669-2932 Fax +49 (0) 2 11 52 88-210 Tel. +41 22 594 6400 orders@hach.com info-de@hach.com Fax +41 22 594 6499 www.hach.com www.de.hach.com © Hach Company/Hach Lange GmbH, 2014, 2021. All rights reserved.
