OpenEye CM-306 Rev B Installation/Configuration

High Resolution Indoor
Dome Camera
Camera Installation & Configuration
CM-306 Rev B
model no:
Please carefully read these instructions before using this product.
Save this document for future use.
23221 E Knox Ave
Liberty Lake, WA 99019
1.888.542.1103
www.openeye.net
Precautions
• Do not attempt to dismantle the camera module mounted within the dome. There
are no user serviceable parts in the camera module. Refer servicing to a qualified
professional.
• Handle the camera with care. Do not abuse the camera. Avoid striking or shaking
it. Improper handling and storage could damage the camera.
• Do not operate the camera beyond its temperature or power source rating. Refer to
the environmental information provided in this document.
Emissions
• FCC COMPLIANCE: This equipment complies with Part 15 of the FCC rules for
intentional radiators and Class B digital devices when installed and used in ac-
cordance with the instruction manual. Following these rules provides reasonable
protection against harmful interference from equipment operated in a commercial
area. This equipment should not be installed in a residential area as it can radiate
radio frequency energy that could interfere with radio communications, a situation
the user would have to fix at their own expense.

General Specifications

Model No. CM-306 Rev B
Image Sensor 1/3" Sony CCD
Imaging DSP Sony Effio-E 2
IP Rating IP66
Type / Format NTSC
Wide Dynamic Range Yes, Digital Wide Dynamic Range
Minimum Illumination 0.3 Lux @ 50 IRE, 0.15 Lux @ 30 IRE
Day / Night Digital Day / Night
Resolution 700 TVL
Service Monitor Jack Yes
S/N Ratio >50dB
Focal Length 3.3 ~ 12 mm
Iris Control Auto
Synchronization Internal
Video Output 1.0Vpp 75Ω BNC Unbalanced
White Balance ATW, Manual, Push, Push Lock, User, Anti CR
Auto White Balance Range 2700K ~ 9700K
Backlight Compensation Full Range
Auto Gain Control 44.8 dB
30832AC
Operating Temperature 14˚ ~ 122˚ F (-10˚ ~ 50˚C)
Heater Yes
Power Consumption 12W
Rated Amperage 0.5 A (24vAC)
Input Voltage 12vDC / 24vAC (± 10%)
Weight 1.12 lbs (0.51 kg)
Dimensions ø5.35" (136 mm) x H: 3.7" (94.2 mm)
Housing / Dome Cover White / Clear
Hardware Kit Contents
• Wall anchors (x4)
• T3 1/4 screws (x4)
• Rubber washers (x4)
• Rubber caps (x4)
• ¾" threaded cable entry sealing plug (½" sealing plug fitted to enclosure)
• ½" cable entry grommets (¾" grommet fitted to enclosure)
• External OSD service board
• Torx Driver
• Wire-Ended Power Adapter Lead

Regulatory Compliance

Emissions FCC part 15 Class B
CE: EN55011
ICES-003
EN55022
CISPR 11
CISPR22
ANSI C63.4
Immunity CE: EN50130-4
FCC COMPLIANCE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in as
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try \to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced Radio/TV technician for help.
CISPR 22 WARNING:
This is a Class B product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
POWER SUPPLY REQUIREMENTS:
For use with listed Audio/Video product and only connected to 15W or less power supply.
*Power supply should be a NEC Class 2 / LPS Supply.
EQUIPMENT MODIFICATION CAUTION:
Equipment changes or modifications not expressly approved by the manufacturer, the party responsible for FCC
compliance, could void the user's authority to operate the equipment and could create a hazardous condition.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

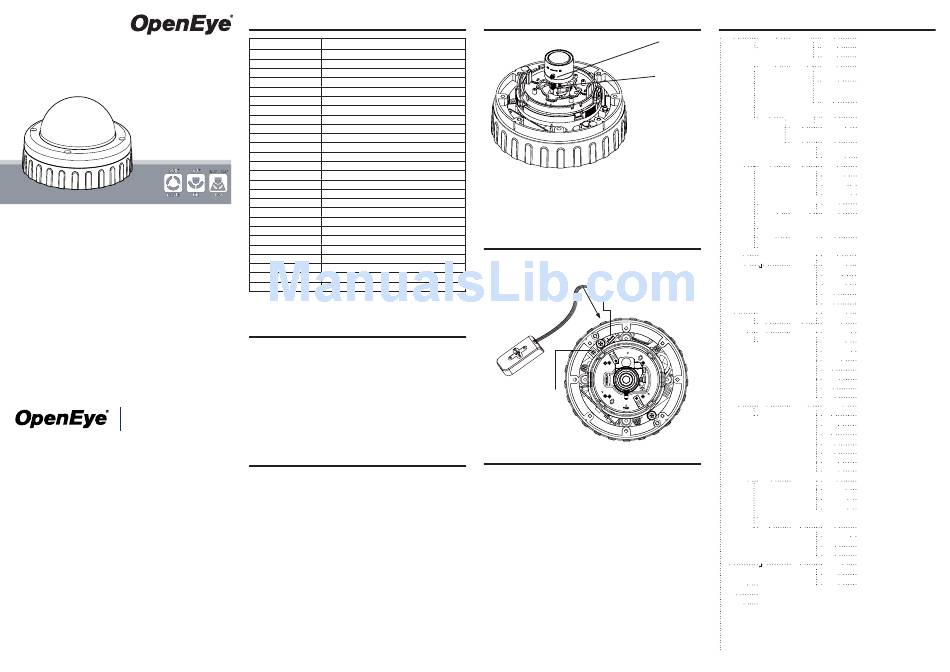

Camera Overview

A: Focus adjuster
B: Field of view adjuster

Camera Adjustments

The following illustration shows the external service board which allows you to control
the On Screen Display (OSD) and make any programming changes required.
C: Service board connector
D: Service jack

Adjusting the Camera

With the exception of the Focus (A) and Field of View (B) controls on the camera, all
settings are made using the keys on the OSD Service Board. When making adjust-
ments using the OSD Service Board, the camera must have power and be connected
to a video display.
1. Press ENTER to access the top level menu.
2. Use the arrow keys on the service board to navigate the OSD menu and use the
ENTER key to confirm your selections.
3. When you have completed the camera configuration, you must select EXIT to
save your changes.
4. If necessary, you can reset the camera to the factory default settings by selecting
RESET in the OSD menu.

Camera OSD Menu

A
Lens Manual Auto Iris Type
Auto Mode
Speed
Shutter / AGC Manual Manual Mode
Setup
B
Shutter
AGC
Auto Auto Setup Mode
High Brightness
Luminance
Low Mode
Luminance
Brightness
White Bal. ATW ATW Speed
Delay Cnt
ATW Frame
Environment
Push B-Gain
User 1/2 User 1/2 R-Gain
WB
Anti CR
Manual Manual WB Level
Push Lock
Backlight Off / BLC / HLC Mirror
Pict Adjust Pict Adjust Brightness
Contrast
Sharpness
Hue
Gain
ATR Off Luminance
On ATR Contrast
Motion Det On Motion Det Detect Sense
Off Block Disp
Monitor Area
Area Sel
Top
Bottom
Left
Right
Privacy On Privacy Area Sel
Off Top
Bottom
Left
Right
Color
Transp
Mosaic
Day / Night Auto Day / Night Burst
Delay Cnt
Day - Night
Night - Day
Color
B/W B/W Burst
IR Optimizer
Mode
Level
NR NR NR Mode
Y Level
Camera ID Off / On C Level
Sync Int
Language English / Chinese / Spanish / Portuguese / Russian / French / German / Japanese
Camera Reset
Exit
Next
Back
Save All
DC / Video
Open / Close / Auto
0 ~ 255
Shut + AGC
1/50 (1/60*), 1/100 (1/120*), 1/250
1/500, 1/1000, 1/2000, 1/4000,
1/10000
6.00, 12.00, 18.00, 24.00, 30.00,
36.00, 42.00, 44.80
Shut + Auto Iris / Auto Iris
0 ~ 255
Off / AGC
X0,25 / X0.5 / X0.75 / X1.0
0 ~ 255
0~ 255
X0.5 / X1.0 / X1.5 / X2/0
Indoor / Outdoor
0 ~ 255
0 ~ 255
0 ~ 255
Off / On
0 ~ 255
0 ~ 255
0 ~ 255
0 ~ 255
0 ~ 255
Low / Md / High
Low / Mdlow / Md / Mdhigh / High
0 ~ 127
Off / On / Enable
Off / On
1/4 ~ 4/4
0 ~ 244
0 ~ 244
0 ~ 474
0 ~ 474
1/4 ~ 4/4 (1/8 ~ 8/8**)
0 ~ 244
0 ~ 244
0 ~ 474
0 ~ 474
1 ~ 8
0.00 / 0.50 / 0.75 / 1.00
Off / On
Off / On
0 ~ 255
0 ~ 255
0 ~ 255
Off / On
Off / On
Auto / Center
0 ~ 31
Off / Y / C / Y/C
0 ~ 15
0 ~ 15
