OpenEye OPTIX CM-301 Installation Manual

Template
Surface Mount (wall or ceiling)
Using Quick Install Adaptor:
Cut a 1.5" (38mm) hole in the mounting surface as
indicated by T2. The hole can also be used for
cable access.
Using Locking Arms:
Cut a 4.3" (110mm) hole in the mounting surface as
indicated by T3. The hole can also be used for
cable access.
Cable Access Using Base Cable Entry
To thread the cables through the mounting
surface, cut a 3/4" (19mm) hole as
indicated by T4.
T1
T3
T5
US Single Gang Box
T1

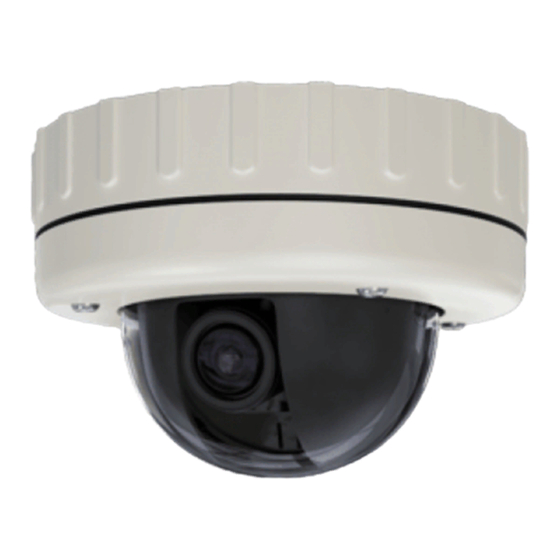

Vandal Proof Outdoor
Mini Dome
Installation Guide
model no.
Please carefully read these instructions before using this product.
Using Screws:
Drill four holes at template positions T1 and use the
screws and anchors provided in the screw kit if they
are appropriate for the mounting surface.
When mounting the camera on a surface with the
provided screws, use one of the side knock-outs, as
indicated on the template, for cable entry.
Note: When mounting on a US Single Gang Box,
use the pre-drilled holes in the dome base as
indicated by T5.
T2
T1
US Single Gang Box
T5
3/4" NPT
Cable Access
T4
T1

General Specifications

Model No.
Image Sensor
Imaging DSP
IP Rating
Type / Format
Wide Dynamic Range
Minimum Illumination
Day / Night
Horizontal TVL
CM-301
Service Monitor Jack
S/N Ratio
Focal Length
Iris Control
Synchronization
Video Output
White Balance
Auto White Balance Range
Backlight Compensation
Auto Gain Control
Operating Temperature
Heater
Power Consumpsion
Rated Amperature
Imput Voltage
Weight
Dimensions
Save this manual for future use.
29614AA Housing / Dome Cover

Hardware Kit Contents

• 1/2" Rubber Grommet
• 3/4" Rubber Grommet
• Screw Pack
• Torx Driver
• Wire-Ended Power Adaptor Lead
• Quick Install Adaptor

Camera Adjustments

A1 : Focus Adjuster
A2 : Field of View Adjuster

Regulatory Compliance

Emissions
Immunity
FCC COMPLIANCE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against armful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced Radio/TV technician for help.
CISPR 22 WARNING:
This is a Class B product. In a domestic environment this product may cause radio interference in which case the user
may be required to take adequate measures.
POWER SUPPLY REQUIREMENTS:
For use with listed Audio/Video product and only connected to 15W or less power supply.
*Power supply should be a NEC Class 2 / LPS Supply.
EQUIPMENT MODIFICATION CAUTION:
Equipment changes or modifications not expressly approved by seller.
The party responsible for FCC compliance could void the user's authority to operate the equipment and could create a
hazardous condition.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CM-301
1/3" Sony SuperHAD
Sony SS-11X
IP66
NTSC
No
1.2 lux @ F1.6 (50 IRE)
Yes
500 TVL
No
48dB
4~9 mm
DC Type Auto IRIS Control
INT
1.0Vpp, 75Ω Unbalanced
Automatic White Balance
2500 K ~ 9700 K
Central Area for DC IRIS Lens
Automatic
14ºF ~ 122ºF (-10ºC ~ 50ºC)
No
3.2W (Max)
0.27A (12vDC) / 0.13A (24vAC)
12vDC / 24vAC (±10%)
1.2 lbs (0.5 kg)
Dome : ø3.1" (80mm) x H: 1.7" (45mm)
Housing: ø5.5" (140mm) x H: 2.1" (55mm)
White / Clear
Angle Adjustment
ROTATE 360°
A1
A3
A2
TILT 90°
FCC part 15 Class B
CE: EN55011
ICES-003
EN55022
CISPR 11
CISPR 22
ANSI C63.4
CE: EN50130-4
Do Not Overturn
PAN 360°
RoHS
