RunCam Swift 2 User Manual

Hide thumbs Also See for Swift 2:

Advertisement

Quick Links

Download this manual
RunCam Swift 2
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Swift 2 and is the answer not in the manual?

Questions and answers

Related Manuals for RunCam Swift 2

Summary of Contents for RunCam Swift 2

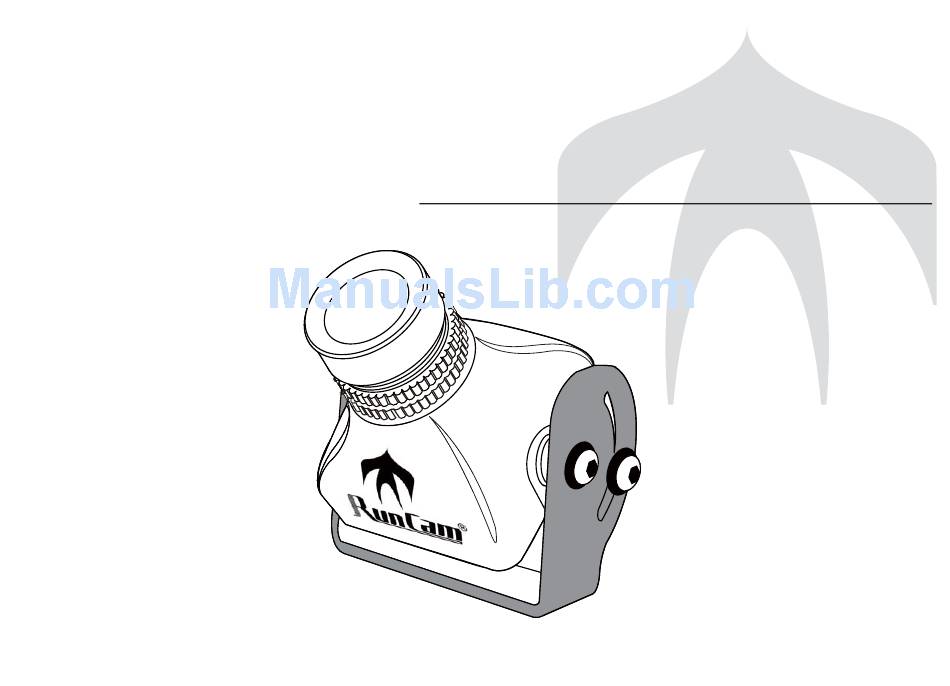

  • Page 1 RunCam Swift 2 USER MANUAL...
  • Page 2 Connection Unplug the 5D-OSD menu cable after OSD setting. Transmitter 2 pin extension cord Power in 5-36V in To VBAT+ Video out DOWN DOWN Audio out VBAT+ 5D-OSD menu cable...

  • Page 3: Dimensions & Installation

    Dimensions & Installation Nylon Gaskets M2*4 Screws 28.5mm M3*5 Screws M3 Non-slip Nuts...
  • Page 4 OSD Menu OSD Setting: Press and hold the UP button for 2 seconds to enter OSD setup menu. Customize the PILOT name: Use the UP, RunCam DOWN, LEFT and RIGHT buttons to 1234567890ABCDEFG navigate through the letters and HIJKLMNOPQRSTUVWX confirm with the CENTER button.
  • Page 5 · · Increase(LEFT button) or reduce (RIGHT button) 0.1V each press. Maximum adjustment range: ± 1v · · After adjustment, press the CENTER button to select the voltage, then press it again to save and exit. 01:08 16.8v RunCam...

  • Page 6: Camera Menu

    Camera Menu · · MAIN MENU · · EXPOSURE SETUP EXPOSURE CAM TITLE SHUTTER AUTO EXPOSURE BRIGHTNESS BACKLIGHT WHITE BAL ATW1 DWDR COLOR DAY & NIGHT RETURN IMAGE ADJ LANGUAGE ENGLISH RESET EXIT · · CAM TITLE (ON/OFF) · · SHUTTER (AUTO / 50-100000 / FLK) ·...

  • Page 7: Image Adj

    Camera Menu · · IMAGE ADJ IMAGE ADJ USER ADJ. LENS SHAD GAMMA 0.50 2DNR PED LEVEL MIRROR COLOR GAIN FONT COLOR RETURN CONTRAST SHARPNESS DISPLAY USER NEG IMAGE RETURN · · LENS SHAD (OFF/ ON:22 0-255) · · GAMMA (0.5 / 0.05-1.0) ·...
  • Page 8 Camera Menu · · BACKLIGHT (BLC / HLC / OFF) AREA SEL AREA1 LEVEL MODE ALL DAY AREA STATE GAIN RETURN HEIGHT WIDTH LEFT/RIGHT TOP/BOTTOM RETURN · · AREA SEL (AREA1/AREA2) · · LEVEL (200 / 0-255) · · GAIN (042 / 0-255 ) ·...
  • Page 9 Camera Menu DAY & NIGHT (AUTO / COLOR / B&W / EXT) · · D & N AUTO D & N B & W N LEVEL BURST N DELAY IR SMART D LEVEL IR LEVEL HIGH D DELAY RETURN RETURN ·...
  • Page 10 Model RunCam Swift 2 Image Sensor 1/3″SONY SUPER HAD II CCD Horizontal Resolution 600TVL Lens 2.5mm (Default) / 2.3mm / 2.1mm Signal System PAL/NTSC Integrated OSD Integrated MIC S/N Ratio >60dB (AGC OFF) Electronic Shutter Speed PAL: 1/50~100,000; NTSC: 1/60~100,000...
