RunCam Swift 2 User Manual

Hide thumbs Also See for Swift 2:

Advertisement

Table of Contents

See also: User Manual

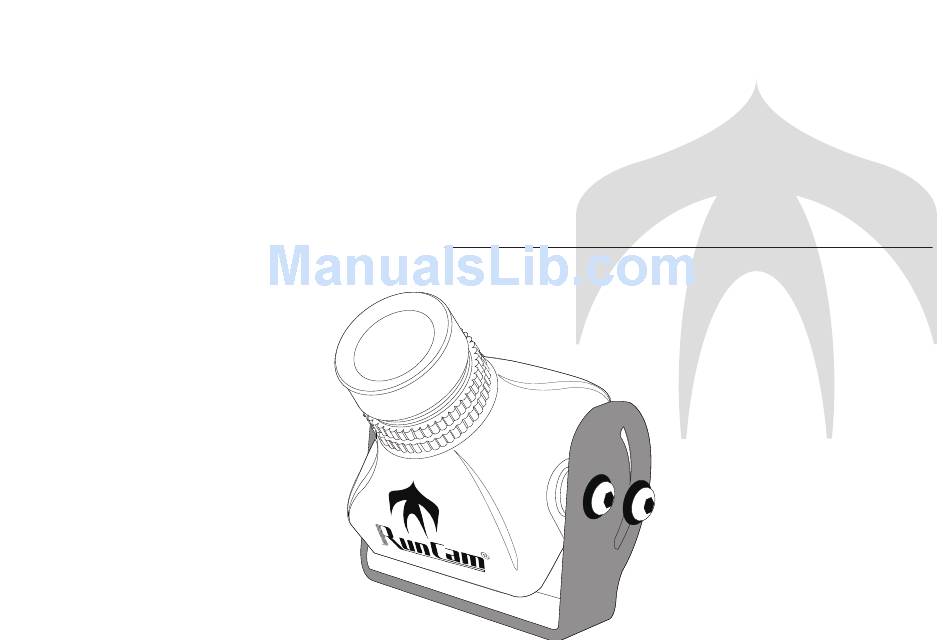

RunCam Swift 2
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Swift 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RunCam Swift 2

Summary of Contents for RunCam Swift 2

  • Page 1 RunCam Swift 2 USER MANUAL...
  • Page 2 Connection * Unplug the 5D-OSD menu cable after OSD setting. Transmitter 2 pin extension cord Power in 5-36V in To VBAT+ Video out Audio out DOWN VBAT+ 5D-OSD menu cable...

  • Page 3: Dimensions & Installation

    Dimensions & Installation Nylon Gaskets M2*4 Screws 28.5mm M3*5 Screws M3 Non-slip Nuts...

  • Page 4: Osd Menu

    OSD Setting: Press and hold the UP button for 2 seconds to enter OSD setup menu. Customize the PILOT name: Use the UP, DOWN, RunCam LEFT and RIGHT buttons to navigate through the 1234567890ABCDEFG letters and confirm with the CENTER button.

  • Page 5: Camera Menu

    Camera Menu · MAIN MENU · EXPOSURE SETUP EXPOSURE CAM TITLE SHUTTER AUTO EXPOSURE BRIGHTNESS BACKLIGHT WHITE BAL ATW1 DWDR DAY＆NIGHT COLOR RETURN IMAGE ADJ LANGUAGE ENGLISH RESET EXIT · CAM TITLE (ON/OFF) · SHUTTER (AUTO / 50-100000 / FLK) ·...

  • Page 6: Image Adj

    Camera Menu · IMAGE ADJ IMAGE ADJ USER ADJ. LENS SHAD GAMMA 0.50 2DNR PED LEVEL MIRROR COLOR GAIN FONT COLOR RETURN CONTRAST SHARPNESS DISPLAY USER NEG IMAGE RETURN · LENS SHAD (OFF/ ON:22 0-255) · GAMMA (0.5 / 0.05-1.0) ·...
  • Page 7 Camera Menu · BACKLIGHT (BLC / HLC / OFF) AREA SEL AREA1 LEVEL AREA STATE MODE ALL DAY RETURN GAIN HEIGHT WIDTH LEFT/RIGHT TOP/BOTTOM RETURN · AREA SEL (AREA1/AREA2) · LEVEL (200 / 0-255) · GAIN (168 / 0-255 ) ·...
  • Page 8 Camera Menu · DAY ＆ NIGHT（AUTO / COLOR / B&W / EXT) D＆N AUTO D＆N B＆W N LEVEL BURST N DELAY IR SMART D LEVEL IR LEVEL HIGH RETURN D DELAY RETURN · DAY NIGHT LEVEL (114 / 0-176) · BURST (OFF/ON) ·...
  • Page 9 Model RunCam Swift 2 Image Sensor 1/3″SONY SUPER HAD II CCD Horizontal Resolution 600TVL Lens 2.3mm Signal System Integrated OSD Integrated MIC S/N Ratio >60dB (AGC OFF) Electronic Shutter Speed 1/50~100,000 Auto Gain Control (AGC) Back Light Compensation (BLC) Min. Illumination 0.01Lux@1.2F...
