RunCam
User Manual
· ·

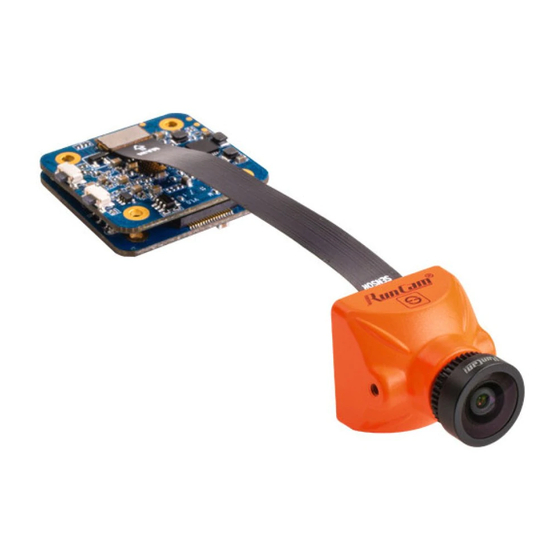

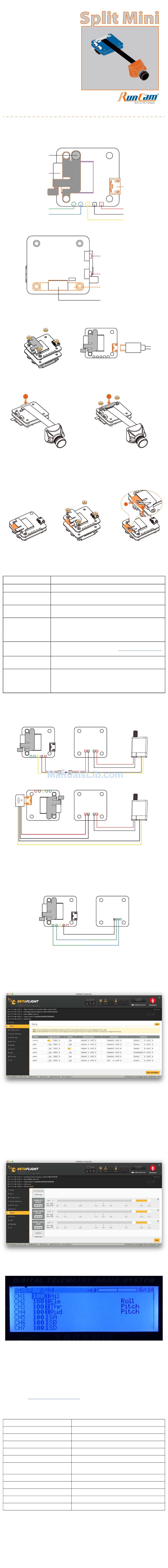

Instruction Diagram

Microphone
MicroSD Card
·Installation Diagram
·Lens Module Connection Diagram
1
Warning:
Please press the Metal Cover(showed above) to make sure the Sensor
Connector fixed steadily.
·Micro SD Card
Capacity up to 64GB; Please use high speed cards(Class10/UHS-I/UHS-II)
Please push the metal piece a little bit up with one hand like showed in above step 1
and then press the SD card(step 2) with another hand to let the card pop out.
·Basic Camera Operation
Powering On/Off
Standby Mode
Mode Switching
Video Mode
OSD Setup Mode
Firmware
Upgrading
Forced Shutdown
Reset
·Transmitter Connection Diagram
Method One (Recommended): connect by the soldering pads
Method Two: connect by the TV-out and power USB cable
Warning: USB port only supports DC 5V
·Flight Controller Set
Preparation
·
Firmware: CleanFlight (≥2.1.0) / BetaFlight (≥3.2.0)
·
Any available UART interface on the Flight Controller
1. Connect the RunCam Split Mini with the UART interface of the Flight Controller
2. Make the Flight Controller recognize the RunCam Split Mini
For example, we connect the RunCam Split Mini to the UART 3 interface on the Flight
Controller: connect the Flight Controller to the computer, then open the configurator
software of the Flight Controller. (Open up the configurator that matches the firmware
you are running, Betaflight Configurator for Betaflight, Cleanflight Configurator for
Cleanflight). In the Peripherals column of the line UART3 (on the Ports tab), select
RunCam Device and click Save And Reboot.
3. Instructions of the functions of the camera and assigning transmitter channels
to them
In the Flight Controller Configurator, navigate to the Modes tab. There are new
CAMERA WI-FI, CAMERA POWER and CAMERA CHANGE modes
·
CAMERA WI-FI: in the OSD of the camera, this is used to confirm your selection.
·
CAMERA POWER: start/stop the video. When in the OSD of the camera, this is used to
move to the next menu item.
·
CAMERA CHANGE MODE: switch among the two modes: video and OSD
setting mode. When in the OSD of the camera, this will exit the menu
Assign any available channel to the function you need, for example:
·
Assign the AUX1 to the CAMERA WI-FI, range 1900-2100
·
Assign the AUX2 to the CAMERA POWER, range 1900-2100
·
Assign the AUX3 to the CAMERA CHANGE MODE, range 1900-2100
4. Assign the channel to the switch of the controller
Please choose your Model on the controller, then access to the MIXER interface and
assign the channel to the switch of the controller. Take opentx 2.2.0 for example, assign
the channels CH5, CH6 and CH7 to SA, SB and SD respectively
5. Test
Power the Flight Controller and the RunCam Split Mini
·
Set the SA to the bottom, the camera starts/stops the video
·
Set the SD to the bottom, the camera switches among the two modes:
video and OSD setting mode
·Technical Support
Please visit:
https://support.runcam.com
·Parameter
FOV
Video Resolution
Video Files
Image Resolution
TV Output
Interface
Max Micro SD Card Supported
Hole Distance of Installation
Dimensions
Power Input
Working Current
Weight
TX
RX
Long press the Power/Shutter button
Camera Status Light:
In Standby Mode, long press the Mode Switch button to
cycle through the three modes: Video/Photos/OSD settings.
Camera Status Light:
Press the Power/Shutter button to start/stop recording.
Camera Status Light:
• Press the Power/Shutter button to move to a setting.
• Press the Mode Switch button to select.
• Long press the Mode Switch button to exit the menu.
Camera Status Light:
Simultaneously press the Power/Shutter button and
Mode Switch button.
In standby mode, press the Mode Switch button three times
in rapid succession (within 2 seconds). When resetting is
complete, the status light (orange) blinks twice, and the
camera automatically shuts down.
5-15V
5V
GND
GND
RX
TX
FPV FOV 130°/Recording FOV 165°
1080@60fps/1080@30fps/720@60fps
MOV
2 MP
NTSC (720*480)/PAL (720*576) Switchable
Micro USB / UART
64G(need Class 6 or above,
recommend Class 10/UHS-I/UHS-II)
20*20mm
PCB 27*29mm / Lens Module 19*19mm
DC 5-15V / DC 5V(USB)
650mA @5V/270mA @12V
15g
www.runcam.com
Side A
Side B
Power/Shutter Button
Mode Switch Button
Metal Cover
Sensor Connector
Warning:
USB port only supports DC 5V
Blue is On
Blue blinks
Orange is On
Orange blinks
PDB
5-15V
GND
Video
PDB
GND
Video
GND
Micro-USB
VCC +(5-15V)
GND
Video
USB
DC 5V
2
2
https://goo.gl/5Mq8zw
Video Transmitter
Power in
GND
Video Transmitter
Power in
GND
FC
UART Interface
TX
RX
1
