RunCam Phoenix HD Manual

Introduction
The RUNCAM LINK Digital FPV Air Unit is an advanced video transmission module that
supports a 5.8 GHz digital video signal and 1280 x 720 60fps image transmission, with a
transmission range of up to 4 km and a minimum end-to-end latency within 32 ms*. The air
unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote
controller to transmit video, control signals, and flight controller information wirelessly.

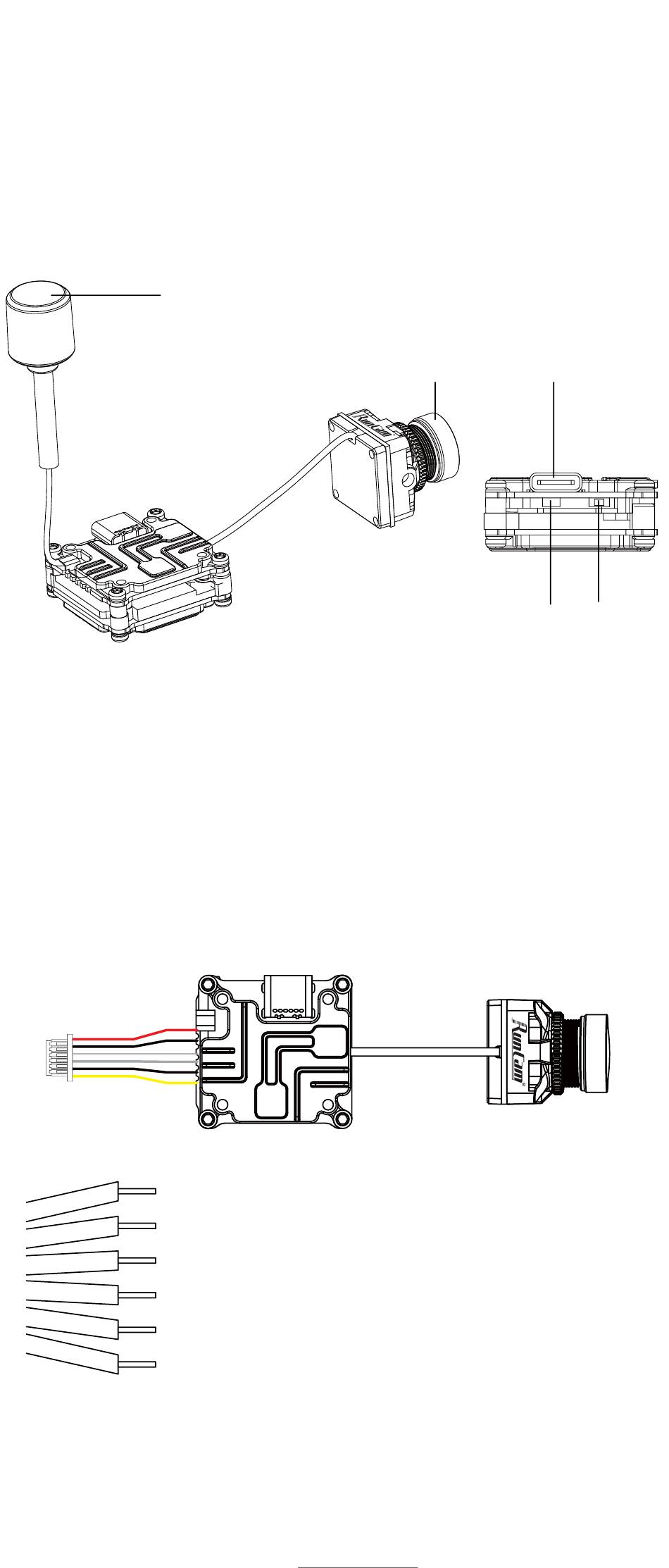

① IPEX Port Antenna
③ Type-C Port
⑤ Button
* The end-to-end latency is the total time from camera input to screen display. The device
is able to reach its minimum latency and maximum transmission distance (FCC) in a wide
open area with no electromagnetic interference
Connection
Refer to the illustration below to mount and connect the air unit to a racing drone.
② Camera
④ LED
①
RED: Power (7.4-17.6 V)
BLACK: Power GND
WHITE: UART-RX
GRAY: UART-TX
BLACK: Signal GND
YELLOW: DJI HDL
Technical Support
Please visit: https://support.runcam.com
②
(Connects to Flight Controller OSD TX, 0-3.3 V)
(Connects to Flight Controller OSD RX, 0-3.3 V)
(Connects to Flight Controller S.Bus, 0-3.3 V)
③
④ ⑤
