RunCam New Swift 2 User Manual

Hide thumbs Also See for New Swift 2:

Advertisement

Quick Links

Download this manual
RunCam New Swift 2
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the New Swift 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RunCam New Swift 2

Summary of Contents for RunCam New Swift 2

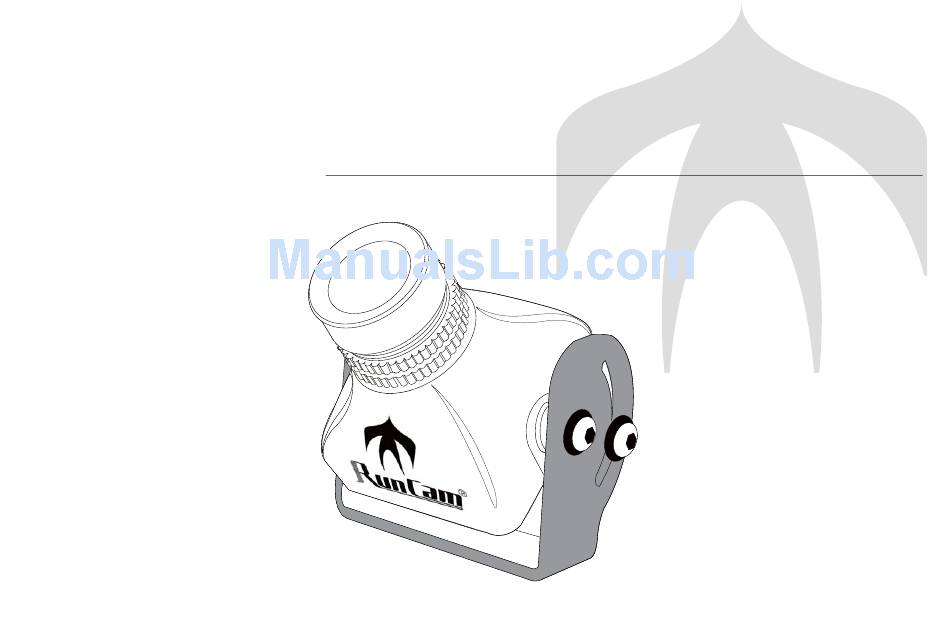

  • Page 1 RunCam New Swift 2 USER MANUAL...
  • Page 2 Connection Unplug the 5D-OSD menu cable after OSD setting. Transmitter 2 pin extension cord Power in 5-36V in To VBAT+ Video out ENTER Audio out DOWN VBAT+ RunCam 1x OSD Key-press Board...

  • Page 3: Dimensions & Installation

    Dimensions & Installation Nylon Gaskets M2*4 Screws 28.5mm M3*5 Screws M3 Non-slip Nuts...

  • Page 4: Osd Menu

    flashes, press UP/DOWN button to adjust it · · Long press DOWN button for five seconds to reset OSD settings to default · · Long press RIGHT button for three seconds to 16.8V RUNCAM 01:08 switch between the camera presets...
  • Page 5 ALARM: low voltage warning value, smartly R S T U V W X Y Z = / & : . judge the warning value of the battery when RUNCAM it's low; if set it manually, then it saves the ALARM : 14.8V...

  • Page 6: Camera Menu

    Camera Menu · · MAIN MENU · · EXPOSURE SETUP EXPOSURE EXPOSURE SHUTTER AUTO BACKLIGHT BRIGHTNESS WHITE BAL ATW1 COLOR DAY & NIGHT DWDR IMAGE ADJ RETURN LANGUAGE ENGLISH RESET EXIT · · SHUTTER (AUTO / 50-100000 / FLK) · · LANGUAGE (English/中文) ·...

  • Page 7: Image Adj

    Camera Menu · · IMAGE ADJ IMAGE ADJ LCD ADJUST LENS SHAD GAMMA 2DNR PED LEVEL MIRROR COLOR GAIN FONT COLOR RETURN CONTRAST SHARPNESS DISPLAY NEG IMAGE RETURN · · LENS SHAD (OFF / ON:22 0-255) · · GAMMA (0.5 / 0.05-1.0) ·...
  • Page 8 Camera Menu · · BACKLIGHT (BLC / HLC / OFF) AREA SEL AREA1 LEVEL AREA STATE MODE ALL DAY GAIN RETURN HEIGHT WIDTH LEFT/RIGHT TOP/BOTTOM RETURN · · AREA SEL (AREA1/AREA2) · · LEVEL (200 / 0-255) · GAIN (168 / 0-255 ) ·...
  • Page 9 Camera Menu DAY & NIGHT (AUTO / COLOR / B&W / EXT) · · D & N AUTO D & N B & W N LEVEL BURST N DELAY IR SMART D LEVEL IR LEVEL HIGH RETURN D DELAY RETURN ·...
  • Page 10 Model RunCam New Swift 2 Image Sensor 1/3″SONY SUPER HAD II CCD Horizontal Resolution 600TVL Lens 2.5mm (Default) / 2.3mm / 2.1mm Signal System PAL/NTSC Integrated OSD Integrated MIC S/N Ratio >60dB (AGC OFF) Electronic Shutter Speed PAL: 1/50~100,000; NTSC: 1/60~100,000...
  • Page 11 www.runcam.com...
