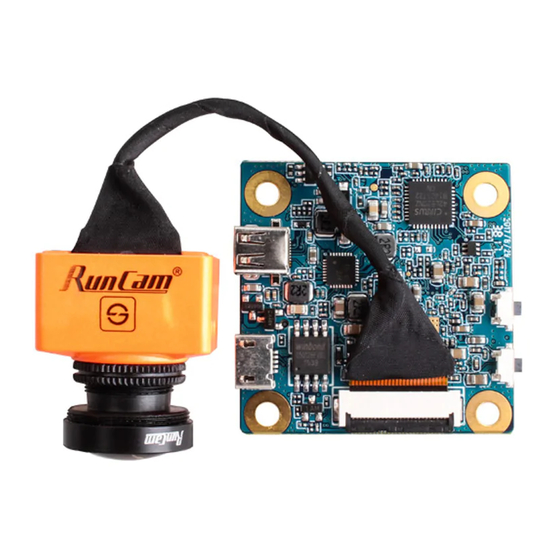

Runcam Split 2 User Manual

Instruction diagram

Side A

LED 1: Blue ——WiFi status light
LED 2: Green ——Photo mode status light
LED 3: Blue —— Video mode status light
LED 4: Orange —— OSD Setup status light
LED 5: Red —— Power status light, it's always on after being powered

Side B

Installation Diagram

USB port only supports DC 5V

MicroSD Card

Capacity up to 64GB; Please use high speed cards(Class10/UHS-I/UHS-II).

Please push the metal piece a little bit up with one hand like showed in above step 1 and then press the SD card(step 2) with another hand to let the card pop out.

Lens module connection diagram

Please push upward the black locking arm before you unplug the lens cable in case the connector is destroyed. And Golden fingers on ends of the lens cable should face to the opposite of each other. For more details about how to connect the lens cable properly, you may refer to: https://goo.gl/PoGg1T

Basic Camera Operation

Note: Recording automatically after turing on by default, with the V1.0 firmware, under the video status, short press WIFI/MODE SWITCH button to pause/start the recording. With the V1.1 and later firmware, under the video status, short press WIFI/MODE SWITCH button to stop the recording and turn on the WIFI; Under the standby mode, the function of the WIFI/MODE SWITCH button doesn't change.

Transmitter connection diagram

Method One (Recommended)

Connect by the soldering pads

Method Two

Connect by the TV-out and power USB cable

USB port only supports DC 5V

Flight Controller Set

Preparation

• Firmware: CleanFlight (≥2.1.0) / BetaFlight (≥3.2.0)
• Any available UART interface on the Flight Controller

Connect the RunCam Split 2 with the UART interface of the Flight Controller

Make the Flight Controller recognize the RunCam Split 2

For example, we connect the RunCam Split 2 to the UART 3 interface on the Flight Controller: connect the Flight Controller to the computer, then open the configurator software of the Flight Controller. (Open up the configurator that matches the firmware you are running, Betaflight Configurator for Betaflight, Cleanflight Configurator for Cleanflight). In the Peripherals column of the line UART3 (on the Ports tab), select RunCam Device and click Save And Reboot.

Instructions of the functions of the camera and assigning transmitter channels to them

In the Flight Controller Configurator, navigate to the Modes tab. There are new CAMERA WI-FI, CAMERA POWER and CAMERA CHANGE modes.

• CAMERA WI-FI: turn on/off the WIFI of the camera. When in the OSD of the camera, this is used to confirm your selection.
• CAMERA POWER: start/stop the video. When in the OSD of the camera, this is used to move to the next menu item.
• CAMERA CHANGE MODE: switch among the three modes, video, photo and OSD setting mode. When in the OSD of the camera, this will exit the menu.

Assign any available channel to the function you need, for example:

• Assign the AUX1 to the CAMERA WI-FI, range 1900-2100
• Assign the AUX2 to the CAMERA POWER, range 1900-2100
• Assign the AUX3 to the CAMERA CHANGE MODE, range 1900-2100

Assign the channel to the switch of the controller

Please choose your Model on the controller, then access to the MIXER interface and assign the channel to the switch of the controller. Take opentx 2.2.0 for example, assign the channels CH5, CH6 and CH7 to SA, SB and SD respectively.

Test

Power the Flight Controller and the RunCam Split 2

• Set the SA to the bottom, the camera starts/stops the video
• Set the SB to the bottom, the camera turns on/off the WIFI
• Set the SD to the bottom, the camera switches among the three modes: video, photo and OSD setting mode

App(Android | iOS)

Search 'RunCam App' on Google Play/Apple Store, or download on our website:
https://www.runcam.com/download/runcamsplit2
Default SSID: RCSplit_ ****** (* for letters or numbers)
Default WiFi password: 1234567890

Technical Support

Please visit: https://support.runcam.com

Parameters

www.runcam.com
