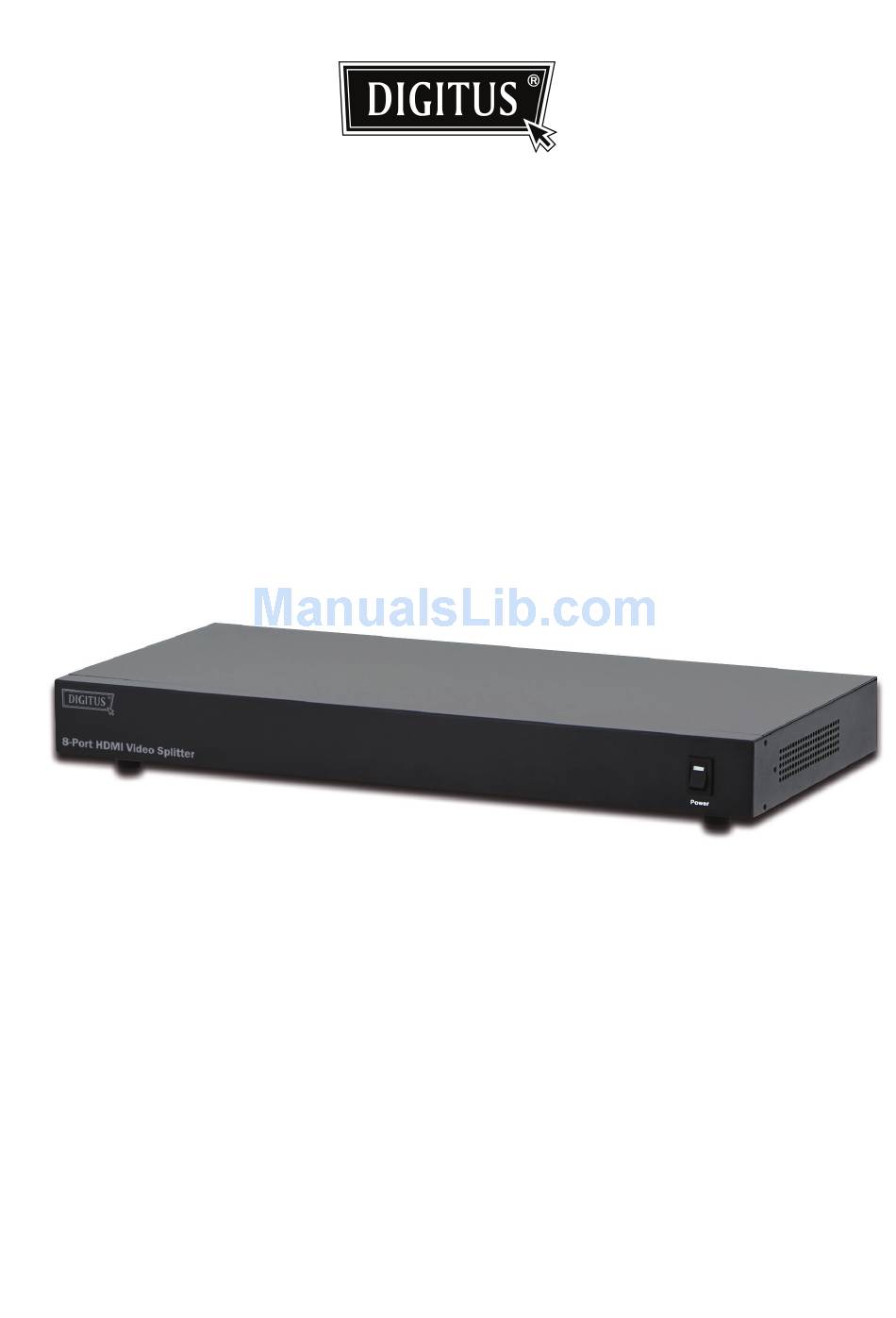

8-PORT HDMI VIDEO SPLITTER User Manual DS-43110... - Page 2 Table of Contents Introduction ..................2 Specifications ................. 2 Package Contents ................3 Panel Descriptions ................. 4 Connection and Operation ............4 ２...
- Page 3 HDMI 8Ports Splitter Amplifier by Cat5 x1 Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1.0 Introduction This HDMI Splitter is an HDMI splitter with eight RJ45 outputs.
-
Page 4: Specifications
2.0 SPECIFICATIONS Signal Inputs/Output Input DDC Signal 5 volts p-p (TTL) Maximum Single Link Range 1920X1080p Output Video HDMI Operating Frequency Video Amplifier Bandwidth 1.65Gpbs/165MHz Vertical Frequency Range 50/60Hz Resolutions(HDTV) Interlaced(50&60Hz) 480i,576i,1080i Progressive(50&60Hz) 480p,576p,720p,1080p Mechanical Size of HDMI 8Ports Splitter Amplifier (L-W-H) 441×202×45mm Weight of HDMI 8Ports Splitter Amplifier (Net) 2218g... -
Page 5: Panel Descriptions
4.0 Panel Descriptions 5.0 ConnectION and OperatION Connect the single HDMI source (such as HD-DVD, PS3, STB ) to the main HDMI input using a piece of HDMI cable. Connect each piece of CAT-5e/6 cable to both of the output of the HDMI 8-Ports Splitter Amplifier and input of the Receiver. - Page 6 5.1 CONNECTION DIAGRAM ６...
