CoolShell CS-5U QuickStart Guide

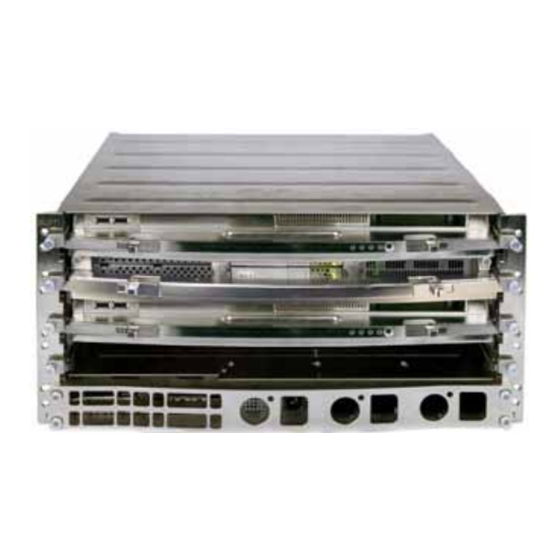

CS-5U
Package Contents
Sales Demo Configuration 1.4
PN 117219-922
1. One CS-5U chassis, assembled, including:
• 2CPU Blades PN 116899-916
• 1 IO blade PN 117197-922
• 1 CMAC
• 3 850W PSUs
• 2 dual disk canisters PN 117198-L01
w/ 3ea. 117343-L01 1TB disks
• 3 power cords
• 2 SFP+ Optical Modules
2. This printed guide
•
Note: SAVE the packing materials for
reuse when returning system.
System Notes
I/O and Processor Blade Configurations
Each Processor Blade has two E5540 processors and
24GB of memory (3x4GB for each processor). PCI-e
path with NVIDIA® Tesla
attach to Processor Blade 2. SATA paths resourced so
each processor blade has access to one disk canister.
Disk Canister B1 is allocated to Processor Blade 1.
Disk canister B2 is allocated to Processor Blade 2.
IMPORTANT! Note the position of each compo-
nent in the Slot Diagram. The position of each
component in the chassis is mandatory for this
revision of the chassis management software. (A
future revision will support user configuration of
chassis slot and IO bay assignments). Each com-
ponent will be marked with a unique identifying
number.
Themis Computer
20-series wired "up" to
TM
Quick Start Guide
Slot 1: Processor Blade 1
Slot 2: I/O Blade 1
Slot 3: Processor Blade 2
Slot 4: Empty
Empty
PSU A
CMAC
I/O Blade Configuration
Bay A
Bay B
Empty
Storage Canister (B1)
Empty
Storage Canister (B2)
Version 1.0
Slot Diagram
PSU B
PSU C
Bay C
Tesla
1
Advertisement
Table of Contents
Related Manuals for Themis CS-5U
Summary of Contents for Themis CS-5U
-
Page 1: Quick Start Guide

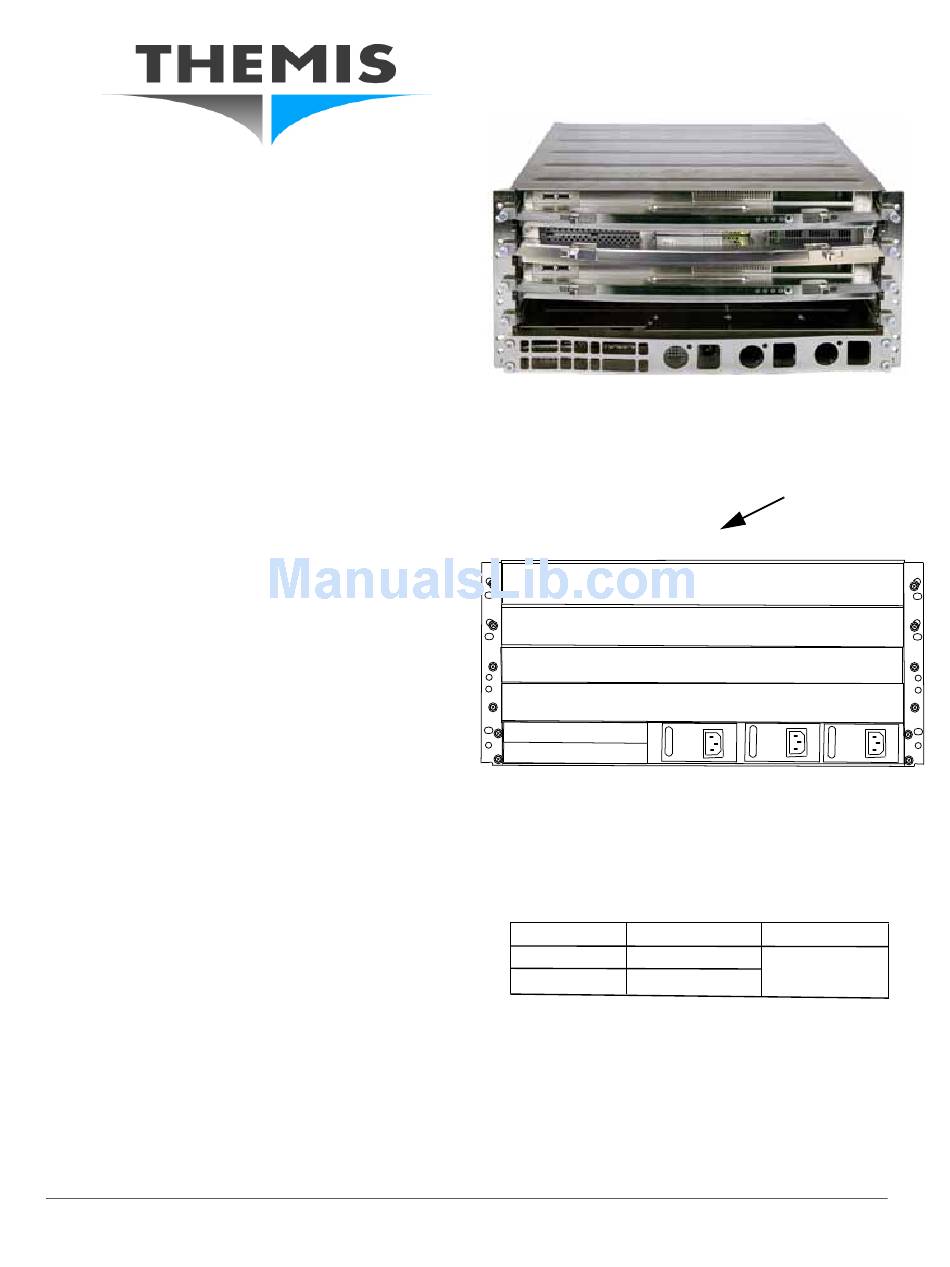

Quick Start Guide CS-5U Package Contents Sales Demo Configuration 1.4 PN 117219-922 1. One CS-5U chassis, assembled, including: • 2CPU Blades PN 116899-916 • 1 IO blade PN 117197-922 • 1 CMAC • 3 850W PSUs • 2 dual disk canisters PN 117198-L01 Slot Diagram w/ 3ea. -
Page 2: Power Supply Removal
Safety Latches up CMAC Removal • Remove the lower panel cover, (if Installed), cover- ing the lower rack of the CS-5U Chassis by Blade Latch closed unscrewing the four (4) captive thumb screws hold- ing it on. - Page 3 CoolShell CS-5U QuickStart Guide Version 1.0 Initial Setup and Operation Themis System Management Management of the CS-5U is accomplished by connect- ing a web browser to an HTTP server on the CMAC. ADMIN User Name: One must configure the CMAC to operate on the host...
- Page 4 CoolShell CS-5U QuickStart Guide Version 1.0 CS-5U may be shut down as a whole, or each pro- Management Control Panel cessor blade may be shut down individually, along System System User Remote Maintenance System Management Control Information Monitoring Configuration with its associated I/O blade, or each I/O blade may be shut down individually.
