Foscam FI9821W Quick Installation Manual

Quick Installation Guide

（For Windows & Mac OS）

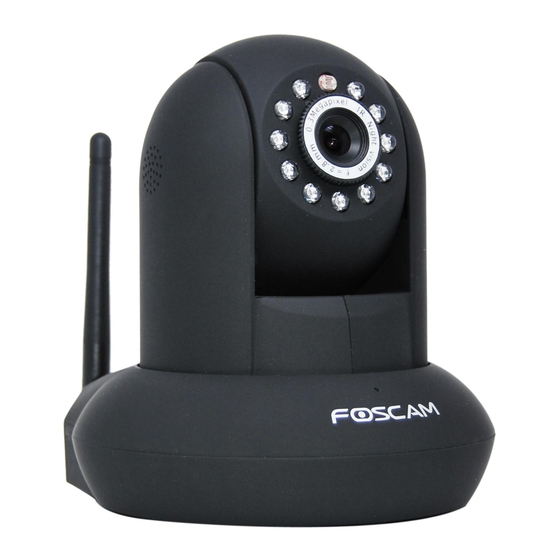

Indoor HD Pan/Tilt Wireless IP Camera
Model: FI9821W
Black White
Foscam Digital Technologies
www.foscam.us www.foscam.ca www.foscam.co.uk
www.foscamgroup.com www.foscam.com

Package Contents

IP Camera Power Adapter Resource CD
Quick Installation Guide
（For Windows & Mac OS）
Indoor HD Pan/Tilt Wireless IP Camera
Model: FI9821W
Black White
Mounting Bracket Wi-Fi Antenna Quick Installation Guide

Security Warning

Foscam cameras require good security practices to
safeguard your privacy. You can help protect your camera
by changing the default username and/or password.
You should update your camera regularly at
http://www.foscam.us/firmware.html. Make sure your
camera has the latest firmware installed for your specific
camera model.
V4.1
EE200416
2

Software Installation

1. Insert the CD into the CD drive of your computer.
2. Go to the folder "IP Camera Search Tool" and find the folder
"For Windows OS" or "For Mac OS" . Copy and paste the IP camera
tool file to your computer, or drag it onto your desktop.
Shortcut icon for Windows OS Shortcut icon for Mac OS
Notes:
If your computer ( Windows OS ) supports autorun function , you
can find the corresponding file in the opened control panel .
If your computer doesn't have CD drive, you can download
the IP camera tool from our website for free.
1

Hardware Introduction

Physical Description
Ethernet Cable
ANT
Antenna
DC 5V
LAN WPS AUDIO
Micro SD Input
Security Warning Card
OU T IN
Power
Output
Micro SD Card Slot
Network light
Power light
WPS
3

Access the Camera

1. Enable the DHCP feature of your router (Enabled by default
normally), then open the IP Camera Tool program. It should
display the camera's IP address in your LAN (Local Area Network).
2. Double click the camera listed here, and your default browser
will open up to the camera's login page. When log in for the first
time, you will need to download and install the add-on. We will
use Internet Explorer as an example. For Google Chrome, Apple
Safari, or Mozilla Firefox, please refer to the User Manual.
Note：
Foscam cameras do not support 64-bit browsers, such as IE9 64-Bit.
Hardware Connection
Speaker
LENS
Infrared LED
1. Mount the antenna and make it stand vertically.
Microphone
2. Connect the camera to the LAN network (Router or
Switch) via network cable.
3. Connect the power adapter to the camera.
Mounting Port Reset Button
3. After installing the add-on, refresh the browser and click
Login.
4. When you log in for the first time, it will request that you
modify the default username and/or password. Input the
New username, New password, and Confirm the
password click Modify to complete the modification. You
,
will now use the new username and password to login to
the camera in the future.
Click Install
ANT
o AUDIO
SD WPS
OUT IN
WPS
Default user is admin with no
password
Main stream offers the highest
quality video while Sub stream
offers less quality, but also less
delay when viewing.
Input the New username,
New password and
Confirm the password.
