Foscam FI9818W User Manual

Foscam FI9818W User Manual

Indoor hd ip camera
Hide thumbs Also See for FI9818W:
Table of Contents

Advertisement

Quick Links

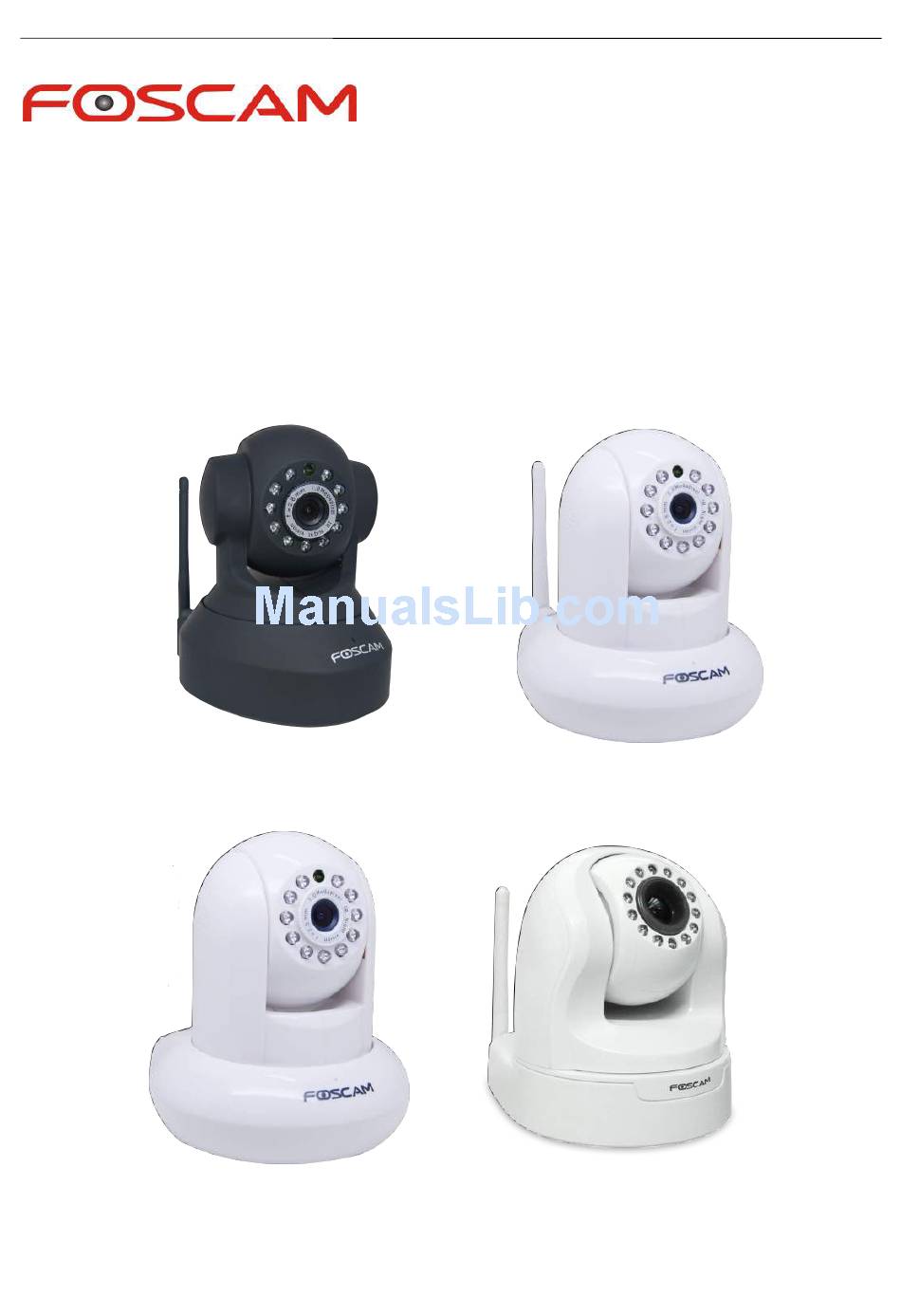

V2.0
User
Manual
User
Manual
Indoor HD IP Camera
Model:FI9818W
Model:FI9821W / FI9821P
Colour:Black/White
Colour:Black/White
Model:FI9821EP
Model:FI9826W / FI9826P
Colour:Black/White
Colour:Black/White

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FI9818W and is the answer not in the manual?

Questions and answers

Related Manuals for Foscam FI9818W

Summary of Contents for Foscam FI9818W

  • Page 1 V2.0 User Manual User Manual Indoor HD IP Camera Model:FI9818W Model:FI9821W / FI9821P Colour:Black/White Colour:Black/White Model:FI9821EP Model:FI9826W / FI9826P Colour:Black/White Colour:Black/White...
  • Page 2 V2.0 Model:FI9831W / FI9831P Model:FI9831EP Colour:Black/White Colour:Black/White Model:FI9816P/FI9815P Colour:Black/White...

  • Page 3: Table Of Contents

    6 Appendix................................84 6.1 Frequently Asked Questions........................84 6.2 Default Parameters...........................91 6.3 Specifications.............................92 6.4 CE & FCC..............................102 6.5 Warranty..............................103 7 Obtaining Technical Support..........................106 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 4: Overview

    1 Overview FOSCAM Indoor HD IP Camera is an integrated wireless IP Camera with a color CMOS sensor enabling viewing in High Definition resolution. It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop and mobile devices from anywhere on your local network or over the Internet.

  • Page 5: Poe (Power Over Ethernet)

    Support SD Card storage up to 32GB Support IR-Cut auto switch Embedded free FOSCAM DDNS(dynamic domain name service) Service Supporting the Third Party Domain Name Service Support two-way audio Support ONVIF protocols Multi-level users management with password protection Motion detection alert via email or upload image to FTP...

  • Page 6: Physical Description

    LAN: 10/100 Mbps RJ-45 port for wired connection Power: DC 5V/2A Power supply Network Light: The LED will blink slowly in wired connection, blink two times faster in wireless Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 7: Bottom View

    4.Wi-Fi Module Label: There is Wi-Fi MAC address and serial number of the Wi-Fi module on the label NOTE： The different features between the models involved Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 8 × × √ FI9815P 1280*720 × × √ Detachable √ FI9816P 1280*720 × × √ Detachable √ FI9815P 1280*720 × × √ Detachable √ Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 9: Access The Ip Camera

    DDNS URL, the webpage may pop up a warning like the following picture, you just need to click “Continue to this website (not recommended).” Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 10 Next, click the Security tab, then click the Trusted sites button.Finally ,click the Confirm button。 Figure 2.4 For Firefox, you can add the trusted as the following way: Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 11 Tools --Options -- Advanced -- View Certificates -- Servers Figure 2.5 Click View Certificates, and go to Servers option. Figure 2.6 Go to Add Exception panel. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 12: Access The Camera In Wan

    To obtain your WAN IP address, enter the following URL in your browser: http://www.whatismyip.com. The webpage at this address will show you the current WAN IP. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 13: Dynamic Ip Addresses

    All cameras have the default HTTP port of 88. For example, if the LAN IP link of the camera is http://192.168.8.102:88, this means that the camera’s HTTP port is 88. You can change port 88 to Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 14 Step 2: Enter the username and password of the Administrator (default username is admin with a blank password), and click “OK” to apply changes. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 15 Step 2: Create a new column using the LAN IP address & HTTP Port of the camera within the router as shown below, then push OK or Submit to save your settings: Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 16 Use the embedded DDNS to access the camera via the Internet Each Foscam camera has an embedded unique DDNS domain name, the format of this domain name is xxxxxx.myfoscam.org. On the bottom of the camera, you can see the domain name sticker with this information on it.

  • Page 17: Using The Vlc Player

    NOTE : If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.
  • Page 18 Figure 2.14 Figure 2.15 Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time preview. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 19: Ip Camera Connection To The Server

    2.4 IP camera connection to the server Device supports ONVIF 2.2.1 protocol, You can easily access the NVR with ONVIF or server with ONVIF. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 20: Surveillance Software Gui

    Input the new username and password, click "Modify" to complete the modification. You will now use the new username and password to login to the camera in Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 21: Setup Wizard

    IP configuration. Figure 3.3 Device Name: You could give name for your camera. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 22 System Time: Select the time zone you need to set the date, time,format and so on. Figure 3.5 Wireless networks: Click “Scan”, find the SSID of your wireless router, select and enter the password. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 23 IP: Set IP address of the camera. You could choose to obtain an IP automatically or set the IP address according to your needs. Figure 3.7 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 24: Surveillance Window

    Path to Administrator Control Panel, Click it, and it will lead to Administrator Control Panel and do advanced settings. : Click this button and back to the Playback panel to view the stored audio files stored in the SD Card.( FI9818W has not this section.) Section 2 Multi-Device Window The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same time.
  • Page 25 When the bandwidth is very narrow, and bit rate is large, that will lead to video can not play well. You can reset the stream type on “Settings-> Video-> Video Settings” panel. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 26 You can adjust the speed of the lens’ zoom at Settings--PTZ--Pan & Tilt Speed--Zoom speed. Figure 3.11 NOTE : Except for FI9826W and FI9826P, other Cameras don’t support this function. Section 5 Pan/Tilt Control Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 27: Preset Settings

    Select one of these. Secondly: Click Start cruise button, the camera will cruise following the predefined path. Thirdly: Click stop button and finish cruising. Preset settings Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 28 IR led lights schedule time, please go to Settings--->Video---> IR LED Schedule page. Section 8 Image quality settings In this page, you can tune Hue, Brightness, Contrast, Saturation, and Sharpness to get higher quality. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 29 Double click again and exit full-screen. Onscreen Mouse Control Right click the mouse and you can adjust the screen ration, full screen and Zoom up. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 30 Second Method: Click it and the live view will be digital zoomed up, then click Zoom Down and the live view back to original size. Figure 3.13 When you select the Full Screen, then click right mouse, there is a Screen PTZ button. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 31: Advanced Camera Settings

    Click the button “Settings”, goes to Administrator Control Panel to make advanced camera settings. 4.1 Setup Wizard Please go to section 3.2 to find the way to set it. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 32: Status

    4.2.2 Device Status On this page you can see device status such as Alarm status/ Record Status ,DDNS status ,WIFI status and so on. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 33: Session Status

    Session status will display who and which IP is visiting the camera now. Figure 4.3 4.2.4 Log The log record shows who and which IP address accessed or logout the camera. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 34: Basic Settings

    Figure 4.5 4.3.2 Camera Time This section allows you to configure the settings of the internal system clocks for your camera. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 35: User Accounts

    Here you can create users and set privilege, visitor, operator or administrator. The default user account is admin, with a blank password. You can enter the users accounts of visitor, operator and administrator Manually. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 36: How To Change The Password

    Select one blank column, then enter the new user name, password and privilege, last click Add to take effect. You can see the new added account on the Account list. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 37 Firstly, select the account which you want to change the username, then select “Change username”, enter the new password, lastly click modify to take effect. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 38 The firmware within the camera can support a maximum of 9 devices monitoring all at the same time. This page you can both add FOSCAM MJPEG and H.264 series cameras to the first camera and view multi-surveillance screen on one window.
  • Page 39 Figure 4.13 Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 40 Firstly, make sure all of the cameras you added can be accessed through the internet. (The way to configure DDNS is in chapter 4.4.4) login to the first camera using a DDNS domain name and port. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 41 NOTE: The MJ series have the same HTTP Port NO. and Media Port NO. 4 ---- Enter the 2nd camera’s user name and password 5 ---- Click Add button and to take effect Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 42: Network

    Figure 4.19 4.4 Network This section will allow you to configure your camera’s IP, PPPoE, DDNS, Wireless Settings, UPnP and Port. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 43 PC. If you don’t know the subnet mask, gateway and DNS server, you can check your computer’s local area connection as follows: Control Panel →Network Connections →Local Area Connections →Choose Support →Details Figure 4.21 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 44: Wireless Settings

    Click the Scan button and the camera will detect all wireless networks around the area. It should also display your router in the list (Figure 4.23). Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 45 2 Enter the password of your router. 1 Click the SSID of your router relevant information will be filled in the fields automatically. Figure 4.24 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 46 PC and the camera share the same subnet. NOTE : The security mode of router cannot be WEP, or else the WPS settings may be failed. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 47 NOTE: FI9815P does not have this function. 4.4.4 DDNS FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name. FOSCAM domain name Here take test09.myfoscam.org for example.
  • Page 48 ① Step 1, Go to the website www.no-ip.com to create a free hostname Firstly: login on www.no-ip.com and click No-IP Free to register. Figure 4.28 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 49 ACCOUNT as indicated in email. Secondly: login the link with the registered username and password to create your domain name. Figure 4.30 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 50 NOTE : If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.
  • Page 51 The default UPnP status is closed. You can enable UPnP, then the camera’s software will be configured for port forwarding. Back to the “Device Status” panel, you can see the UPnP status: Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 52 IP address, and click on ”Network Configuration”, this brings up the network configuration box as shown in Figure 4.35 and 4.36. Figure 4.35 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 53 Open Internet Explorer if it is not already opened. Click on Tools, then click Internet Options. Next, click the Security tab, then click the Trusted sites button. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 54 Click Sites then you can add the camera’s https web site to the internet explorer. Enter the camera’s url. Figure 4.39 For Firefox, you can add the trusted as the following way: Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 55 Tools ---- Options ---- Advanced --- View Certificates --- Servers Figure 4.40 Click View Certificates, and go to Servers option. Figure 4.41 Go to Add Exception panel. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 56 1 and 65535(except 0 and 65534). But make sure they can not be conflict with other existing ports. Open the VLC, and go to Media(Open Network Stream option, then enter the URL into VLC. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 57 Figure 4.43 Sometimes you may need to enter the user name and password again. Click OK and you can see the real-time preview. Figure 4.44 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 58: Mail Settings

    VLC. 4.4.7 Mail Settings If you want the camera to send emails when motion has been detected, here Mail will need to be configured. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 59 5----Save Click Save to take effect 6----Test Click Test to see if Mail has been successfully configured. Click Test to see if Mail has been successfully configured. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 60: Ftp Settings

    8) The server does not support the authentication mode used by the device 4.4.8 FTP Settings If you want to upload record files and images to your FTP server，you can set FTP Settings. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 61 Access the IP Camera by Smart Phone (Android or iOS operating system) First of all, you need to open the P2P function of the IP Camera at “Settings --> Network --> P2P.” Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 62: Video

    Figure 4.50 Search and install Foscam Viewer on Google Play and APP Store for for Android and iOS devices. If you want to know more details of the iOS APP or Android APP, see the iOS App User Manual or Android APP User Manual.

  • Page 63: On Screen Display

    4.5.2 On Screen Display This page is used to add timestamp and device name on the video. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 64: Privacy Zone

    There are two options: Yes or NO. Select yes and draw a mask area on the video, the mask area will be black on the video. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 65 Back to the surveillance window, you can see the mask area as the following picture: Figure 4.55 NOTE: FI9815P does not have this function. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 66: Alarm

    4.6.1 Motion Detection IP Camera supports Motion Detection Alarm, when the motion has been detected, it will send emails or upload images to FTP. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 67 Make sure the camera has inserted SD card and you have set the SD card as the Alarm record files storage path, please go to Record—> Storage location page Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 68 Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the camera will alarm. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 69 Figure 4.60 ③ Press the left mouse and drag it on the time boxes, you can select the serial area. Figure 4.61 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 70 Figure 4.62 There is an IO alarm input/output lines in the FOSCAM camera tails, as shown in Figure 4.608. Enable IO alarm need this cable to connect to the alarm device (door sensor, infrared sensor, smoke detector, etc.).
  • Page 71 Click "Clear IO alarm output" , the alarm output device will stop alarming. If IO alarm is triggered again after alarm interval, IO alarm output device will be restart. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 72 Figure 4.64 Note: motion detection alarm can also be triggered IO alarm output. Figure 4.65 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 73: Record

    Alarm Recording Location : SD card or FTP. Make sure the camera has been inserted the SD card. On this page, you can see the available space of the SD card. (FI9818W has not SD card.) Manual Recording Location: For Windows OS, the manual recording path is C:/ IPCamRecord, you can change another one.

  • Page 74: Schedule Recording

    When the video is selected as FTP, the device supports scheduled recording. Figure 4.69 Figure 4.70 When the video is selected as SD card, the device supports pumping frame recording. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 75 The schedule recording will stop while alarm recording is beginning, and it will continue automatically after alarm recording end. You can refer to "alarm schedule." in "Alarm" about editing the time of recording Schedule. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 76: Ptz

    The default storage path of alarm record files is SD card, when the available size of SD card is less than 256M, the old record files will be deleted automatically. NOTE: FI9818W does not support SD card. 4.8 PTZ This page will allow you to change the pan/tilt speed and do cruise tracks settings.
  • Page 77 Cruise time: Select Cruise time from Cruise Mode drop-down, then you can set the Cruise time of the camera. Cruise Loops:Select Cruise Loops from Cruise Mode drop-down, you can set the Cruise Loops of the camera. Click Save to take effect. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 78 And 1 Select one preset point. 2 Click Add button. you can set the stay time. Figure 4.77 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 79 After add the cruise track, back to the surveillance window, click Cruise, her you can see all cruise tracks you have added. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 80 No self test: When rebooting, the camera will not pan / tilt. Goto home position: When rebooting, the camera will pa Providing Central Management Software to Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 81: Firewall

    In this panel, you can backup/restore your camera settings, upgrade the firmware to the latest version, restore the camera to default settings and reboot the device. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 82: System Upgrade

    4.10.2 System Upgrade Click “Download the latest firmware”, you will see the following screen. And click “save” to save the firmware on your computer locally. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 83 , select the Camera IP that you want to upgrade the firmware. Then select Upgrade Firmware and enter the username and password, choose the firmware file, and upgrade. Figure 4.86 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 84: Patch Installation

    Click "Browse" to select the correct patch file, and then click "Install Patch" to install the patch. Do not turn off the power during it installing. After installing is complete, you will receive a system prompt. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 85: Factory Reset

    Reset button on the bottom of the camera. Figure 4.88 4.10.5 Reboot Click Reboot System to reboot the camera. This is similar to unplugging the power to the camera. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 86: Playback

    : Click this button to search all record files satisfy the conditions you selected. Section 2 Search record files On this panel you can see all record files satisfy the conditions you set. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 87: Appendix

    Click this button to stop the record files Open or stop audio Click this button to make full screen, and double click left mouse to exit full screen. NOTE：FI9818W does not support this function. 6 Appendix 6.1 Frequently Asked Questions 6.1.1 Install the add-on of Firefox browser, Google Chrome and IE...
  • Page 88 Figure 6.2 Figure 6.3 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 89 Figure 6.4 Figure 6.5 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 90 Figure 6.6 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 91 6.1.2 Uninstall the add-on of Firefox browser, Google Chrome and IE Chrome. Figure 6.7 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 92: I Have Forgotten The Administrator Password

    There are two ways to resolve this problem: Please add the camera as a trusted site to resolve this issue. The steps are ： Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 93: No Pictures Problems

    If you allow the ActiveX running, but still could not see living video. Please change another port number to try. Don’t use port 88. Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 94: Default Parameters

    LAN IP. (For more details see: How to add cameras in WAN) 6.2 Default Parameters Default network Parameters IP address: obtain dynamically Subnet mask: obtain dynamically Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 95: Specifications

    Storage Humidity 0% ~ 90% non-condensing 2.0GHZ or above Memory Size 256MB or above Display Card 64M or above Supported OS Microsoft Windows Requirements 2000/XP/Vista/Windows7-32bit/Windows7- Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 96 IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP,DDNS, UPnP, RTSP, WPS, ONVIF Microsoft Windows 2000/XP, Vista, 7, 8; Operating System Mac OS System iOS、Android Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 97 Stream dual stream Video Image adjustment The hue, brightness, contrast, saturation, sharpness are adjustable Flip image flip and mirror Infrared mode Automatic or manual Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 98 20% ~ 85% non-condensing Environment Storage Temper. -10°C ~ 60° (14°F ~ 140°F) Storage Humidity 0% ~ 90% non-condensing Certification CE, FCC, RoHS Warranty Limited 2-year warranty Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 99 Supports IP Filtering Storage SD card and local storage Reset Reset button is available Power Supply PoE, DC 5V/2.0A Power Power Consumption 8.0 Watts (Max.) Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 100 Audio Compression PCM/G.726 Ethernet One 10/100Mbps RJ45 port Wireless Standard IEEE802.11b/g/n Data Rate IEEE802.11b: 11Mbps(Max.); IEEE802.11g: 54Mbps(Max.); IEEE802.11n: 150Mbps(Max.). Network Wireless Security WEP, WPA, WPA2 Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 101 960P (1280*960) , 720P (1280*720) , VGA (640*480 ), QVGA (1280*120) Video View H.264 dual streaming Image adjust The brightness, contrast, saturation , is adjustable Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 102 IE6 and above version or compatible browser, Firefox or other standard browsers Software Upgrade Upgrade from network Certification CE, FCC, RoHS Warranty Limited 2-year warranty Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 103 Apple Safari. Motion Detection Alarm via E-Mail, upload alarm snapshot to FTP Other Features User Accounts Three levels user role Firewall Supports IP Filtering Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...
  • Page 104 IEEE802.11g: 54Mbps(Max.); IEEE802.11n: 150Mbps(Max.). Network Wireless Security WEP, WPA, WPA2 Supports WPS one button push wireless connection IP、TCP、UDP、HTTP、HTTPS、SMTP、FTP、DHCP、DDNS、 Network Protocol UPnP、RTSP、WPS Remote Access P2P, DDNS Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 105: Ce & Fcc

    This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the Shenzhen Foscam Intelligent Technology Co., Limited Tel: 86 755 2674 5668 Fax: 86 755 2674 5168...

  • Page 106: Warranty

    No warranty service is provided unless the product is returned to an authorized return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which may have regional specific warranty implications.
  • Page 107 Abuse firmware upgrade without the authorized technician’s guidance. Normal wear and tear. Return Procedures Please read FOSCAM warranty policy & policy of your reseller first before sending items back to point-of-purchase. Customer must first contact point-of-purchase to obtain a Return Merchandise Authorization (RMA) number before returning the product.
  • Page 108 Purchaser's exclusive remedy, as against FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website specification in error or that is no longer available for any Shenzhen Foscam Intelligent Technology Co., Limited...

  • Page 109: Obtaining Technical Support

    User’s Guide has not answered. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, please contact our service department: tech@foscam.com...
