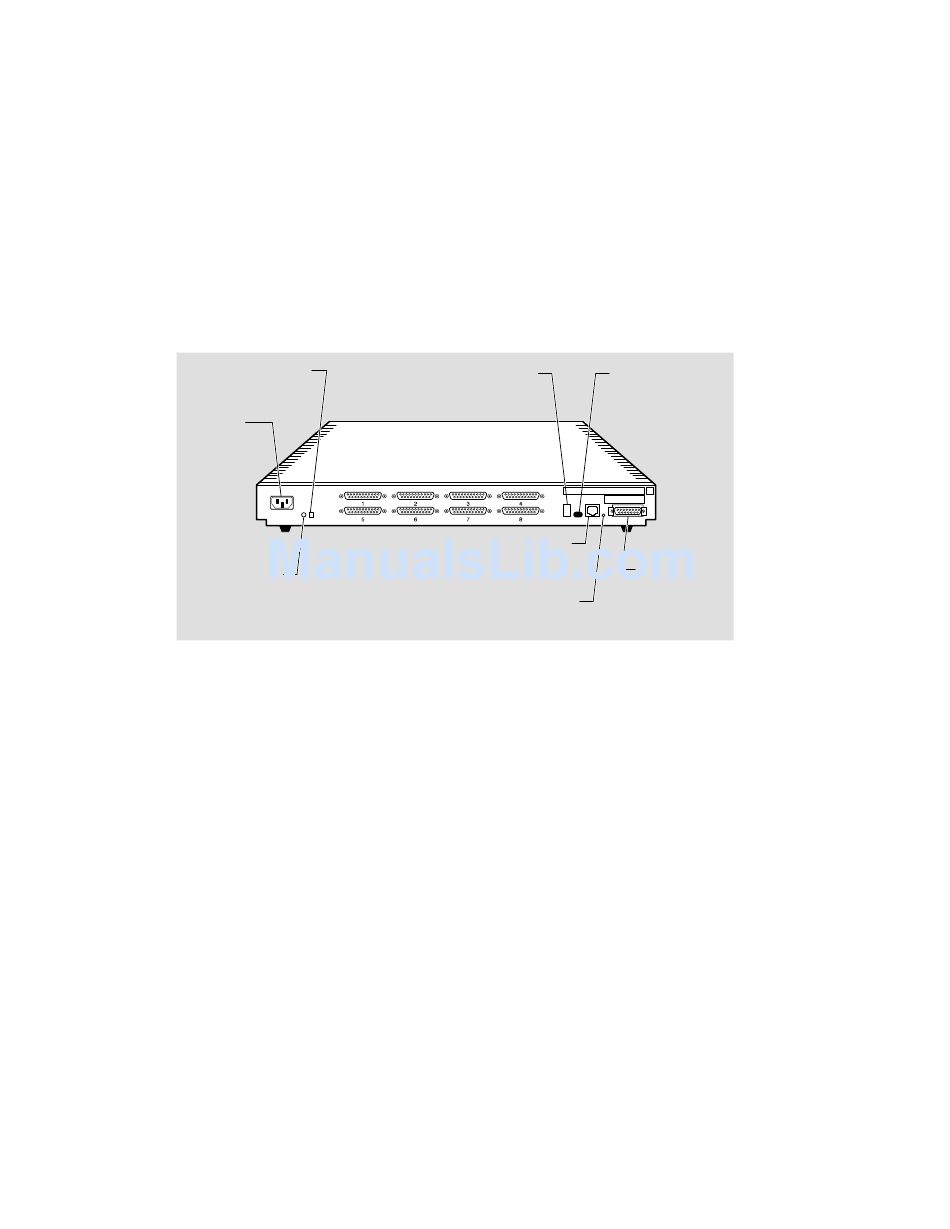

Figure 1–1 shows a rear view of the DECserver 700-08. The DECserver 700-16 sup-

ports EIA-423-A and DEC 423 data-leads on 16 MJ8 connectors. Use this model to

connect devices requiring data-leads for operation (for example: terminals, printers,

and personal computers in terminal emulation mode). You can connect the DEC-

server to modems that do not require the full complement of signals provided by the

DECserver 700-08, using special adapters (Section 3.3).

Adapters H8585-AB and H8585-AC are not for con-

nection to public networks in Sweden, Germany, or Ja-

pan.

Figure 1–1:
