Summary of Contents for Creative Play Galleon

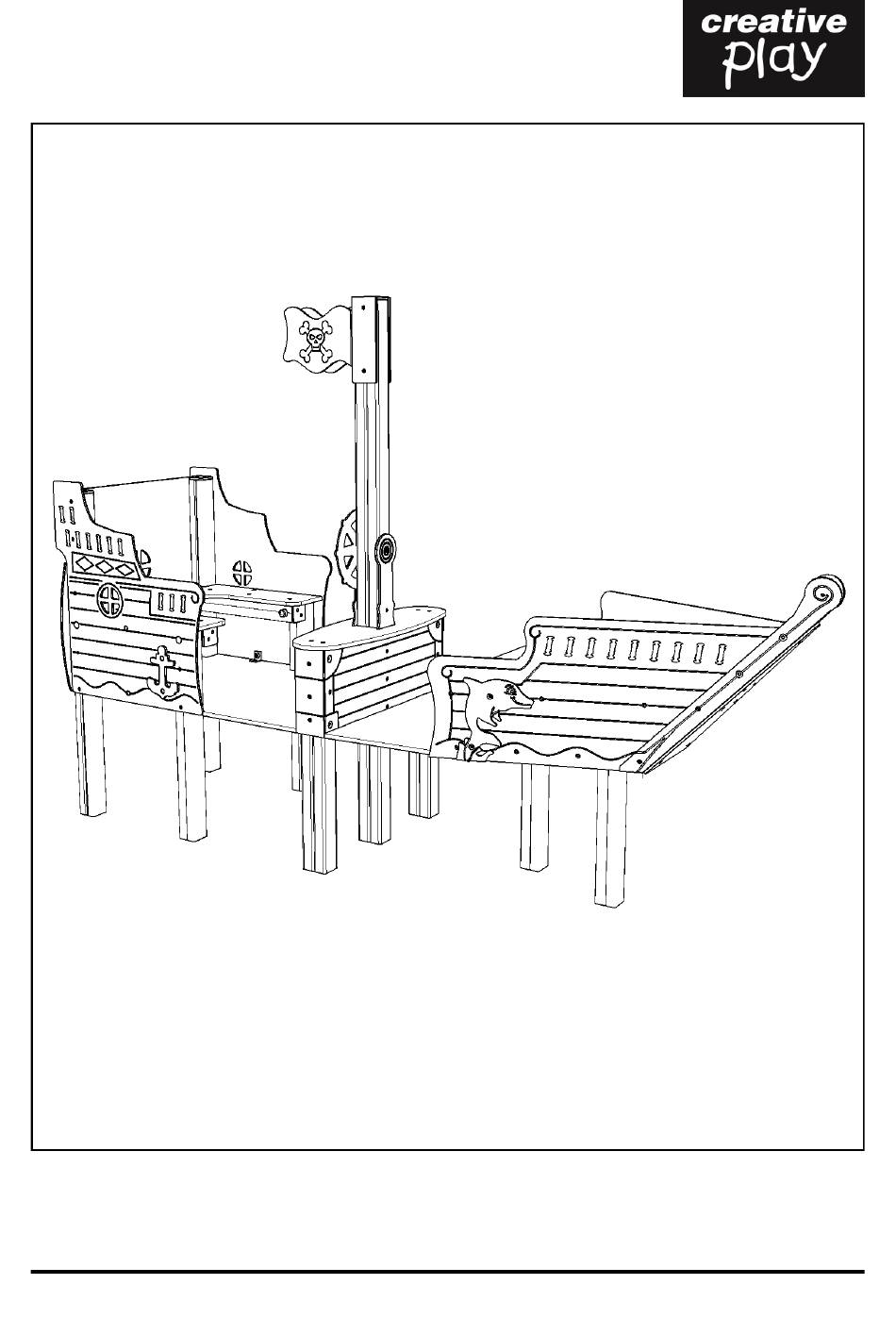

- Page 1 GALLEON Installation Instructions REF: VOY106 - GALLEON pg 1 of 19...
-
Page 2: Parts Required
Parts required TIMBERS pg 2 of 19 REF: VOY106 - GALLEON... - Page 3 Parts required LEFT BACK BACK COVER RIGHT BACK ANCHOR LEFT FLAG HELM BACK HELM RIGHT FLAG SPACER MIDDLE BACK MIDDLE SIDES MIDDLE FRONT pg 3 of 19 REF: VOY106 - GALLEON...
- Page 4 Parts required FRONT LEFT FRONT RIGHT FRONT COVER LEFT DOLPHIN RIGHT DOLPHIN LEFT BOW COVER RIGHT BACK SEAT MIDDLE SEAT FRONT SEAT pg 4 of 19 REF: VOY106 - GALLEON...
- Page 5 BACK FLOOR FRONT FLOOR (FM80 ‘BRASS SCREW’) (TORK TAINERS) (FM180 ‘BRASS SCREW’) 4 x 0B/N1 10 x 3B/N1 3 x 4B/N3 (M12 NYLOC) (M12 x 200 square cup hex bolt) (ANGLE CLEAT) pg 5 of 19 REF: VOY106 - GALLEON...
-
Page 6: Foundation Details
Foundation details BACK MIDDLE FRONT GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE pg 6 of 19 REF: VOY106 - GALLEON... -
Page 7: Surfacing Details
Surfacing details = MINIMUM SPACE = SURFACING AREA pg 7 of 19 REF: VOY106 - GALLEON... - Page 8 Attach the LEFT/RIGHT BACKS to the TIMBERS (V106B1/ V106B2/V106B3) Using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS AND ‘BRASS SCREWS’ Brass Screws V106B2 NO CAP REQUIRED NOTES: V106B1 BOTH SIDES V106B3 PRE-ASSEMBLED PIECE pg 8 of 19 REF: VOY106 - GALLEON...
- Page 9 Assembly instructions Attach the COVER BACK to the TIMBER (V106B4) Using ‘BRASS SCREWS’ V106B4 PRE-ASSEMBLED PIECE Place the BACK FLOOR and install LEFT/RIGHT BACKS Using ‘BRASS SCREWS’ NOTES: BOTH SIDES NO CAP REQUIRED pg 9 of 19 REF: VOY106 - GALLEON...
- Page 10 Assembly instructions install BACK COVER Using ‘BRASS SCREWS’ Attach the BACK SEAT to the TIMBERS (V106B2/V106B4) Using ‘BRASS SCREWS’ and TORKTAINERS TORKTAINERS pg 10 of 19 REF: VOY106 - GALLEON...
- Page 11 Attach the FLAG to the TIMBER (V106M1) Using ‘BRASS SCREWS’ V106M1 INSTALL TIMBERS (V106M1/V106M2) ENSURE: LEAVE 12mm GAP BETWEEN TIMBERS AND FLOOR V106M1 TOP VIEW V106M2 V106M2 ENSURE: TO SLIDE MIDDLE SEAT OVER V106M1 TIMBER pg 11 of 19 REF: VOY106 - GALLEON...
- Page 12 Attach the MIDDLE BACK and FRONT to the TIMBERS (V106M1/V106M2) Using ‘BRASS SCREWS’ Attach the MIDDLE SIDES,SEAT (clamp the seat with HELM) to the TIMBERS (V106M1/V106M2) Using ‘BRASS SCREWS’ V106M1 V106M2 V106M2 pg 12 of 19 REF: VOY106 - GALLEON...
- Page 13 NOTES: Use V106F5 TO POSITION V106F3A DO NOT ATTACH V106F5 ‘A’ TIMBERS ATTACHED TO THE LEFT V106F5 ‘B’ TIMBERS ATTACHED TO THE RIGHT V106F4A NOTES: BOTH SIDES DO NOT SCREW PRE-ASSEMBLED PIECE pg 13 of 19 REF: VOY106 - GALLEON...
- Page 14 Assembly instructions Attach the DOLPHIN and LEFT/RIGHT pieces Using ‘BRASS SCREWS’ and TORKTAINERS NOTES: TORKTAINERS BOTH SIDES 3B / N1 Attach the V106F5 TIMBER to the FRONT COVER Using ‘BRASS SCREWS’ V106F5 pg 14 of 19 REF: VOY106 - GALLEON...
- Page 15 Assembly instructions Attach the BOW to the TIMBERS V106F3a/b,V106F4a/b Using ‘BRASS SCREWS’ APPROX APPROX Attach the V106F6 TIMBER to the TIMBERS V106F3a/ b,V106F4a/b Using ‘BRASS SCREWS’ pg 15 of 19 REF: VOY106 - GALLEON...
- Page 16 Assembly instructions Attach the FRONT PIECE TO THE FLOOR Attach the V106F2 TIMBERS to the TIMBER V106F1 Using M12 CUP SQUARE BOLTS / NYLOCS V106F1 V106F2 V106F2 pg 16 of 19 REF: VOY106 - GALLEON...
- Page 17 Attach FRONT SUPPORT ASSEMBLY Using ‘BRASS SCREWS’ V106F1 ENSURE: ASSEMBLY IS IN THE MIDDLE OF THE V106F5 V106F6 TIMBERS V106F2 V106F2 Attach the FRONT SEAT to the TIMBER V106F3a/b, V106F4a/b,V106F1 Using ‘BRASS SCREWS’ pg 17 of 19 REF: VOY106 - GALLEON...
- Page 18 Assembly instructions ATTACH THE FRONT BOW and PLAYTEC SPACER Using TORKTAINERS NOTES: THE 2x SIDES WILL FLEX INTO POSIION pg 18 of 19 REF: VOY106 - GALLEON...
-
Page 19: Additional Dimensions
Additional dimensions pg 19 of 19 REF: VOY106 - GALLEON...
