UTC2000 Evaluation Kit User's Guide
3.1.4
Table 3-3
TABLE 3-3:
REF. DES.

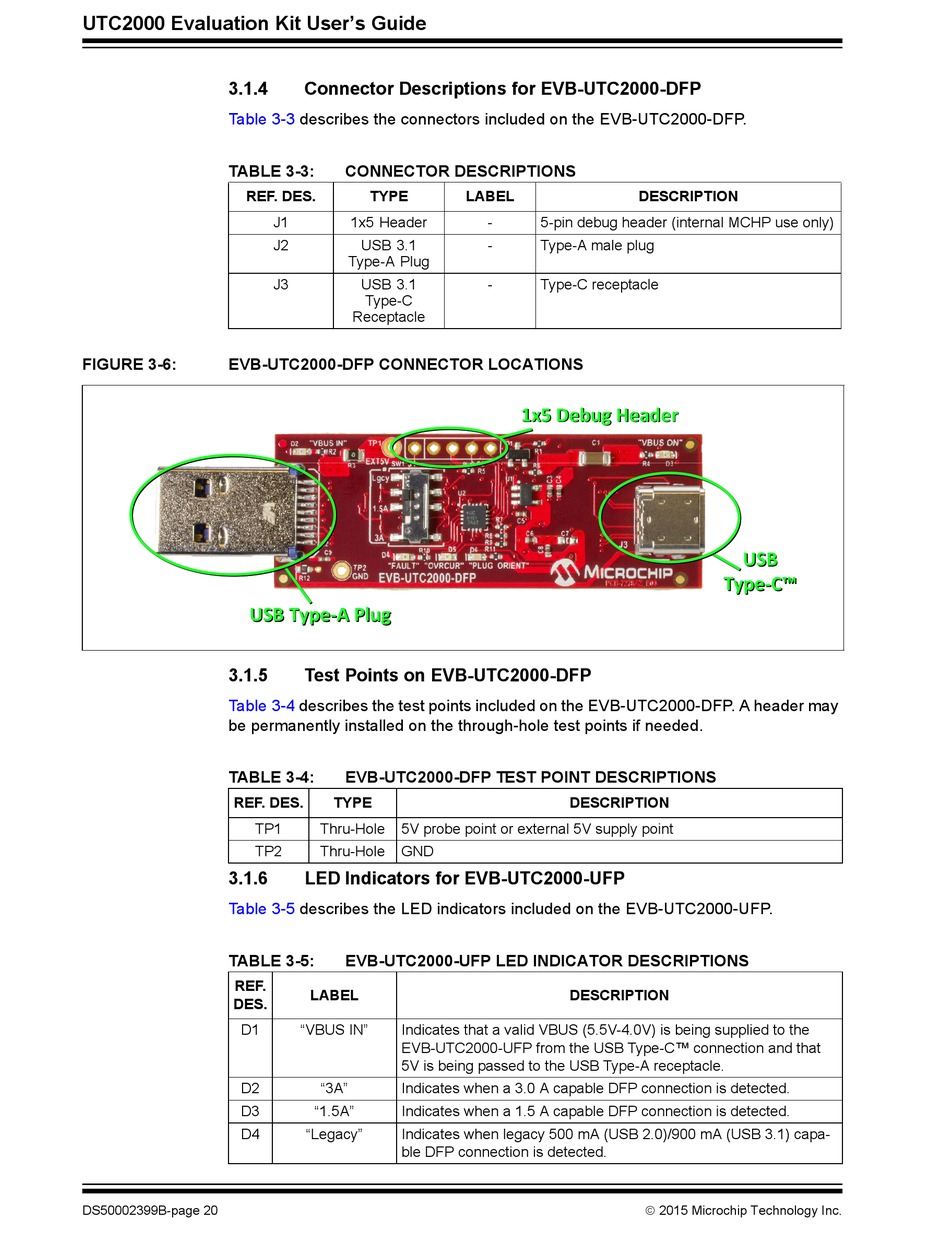

FIGURE 3-6: EVB-UTC2000-DFP CONNECTOR LOCATIONS
USB Type-A Plug
USB Type-A Plug
3.1.5
Table 3-4
be permanently installed on the through-hole test points if needed.
TABLE 3-4:
REF. DES.
TP1
TP2
3.1.6
Table 3-5
TABLE 3-5:
REF.
DES.
D1
D2
D3
D4
DS50002399B-page 20

Connector Descriptions for EVB-UTC2000-DFP

describes the connectors included on the EVB-UTC2000-DFP.
CONNECTOR DESCRIPTIONS
TYPE
J1 1x5 Header
J2 USB 3.1
Type-A Plug
J3 USB 3.1
Type-C
Receptacle

Test Points on EVB-UTC2000-DFP

describes the test points included on the EVB-UTC2000-DFP. A header may
EVB-UTC2000-DFP TEST POINT DESCRIPTIONS
TYPE
Thru-Hole 5V probe point or external 5V supply point
Thru-Hole GND

LED Indicators for EVB-UTC2000-UFP

describes the LED indicators included on the EVB-UTC2000-UFP.
EVB-UTC2000-UFP LED INDICATOR DESCRIPTIONS
LABEL
"VBUS IN" Indicates that a valid VBUS (5.5V-4.0V) is being supplied to the
EVB-UTC2000-UFP from the USB Type-C™ connection and that
5V is being passed to the USB Type-A receptacle.
"3A" Indicates when a 3.0 A capable DFP connection is detected.
"1.5A" Indicates when a 1.5 A capable DFP connection is detected.
"Legacy" Indicates when legacy 500 mA (USB 2.0)/900 mA (USB 3.1) capa-
ble DFP connection is detected.
LABEL DESCRIPTION
- 5-pin debug header (internal MCHP use only)
- Type-A male plug
- Type-C receptacle
1x5 Debug Header
1x5 Debug Header
DESCRIPTION
DESCRIPTION
 2015 Microchip Technology Inc.
USB
USB
Type-C™
Type-C™
