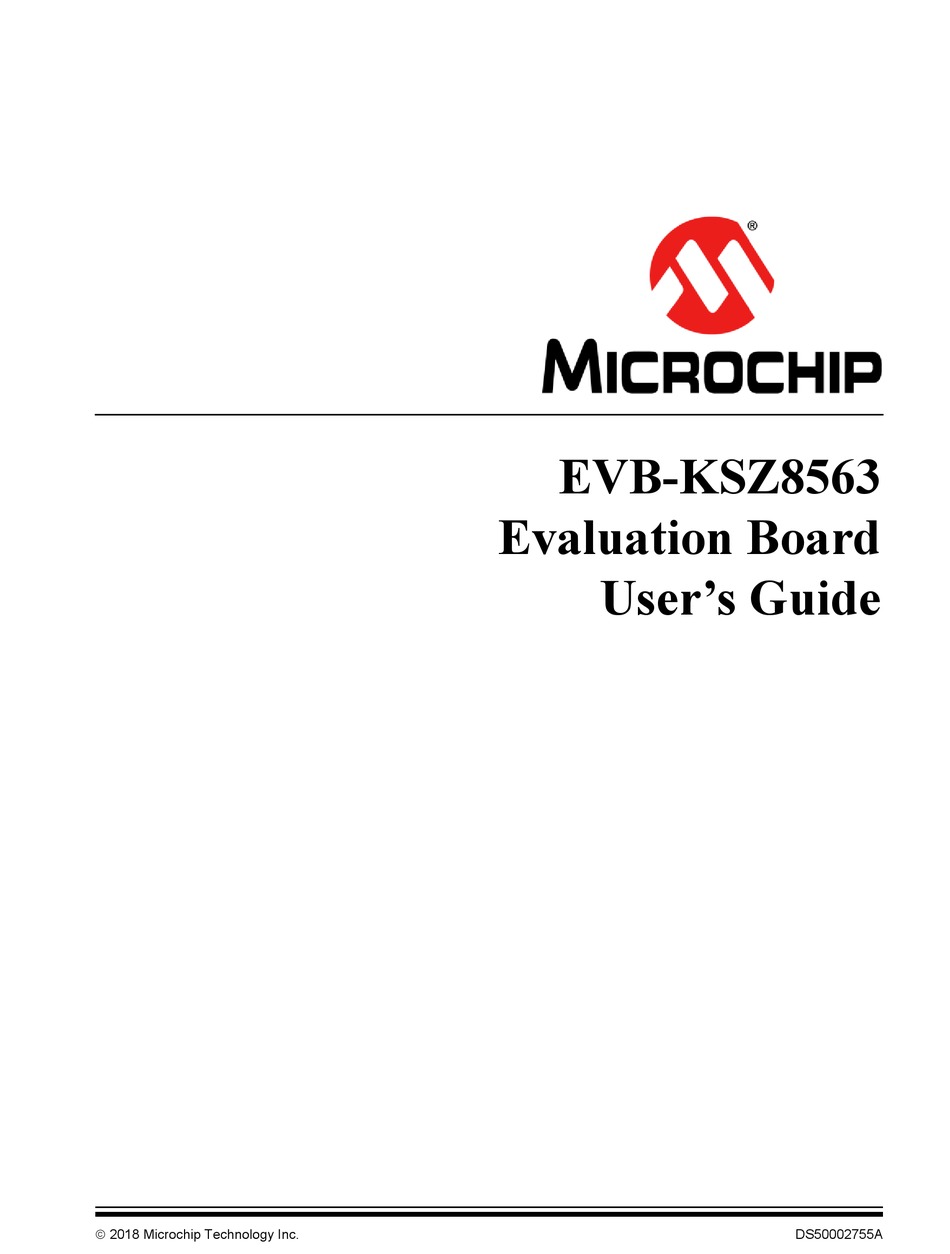

- Page 1 EVB-KSZ8563 Evaluation Board User’s Guide 2018 Microchip Technology Inc. DS50002755A...
- Page 2 SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.
-
Page 3: Table Of Contents
Appendix A. EVB-KSZ8563 Evaluation Board A.1 Introduction ....................19 Appendix B. EVB-KSZ8563 Schematics B.1 Introduction ....................21 Appendix C. EVB-KSZ8563 Bill of Materials (BOM) C.1 Introduction ....................25 Appendix D. EVB-KSZ8563 Silk Screen D.1 Introduction ....................29 Worldwide Sales and Service ..................32 ... - Page 4 EVB-KSZ8563 Evaluation Board User’s Guide NOTES: 2018 Microchip Technology Inc. DS50002755A-page 4...
-
Page 5: Preface
Customer Support • Document Revision History DOCUMENT LAYOUT This document describes how to use the EVB-KSZ8563 Evaluation Board as a development tool for the KSZ8563, 3-Port Fast Ethernet Switch with RGMII Interface and IEEE 1588v2 / 802.1AS support. • Chapter 1. “Overview”... -
Page 6: Conventions Used In This Guide
EVB-KSZ8563 Evaluation Board User’s Guide CONVENTIONS USED IN THIS GUIDE This manual uses the following documentation conventions: Description Represents Examples Arial font: ® Italic characters Referenced books MPLAB IDE User’s Guide Emphasized text ...is the only compiler... Initial caps A window... -
Page 7: The Microchip Web Site
PICSTART Plus and PIC-kit 2 and 3. CUSTOMER SUPPORT Users of Microchip products can receive assistance through several channels: • Distributor or Representative • Local Sales Office • Field Application Engineer (FAE) • Technical Support 2018 Microchip Technology Inc. DS50002755A-page 7... -
Page 8: Document Revision History
EVB-KSZ8563 Evaluation Board User’s Guide Customers should contact their distributor, representative or field application engineer (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document. -
Page 9: Chapter 1. Overview
USER’S GUIDE Chapter 1. Overview INTRODUCTION The EVB-KSZ8563 evaluation board is a plug-in card that interfaces directly with a mat- ing Microchip host processor/controller board, such as the SAMA5D3-EDS Board. It features the KSZ8563, a highly-integrated networking device that incorporates a... -
Page 10: References
EVB-KSZ8563 Evaluation Board User’s Guide REFERENCES Concepts and materials available in the following documents may be helpful when reading this document. Visit www.microchip.com for the latest documentation. • KSZ8563 Data Sheet • EVB-KSZ8563 Schematics • SAMA5D3-EDS Schematics • SAMA5D3-EDS Board User’s Guide •... -
Page 11: Chapter 2. Board Details And Configuration
Chapter 2. Board Details and Configuration INTRODUCTION The EVB-KSZ8563 is designed as a plug-in card to interface directly with a mating Microchip host processor or controller board, such as the SAMA5D3-EDS Board, that supplies full power and provides full register access and configuration via IBA, SPI, or C bus management. -
Page 12: Reset
BOARD FEATURES AND CONFIGURATION The following sub-sections describe the board features and configuration settings. Figure 2-1 displays the top view of the EVB-KSZ8563 with key features, jumpers, and headers highlighted in red, and with Microchip components highlighted in blue. FIGURE 2-1:... - Page 13 Ground VARIO from HS_Connector, J7 (TP4) (TP3) 2V5 from HS_Connector, J7 (TP6) Ground (TP7) 3V3 from HS_Connector, J7 (TP9) VDDIO rail of KSZ8563 (TP11) AVDDL rail of KSZ8563 (TP12) Ground Ground (TP18) (TP20) 2018 Microchip Technology Inc. DS50002755A-page 13...
- Page 14 EVB-KSZ8563 Evaluation Board User’s Guide Figure 2-3 displays the bottom view of the EVB-KSZ8563 with the HS connector (J7) (highlighted in red) that plugs directly into a mating Microchip MAC processor or con- troller board. FIGURE 2-3: EVB-KSZ8563 BOTTOM VIEW WITH CALLOUT...
-
Page 15: Phy Ports - Integrated Magnetic Jacks
TXP/M signal differential pair. Refer to the board schematics in Appendix B. “EVB-KSZ8563 Schematics” and the KSZ8563 Data Sheet for further details on the pin strappings. 2.5.4 GPIO Signal Headers... -
Page 16: Intrp_N Output
KSZ8563 Data Sheet for further details and usage on the PME_N signal. USING THE EVB-KSZ8563 The EVB-KSZ8563 plugs in directly to a mating Microchip host controller or processor board, such as the SAMA5D3-EDS Board, that delivers full power and provides full reg- ister access and configuration via IBA, SPI, or I C bus management. - Page 17 Board Details and Configuration FIGURE 2-4: EVB-KSZ8563/SAMA5D3-EDS EVALUATION AND FIRMWARE DEVELOPMENT PLATFORM 2018 Microchip Technology Inc. DS50002755A-page 17...
- Page 18 EVB-KSZ8563 Evaluation Board User’s Guide NOTES: 2018 Microchip Technology Inc. DS50002755A-page 18...
-
Page 19: Appendix A. Evb-Ksz8563 Evaluation Board

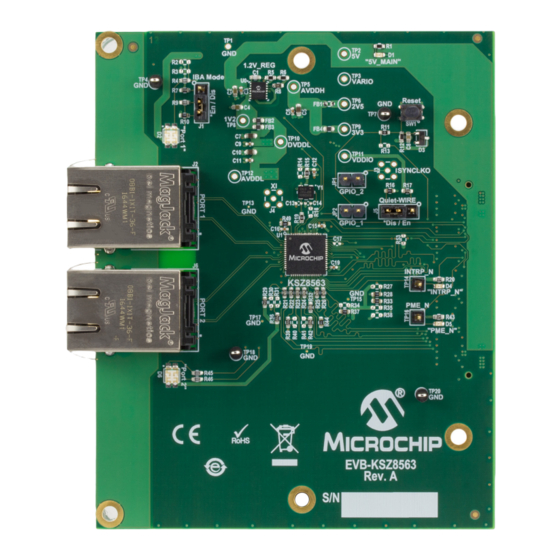

EVB-KSZ8563 EVALUATION BOARD USER’S GUIDE Appendix A. EVB-KSZ8563 Evaluation Board INTRODUCTION This appendix shows the EVB-KSZ8563 evaluation board. FIGURE A-1: EVB-KSZ8563 EVALUATION BOARD (TOP VIEW) 2018 Microchip Technology Inc. DS50002755A-page 19... - Page 20 EVB-KSZ8563 Evaluation Board User’s Guide FIGURE A-2: EVB-KSZ8563 EVALUATION BOARD (BOTTOM VIEW) 2018 Microchip Technology Inc. DS50002755A-page 20...
-
Page 21: Appendix B. Evb-Ksz8563 Schematics
EVB-KSZ8563 EVALUATION BOARD USER’S GUIDE Appendix B. EVB-KSZ8563 Schematics INTRODUCTION This appendix includes the EVB-KSZ8563 schematics. 2018 Microchip Technology Inc. DS50002755A-page 21... - Page 22 FIGURE B-1: EVB-KSZ8563 SCHEMATICS - KSZ8563 DEVICE, PIN STRAPPING, CLOCK, AND RESET External Reference Clocks For AVB/1588 VDDIO VDDIO VDDIO Close for MMCX SYNCLKO Open for test point TP14 SYNCLKO "INTRP_N" Reset Output clock MMCX_SYNCLKO GPIO_2 100k MMBD914 4.7k 4.7k...
- Page 23 FIGURE B-2: EVB-KSZ8563 SCHEMATICS - PORTS 1, 2 PHYS; PORT 3 MAC - MII/RMII/RGMII CONNECTOR VDDIO "Port 1" Port 3 (PHY Mode) GREEN ClassName: QTS-PHY-RX LED1_1 LED1_1 Net Class Power 330R QTS-050-01-L-D-A-GP LED1_0 LED1_0 330R RXD0 RXD0 VARIO_QTS VARIO_QTS GREEN, RED...
- Page 24 FIGURE B-3: EVB-KSZ8563 SCHEMATICS - BOARD POWER I/O AND REGULATORS AVDDL 5V_QTS AVDDL AVDDL TP12 On-board current < 0.25A Power Power Power KSZ8563RNX 1V2 @ 1.2A Decouple Pins 4, 7, 11, 14, 60 MIC33153YHJ 5V_QTS MPZ1608Y101B 22uF 0.1uF 22uF 0.1uF 0.1uF...
-
Page 25: Appendix C. Evb-Ksz8563 Bill Of Materials (Bom)
EVB-KSZ8563 EVALUATION BOARD USER’S GUIDE Appendix C. EVB-KSZ8563 Bill of Materials (BOM) INTRODUCTION This appendix includes the EVB-KSZ8563 Bill of Materials (BOM). 2018 Microchip Technology Inc. DS50002755A-page 25... - Page 26 FIGURE C-1: BILL OF MATERIALS Item Qty Reference Description Populated Manufacturer Manufacturer Part Number C13, C14 CAP CER 15 pF 50V 5% NP0 SMD 0402 Murata GRM1555C1H150JA01D CAP CER 470 pF 25V 5% NP0 SMD 0603 06033A471JAT2A C2, C4 CAP CER 4.7 uF 10V 10% X5R SMD 0603 KEMET C0603C475K8PACTU C3, C6, C9, C11, C15, C16, C18, C19, C21,...
- Page 27 Reference Description Populated Manufacturer Manufacturer Part Number KSZ8563RNX 3-Port 10/100 Ethernet Switch with AVB/1588 Microchip Technology KSZ8563RNX IC, 2.7V to 5.5V input, 1.2A, Synchronous 4MHz Buck Regulator with Microchip Technology MIC33153YHJ adjustable output SAMTEC - QTS-050-01-L-D-A-GP -0.635 mm DOUBLE ROW HS...
- Page 28 EVB-KSZ8563 Evaluation Board User’s Guide NOTES: 2018 Microchip Technology Inc. DS50002755A-page 28...
-
Page 29: Appendix D. Evb-Ksz8563 Silk Screen
EVB-KSZ8563 EVALUATION BOARD USER’S GUIDE Appendix D. EVB-KSZ8563 Silk Screen INTRODUCTION This appendix shows the EVB-KSZ8563 top and bottom silk screen images. FIGURE D-1: EVB-KSZ8563 TOP SILK SCREEN 2018 Microchip Technology Inc. DS50002755A-page 29... - Page 30 EVB-KSZ8563 Evaluation Board User’s Guide FIGURE D-2: EVB-KSZ8563 BOTTOM SILK SCREEN 2018 Microchip Technology Inc. DS50002755A-page 30...
- Page 31 EVB-KSZ8563 Silk Screen NOTES: 2018 Microchip Technology Inc. DS50002755A-page 31...
-
Page 32: Worldwide Sales And Service
New York, NY Tel: 46-31-704-60-40 Tel: 631-435-6000 Sweden - Stockholm San Jose, CA Tel: 46-8-5090-4654 Tel: 408-735-9110 UK - Wokingham Tel: 408-436-4270 Tel: 44-118-921-5800 Canada - Toronto Fax: 44-118-921-5820 Tel: 905-695-1980 Fax: 905-695-2078 2018 Microchip Technology Inc. DS50002755A-page 32 10/25/17...
