Connecting External Speakers* to the Monitor
The monitor doesn't have internal speakers, so in order to get sound you must connect external speakers. External speakers can
reproduce sound from VIDEO or RGB signal sources.
External speakers may be connected directly to the SPEAKERS terminals or indirectly by connecting a stereo system amplifier to the
audio outputs.
CAUTION: Unplug the monitor and all connected components before connecting external speakers. Use only speakers
with 6 to 8-ohm impedance and a power output rating of 7 watts or more.

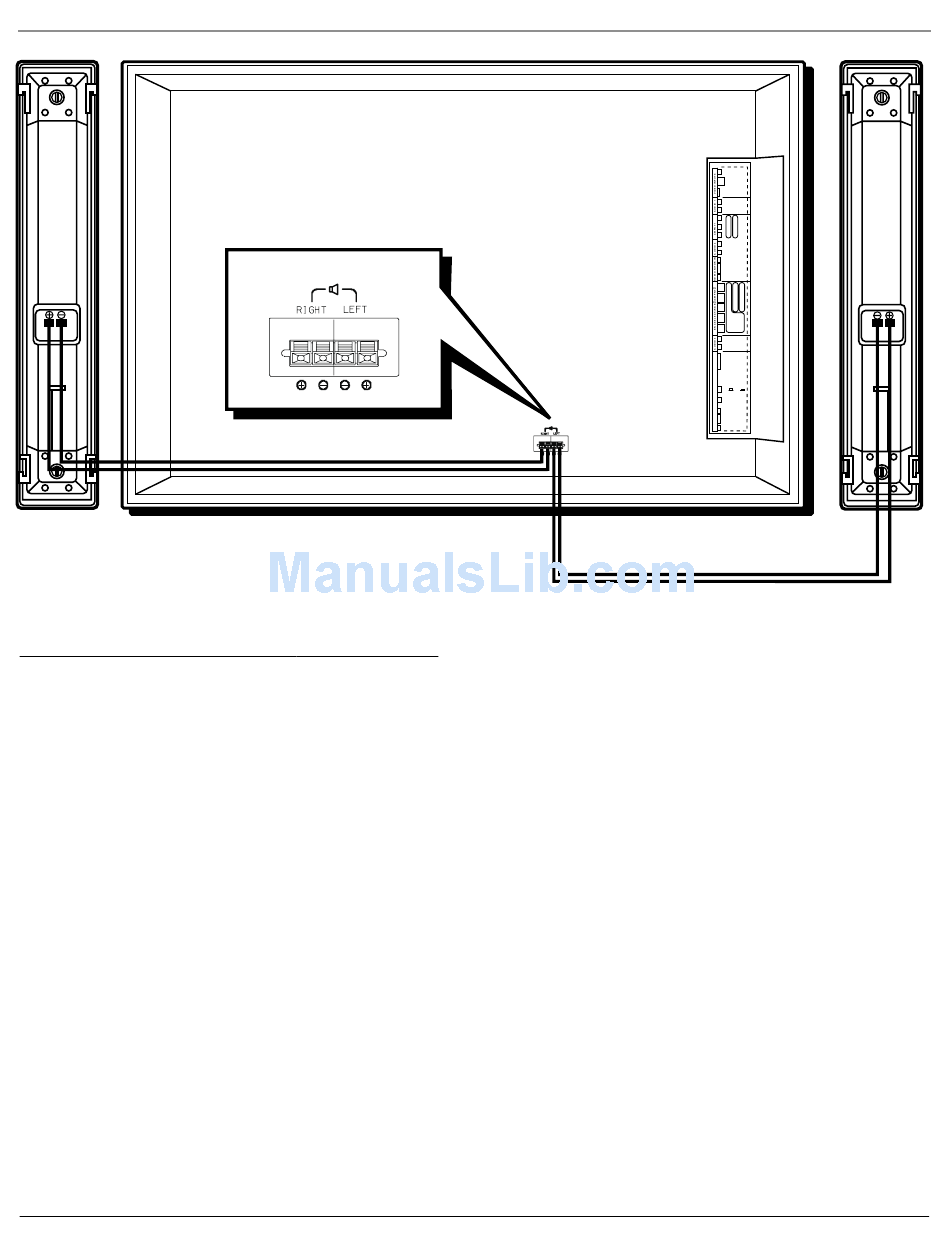

To connect external speakers directly to the monitor:
1. Strip the ends of the speaker wires.
2. Press down the tabs below the speaker terminals and insert the speaker wire and release the tab to secure the speaker wire
connection.
[a] Connect the right speaker (located at right side of the monitor when viewed from the front) positive (+) wire to
RIGHT +.
[b]Connect the right speaker negative (–) wire to RIGHT -.
[c] Connect the left speaker negative (–) wire to LEFT–.
[d]Connect the left speaker positive wire (+) to LEFT+.
*Not included
Chapter 1
+
LEFT
-
-
RIGHT
+
Connections and Setup
VIDEO 1
VIDEO 2
VIDEO 3
L
(MONO)
R
Y Y
C P
B B
C P
R R
L
(MONO)
R
RGB 1
R C P
R R
G Y Y
B C P
B B
H-SYNC
V-SYNC
L (MONO)
R
RGB 3
DIGITAL RGB
CONTROL
LOCK
on off
REMOTE
CONTROL
EXTERNAL
CONTROL
11
