The Options menu

Setting the Audio Inputs

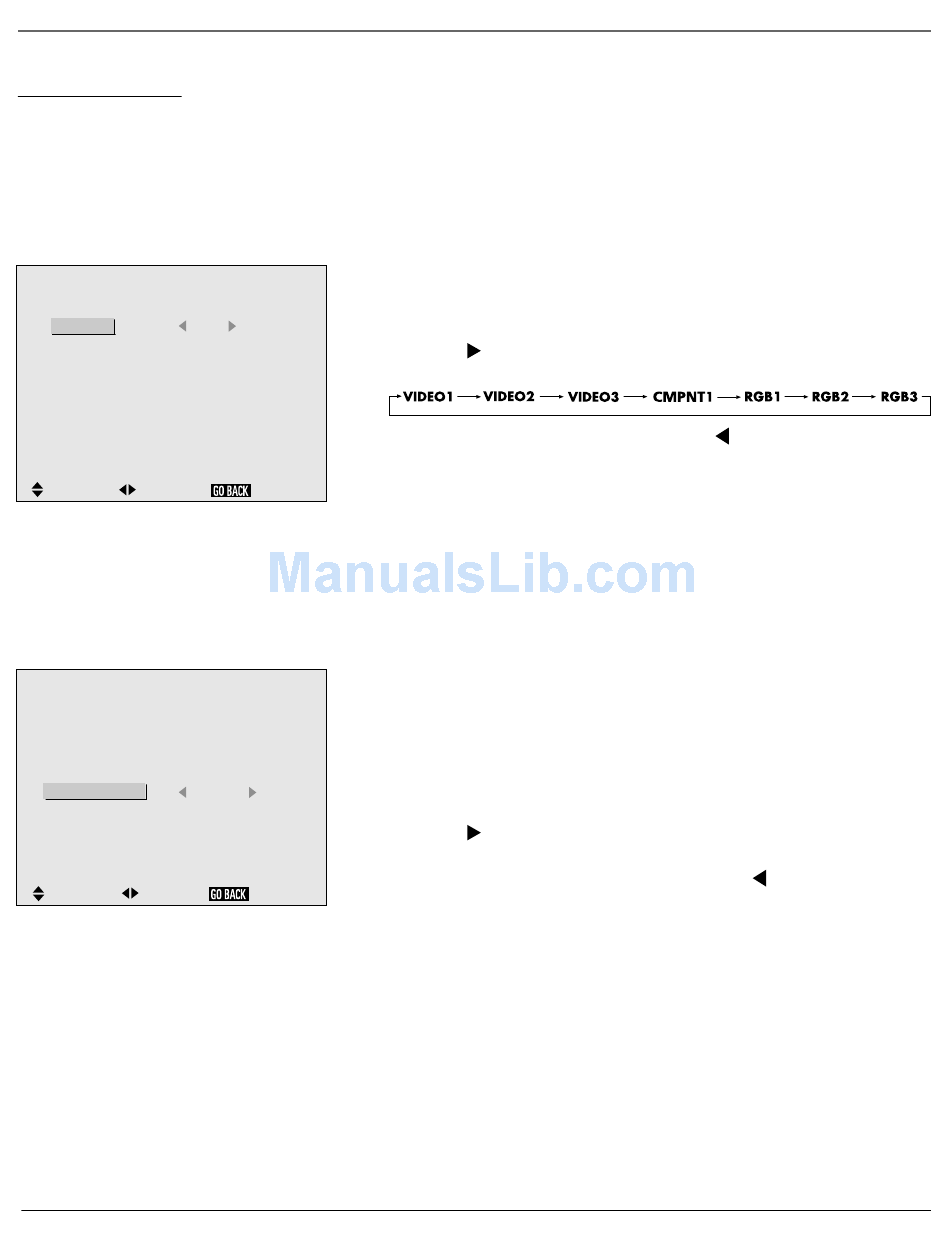

The monitor's audio sources are programmable to each of the monitor's video sources. For example, you can
program AUDIO1 source to work with the RGB2 video source.
This feature is used if optional speakers are connected and for commercial applications.
OPTIONS
AUDIO INPUT
AUDIO1 : RGB1
AUDIO2 : VIDEO1
AUDIO3 : CMPNT1
BNC SELECT
: RGB2
RGB SELECT : RGB
HD SELECT : 1080A
PICTURE SIZE : ON
SEL.
ADJ.
This is the OPTIONS menu with the AUDIO1 input option
highlighted.
OPTIONS
AUDIO INPUT
AUDIO1
: VIDEO1
AUDIO2
: CMPNT1
AUDIO3
: RGB1
BNC SELECT
: CMPNT2
RGB SELECT
: RGB
HD SELECT
: 1080A
PICTURE SIZE
: ON
ADJ.
SEL.
This is the OPTIONS menu with the BNC SELECT option
highlighted.
Chapter 2
1. From the main menu, highlight and select OPTIONS. The OPTIONS menu is
displayed.
2. Highlight one of the audio input options.
3. Use the
scroll as follows:
4. When the desired mode is selected, press the
OPTIONS menu items. You can continue making adjustments within the
OPTION menu, press GO BACK to return to the previous menu or press
MENU or CLEAR to exit the menu system.
RETURN
The factory defaults are as follows:
• AUDIO1 – VIDEO1
• AUDIO 2 – CMPNT1
• AUDIO3 – RGB1
If you use the reset option in the FUNCTION menu, the settings will return
to the factory default settings listed above.

Setting the BNC Connectors

If the component you are connecting to the monitor doesn't have composite
video jacks, you can set the BNC inputs to act as component video inputs.
1. From the main menu, highlight and select OPTIONS. The OPTIONS menu is
displayed.
2. Highlight the BNC SELECT option.
3. Use the
(component).
4. Once you've selected the desired setting, press the
the OPTIONS menu items or press CLEAR to return to the main menu.
RETURN
button to scroll through the available video sources. The modes
button to toggle between RGB2 (composite) and CMPNT2.
The Menu System
button to return to the
button to return to
31
