The "R-IN 1300 Reader" offers a tool giving the user the possibility to save and/or reload configuration
files.
First of all select the tab named "Configurations".
To save the currently active configuration, select the destination folder using the navigator, write the
destination file name in the related input field and then press the button "Save Configuration".
To load a previously saved configuration, select the folder and file using the navigator and then press
the button "Load Configuration".
4.12 M
ONITOR
The monitor tab is used for verifying whether the reader is active or not.
The "Start Reader" button makes the reader start its inventory cycles.
The "Stop Reader" button makes the reader suspend its reading process.
The "Start Monitoring" button permits to display the UIDs of the chips found by the reader.
The "Clear Result" button clears the UIDs display.
The "Stop Monitoring" button stops the display.
The led "D" (detection) is green if the reader sends UIDs, red otherwise
PLEASE NOTE:
UIDs are displayed only once: duplicated UIDs are not diplayed again! This could give the
impression that the reader does not work correctly but this is NOT true. Please, in this case press the
"Clear Result" button.
If you press the "Stop Reader" button, the reader stops its reading process. Please click this button
only if you are sure that the suspension of the reader activities does not cause the loss of important
data.
TAG READ/WRITE OPERATIONS
If Tag-Read/Write operations must be performed, the monitoring-process must be started (press the
"Start Reader"- and the "Start Monitoring"- buttons).
The desired tag (only one) must now be selected from the list of the found chips just by clicking on its
corresponding UID with the left button of the mouse.
Once the UID has been selected, the user starts the Tag-Read/Write operations by clicking the right
button of the mouse.
At this point a small pop-up window opens automatically. It shows the UID of the selected chip, its

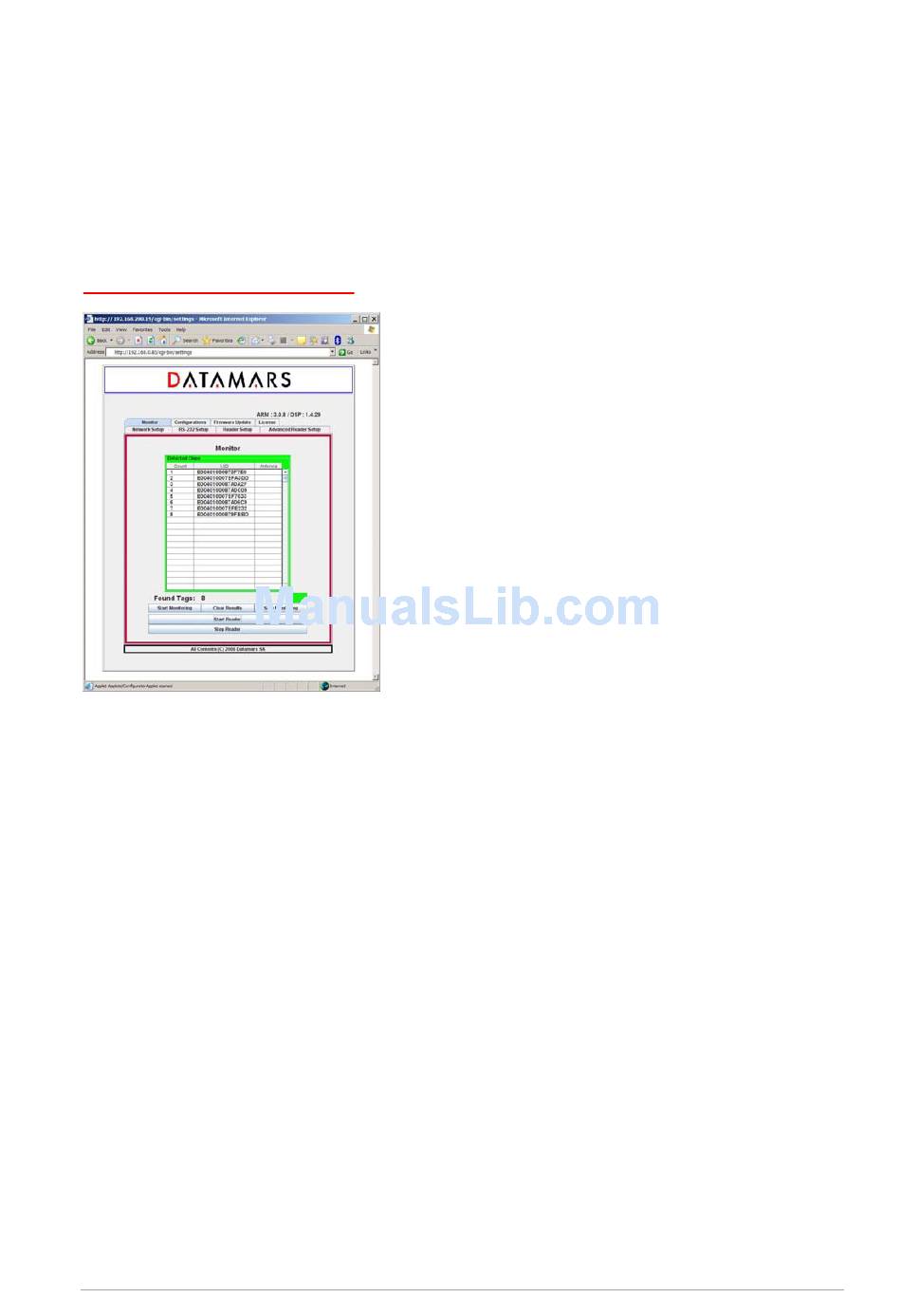

related current text and an input field where a new text can be defined (see picture below).
