Datamars ISO MAX V User Manual

Universal portable reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

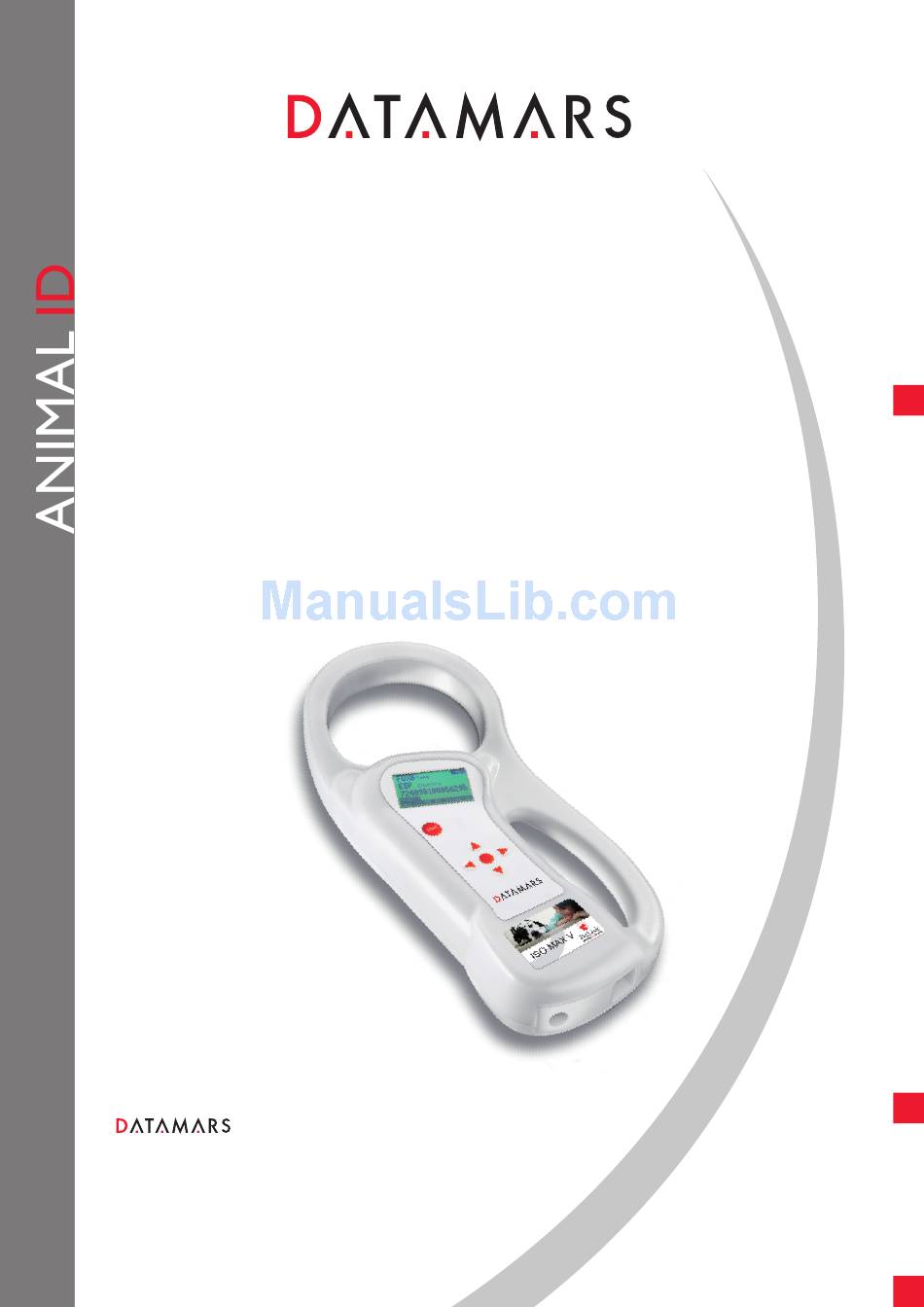

ISO MAX V
Universal portable reader
USER MANUAL
Corporate Headquarters:
Americas Headquarters:
Via ai Prati
250 West Cummings Park
6930 Bedano-Lugano
Woburn, MA 01801, USA
Switzerland
Phone: +1 781 281 2216
Phone: +41 91 935 73 80
Fax: +1 781 300 7330
Fax: +41 91 945 03 30
animal-id@datamars.com
www.datamars.com
Version 1.2
Asia Headquarters:
Northern Region Industrial Estate
1/179 Moo 4, T. Ban Klang, A. Muang
Lamphun, Thailand 51000
Phone: +66 53 582 021
Fax: +66 53 582 680
© 2012 DATAMARS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISO MAX V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Datamars ISO MAX V

Summary of Contents for Datamars ISO MAX V

  • Page 1 ISO MAX V Universal portable reader USER MANUAL Version 1.2 Corporate Headquarters: Americas Headquarters: Asia Headquarters: Via ai Prati 250 West Cummings Park Northern Region Industrial Estate 6930 Bedano-Lugano Woburn, MA 01801, USA 1/179 Moo 4, T. Ban Klang, A. Muang...

  • Page 2: Table Of Contents

    4.5.1 Configure ISO MAX V for the Bluetooth connection …………………………… 13 4.5.2 Search for and recognize the ISO MAX V by a host PC ………………………… 13 Real-time communication …………..………….…………….….…………………………… 18 Battery management ………………………………………………….….…………………………… 18 Battery level indicator ………………………………………….….…………………………… 18 How to recharge the battery……………………..…………….….…………………………… 18 Take care of your reader ……………….…………………………….….……………………………...

  • Page 3: Description

    1 Description ISO MAX V Manual – v. 1.2 – july 2012...

  • Page 4: Operation

    Operation Although the ISO MAX V has been designed to plug and play, we recommend you read this manual carefully in order to take advantage of all its useful features and functions. Switch on/off the ISO MAX V Slide your hand between the base unit and the handle. Use your thumb to press the START button, which is located on the upper left corner of the panel.

  • Page 5: Read A Transponder

    Read a transponder Place the ISO MAX V near the animal to be read, then press the START button in order to activate the reading mode. During the reading mode, move the reader along the animal to scan the transponder ID.

  • Page 6: Managing The Menu

    You can select an ID code by pressing the ENTER button while it is highlighted. This action stores the corresponding ID code in the selected ‘hit function’ (please refer to chapter 3.3.3 for more details). You can exit the current menu by pressing the START button. ISO MAX V Manual – v. 1.2 – july 2012...

  • Page 7: Memory Functions

    While it is ON, it shows the ‘memory hit’ counter on the display. The following figure shows the memory hit function enabled: This ID code has been found 3 times in the memory ISO MAX V Manual – v. 1.2 – july 2012...

  • Page 8: Selected Hit

    ID code that matches the selected one, the reader displays the message “TAG ID FOUND!” and beeps three times. FDXB Type Country 756098100261706 TAG ID FOUND! Thu 07.02.08 14:48:22 ISO MAX V Manual – v. 1.2 – july 2012...

  • Page 9: Clear All Memory

    Press the LEFT/RIGHT button to move the highlighted field. Press the UP/DOWN button to change the highlighted parameter. DATE & TIME DATE: 31 . 01 . 08 TIME: 15 : 46 : 55 Format: EU ISO MAX V Manual – v. 1.2 – july 2012...

  • Page 10: Set-Up

    This parameter sets the speed of the serial communication through the USB interface. This parameter must be the same in the reader and on the PC program that attempts to receive data from the reader. ISO MAX V Manual – v. 1.2 – july 2012...

  • Page 11: Bluetooth

    This section is meant to describe how to connect the ISO MAX V to a personal computer (PC). The ISO MAX V can be connected to a PC in 3 ways: the first is a wired USB connection, the second a RS-232 connection while the third is a wireless Bluetooth connection (optional).

  • Page 12: Usb Driver Installation Guide For Windows Os

    2. Click on the USB driver link corresponding to your PC’s operating system. 3. The following dialog box appears. Press RUN. 4. Once the driver has been installed, connect the ISO MAX V by plugging the USB cable into the PC. The PC will automatically find the reader.

  • Page 13: Usb Driver Installation Guide For Mac Os

    Bluetooth installation guide for Windows XP OS In order to connect the ISO MAX V reader to a host PC through Bluetooth, a PC equipped with Bluetooth hardware and the ISO MAX V equipped with the Bluetooth module are needed.
  • Page 14 Select the Options tab, then check the feature Turn discovery on. Select the Devices tab. ISO MAX V Manual – v. 1.2 – july 2012...
  • Page 15 Double check that the ISO MAX V reader is switched on and configured to Act as a Server (Menu –> Bluetooth), then press the Add button. The welcome window for the configuration guide of the new Bluetooth peripheral appears. Press Next in order to start the search and recognize the procedure.
  • Page 16 At this point select from the Bluetooth device list the one named “ISO MAX V_BT_Class2_xxx” and press Next. Select the option Let me choose my own passkey and input the number zero (just one 0 character). Press Next to continue. ISO MAX V Manual – v. 1.2 – july 2012...
  • Page 17 Outgoing and the other called Incoming. The Outgoing COMxx is needed to connect to the ISO MAX V reader when it is in Act as a Server mode, while the COMxx Ingoing is needed to connect to the ISO MAX V reader when it is in Act as a Client mode.

  • Page 18: Real-Time Communication

    The reader can be either switched ON or OFF during charge mode. Once the charger has been plugged in, the ISO MAX V charges the battery in less than 2 hours. After 1 hour the battery is already charged to about 80% of its capacity.

  • Page 19: Take Care Of Your Reader

    The ISO MAX V reader is equipped with a Li-Ion type battery. This battery lasts longer and does not contain Cadmium or lead, which makes it much safer for the environment. If the reader is to be destroyed, please return it to a battery specialist for battery recycling.

  • Page 20: Software To Remote Control The Reader

    WINMAX.TXT is a text file (ASCII) and can be read by any text editor. Below is the WinMax utility. The version indication may differ. Some changes may be included in the software and do not require a new manual. ISO MAX V Manual – v. 1.2 – july 2012...
  • Page 21 All this information can be edited and modified if necessary. Use the scroll bar to browse up and down. 6. Clear Memory will erase the ISO MAX memory. ISO MAX V Manual – v. 1.2 – july 2012...

  • Page 22: Tip To Automatically Select The Port Number

    Ex.: "C:\Program Files\WinMax\WinMax.exe" 2 for com2. Note that the number is outside the quotation marks (2 in this example). The number must be placed outside the quotation marks where quotation marks are present. ISO MAX V Manual – v. 1.2 – july 2012...

  • Page 23: Do You Have A Problem Identifying An Animal

    10 Advanced user instructions 10.1 Console commands description This section is meant to describe the console commands implemented in the ISO MAX V in order to remote control the features and the functions of the reader. All console commands begin with ‘.’ or ‘?’ and end with a carriage return character ([CR]=13 dec). The...
  • Page 24 “.DF#” [CR] • Command answer: [LF] • Command action: Sets the date format • Parameter range: #= 0 or 1. where 0=Europe, 1=USA • Description: this command sets the date format. ISO MAX V Manual – v. 1.2 – july 2012...
  • Page 25 10.1.14 Clears the memory’s data Command syntax: “.rX” [CR] • Command answer: [LF] • Command action: Clears the memory’s data • Parameter range: none. • Description: this command clears the memory’s data. ISO MAX V Manual – v. 1.2 – july 2012...
  • Page 26 Description: this command writes a message to the display at the row #. The message string has to be max 15 characters. The message can be written on the row 1, 2 or 3 of the display. ISO MAX V Manual – v. 1.2 – july 2012...
  • Page 27 Command action: gets the “selected hit” function status • Parameter range: #= 0 or 1. • Description: this command returns the selected hit function status. 1: enable function. 0: disable function. ISO MAX V Manual – v. 1.2 – july 2012...
  • Page 28 Command answer: [CR][LF] ”RT=##” [CR][LF] • Command action: gets the reading timeout in seconds • Parameter range: ##= 1 to 99. • Description: this command gets the reading timeout in seconds. ISO MAX V Manual – v. 1.2 – july 2012...
  • Page 29 • Parameter range: #= 0 or 1. • Description: this command returns the key beep function status. 10.1.37 Firmware update function Command syntax: “.uF” [CR] • Command answer: [LF] • ISO MAX V Manual – v. 1.2 – july 2012...

  • Page 30: Certifications

    Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. European directives Hereby, Datamars SA via ai Prati 6930 Bedano-Lugano (CH) declares that the ISO MAX V is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
