From this tab it is also possible to change the password of the current user. The current password
must be specified, the new password must be confirmed (specified twice). Pressing the CHANGE
PASSWORD button, the request is submitted to the reader and the user is told about the success/
failure of the sent command.
4.8 RS 232 S
ETUP

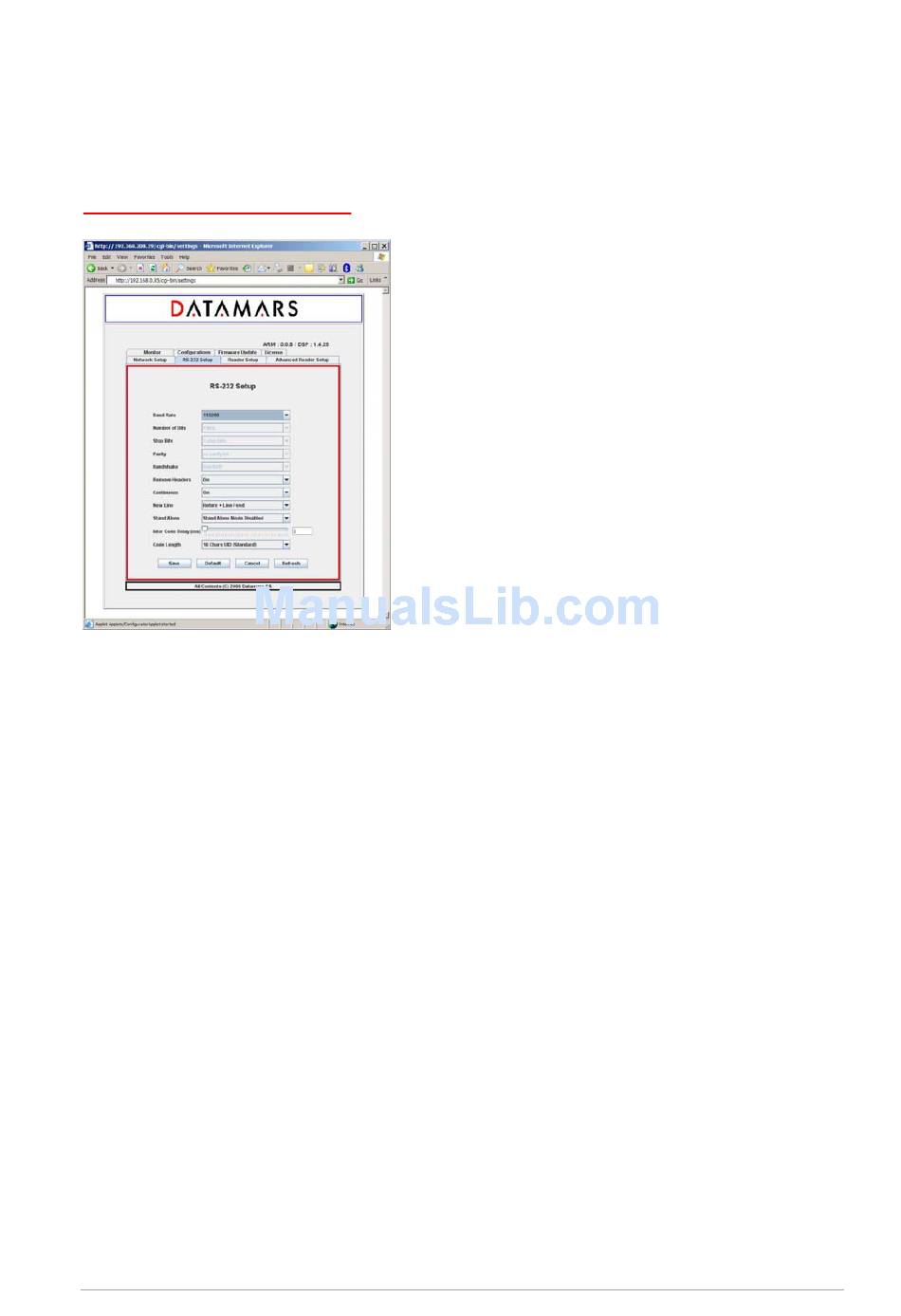

The "RS-232 Setup" allows users to specify the properties of the serial connection.
The "Baud Rate" and "New Line" fields are implemented on the interface (PC or browser) as well as
on the reader.
The fields "Number of bits", "Stop bits", "Parity", "Handshake" are implemented on the interface but
not yet on the reader. Changes done on these fields do not yet affect the system behaviour.
The "Remove Header" field informs the reader that expected responses must contain only essential
information (explanations, warnings and miscellaneous information must be cut off).
The "Continuous" field enables/disables the continuous-reading mode. If this property is enabled,
inventory-cycles are automatically repeated otherwise only one cycle is done.
The "Stand Alone" field has following meanings:
Stand Alone Mode Disabled: after the reader has been turned on, it waits for the start-reading
command to come. Until this moment, it remains in a not-reading state.
Stand Alone Mode Enabled Detect: at power on the reader starts reading automatically and sends
the found UIDs after each inventory cycle.
The "Inter Code Delay" field specifies how much time (in sec/100) must be awaited between the
sending of two subsequent UIDs.
The "Code Length" field specifies the length and format of the sent UIDs.
R-IN1300 MID Manual – v. 1.2 – August '08 16 (29)
