Datamars R-IN1300 MID User Manual

Hf – multi read
Hide thumbs Also See for R-IN1300 MID:
Table of Contents

Advertisement

Quick Links

R-IN1300 MID
HF – multi read
USER MANUAL
Version 3.0
Corporate Headquarters - Textile ID business division:
Via Industria 16
6814 Lamone
Switzerland
Phone: +41 91 935 73 80
Fax: +41 91 945 03 30
textile-id@datamars.com
www.textile.datamars.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-IN1300 MID and is the answer not in the manual?

Questions and answers

Related Manuals for Datamars R-IN1300 MID

Summary of Contents for Datamars R-IN1300 MID

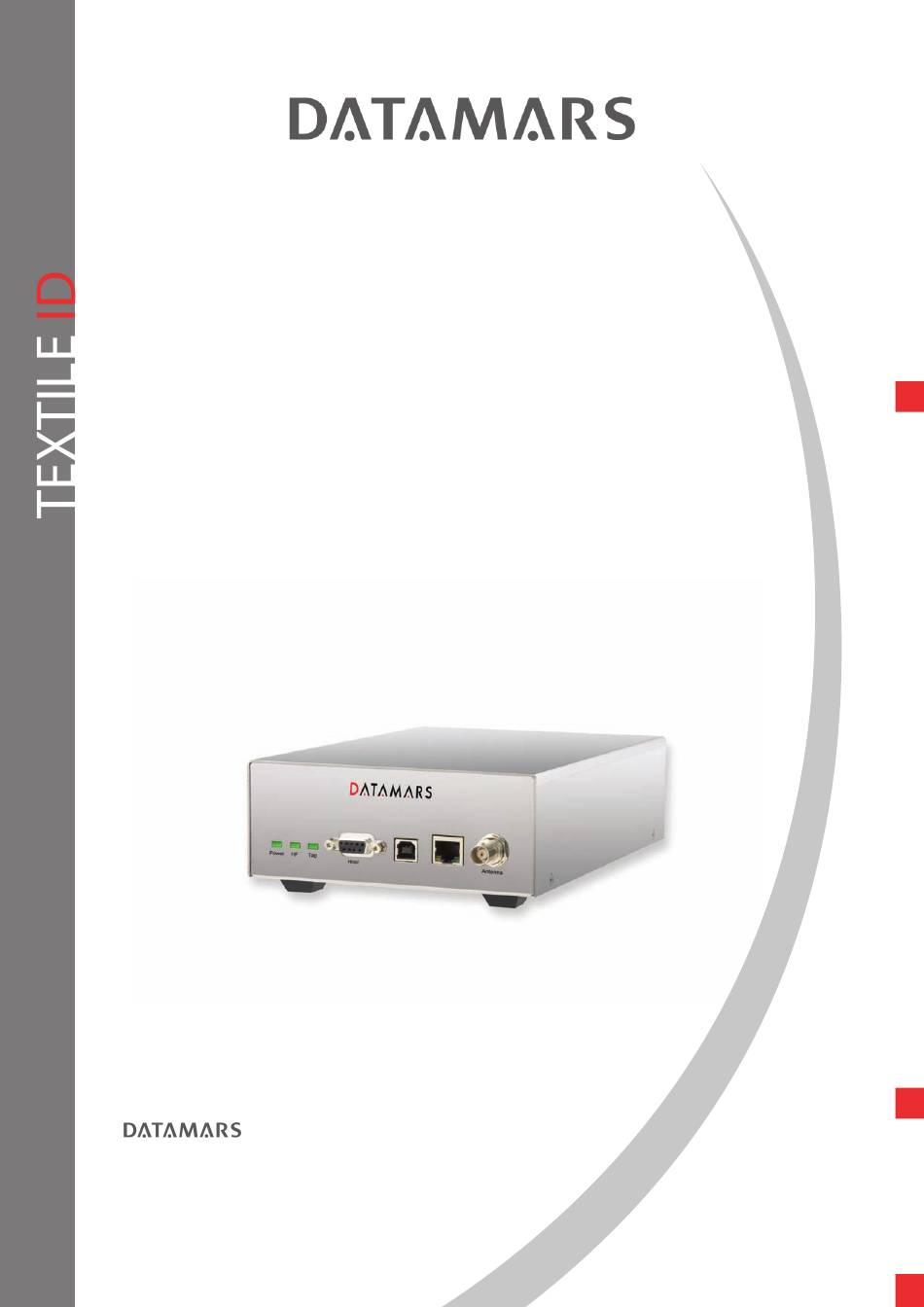

  • Page 1 R-IN1300 MID HF – multi read USER MANUAL Version 3.0 Corporate Headquarters - Textile ID business division: Via Industria 16 6814 Lamone Switzerland Phone: +41 91 935 73 80 Fax: +41 91 945 03 30 textile-id@datamars.com www.textile.datamars.com...

  • Page 2: Table Of Contents

    7.3.5 CE certification ......................34 7.3.6 Warranty ........................34 Appendix A – Connecting the R-IN1300 MID to a PC with a cross cable........35 Appendix B - Code length......................37 Appendix C - Troubleshooting ......................38 ADDENDUM – 24V DC Version of MID-Range Reader..............39 R-IN 1300 MID User Manual – Rev 3.0...

  • Page 3: Introduction

    DATAMARS NTRODUCTION The Datamars R-IN1300 MID High Frequency (HF) RFID-reader, designed to work in industrial environments, is resistant to vibrations, electromagnetic interference and able to detect the following transponder technologies: T-BT 1320, T-BT1315, T-BT1311 (ISO 15693), HF The reader is able to find simultaneously more than one High Frequency (HF - multi read)
  • Page 4 DATAMARS Power Switch Turn ON and OFF the reader. Power Supply Connect the power supply cable (100-240VAC, 50-60 Hz). Power Switch Power Supply R-IN 1300 MID User Manual – Rev 3.0 3 (40)

  • Page 5: Hardware Connections

    You can not use cable other than the 3.5m coaxial 50 cable supplied by Datamars. Additional extension cables at disposal. 2. PC/Terminal or Ethernet Connect the serial white cable from the connector marked “Host” to any serial port (COM) on your PC or the reader “R-IN 1300 MID”...
  • Page 6 After the reader is turned on for some time the temperature might increase. Do not plug/unplug any connectors while the reader is turned ON. Although R-IN1300 MID is protected against ESD, to avoid reader malfunction make sure that no direct electrostatic discharge will happen into the reader case, antennas or even on metallic parts directly in contact with the reader enclosure or antennas structure.

  • Page 7: Operation With Terminal

    DATAMARS PERATION WITH ERMINAL For operation with terminal use any kind of terminal, e.g. Windows HyperTerminal with the following settings: Bits per second 115200 • Data bits • Parity None • Stop bits • Flow control None • IST OF THE COMMANDS OF THE READER All commands must be followed by a carriage return (ENTER).
  • Page 8 DATAMARS *id[_] Delay (ms) between two inventories (for non continuous mode only) *id[0 .. 1000] (default 0 [ms], example *id530) *rh[_] Remove headers: *rh0 does not remove the headers *rh1 removes the headers (default) *ec[_] Echo: *ec0 echo disabled (default) *ec1 echo enabled “echo”...

  • Page 9: Iso 15693 Settings

    DATAMARS *sk[_] Skip time slot on no response: *sk0 skip on no response off *sk1 skip on no response on (default) *ct[_] Collision threshold parameter: *ct[0 .. 100] parameter from 0 to 100 (default 33, example *ct33) *et [_] Communication selection :...
  • Page 10 - Examples: *pp-25 (for negative values use ‘-‘) *pp25 (for positve values do not use ‘+’) NB: Customers are not allowed to modify the value of this setting (Datamars Customer-Support only) *pn[_] Negative pulse width correction: Range: *pn[-30..30] (default: 0) - Examples: R-IN 1300 MID User Manual –...

  • Page 11: I-Code I Settings

    DATAMARS *pn-25 (for negative values: use ‘-‘) *pn25 (for positive values do not use ‘+’) NB: Customers are not allowed to modify the value of this setting (Datamars-Customer-Support only) SETTINGS *nt[_] Time slots I-Code I: single time slot 4 time slots...
  • Page 12 DATAMARS To specify “Carriage-Return”, type “\r” To specify “New-Line”, type “\n” To specify “Horizontal-Tab”, type “\t” *fe[_] Journal-file extension: Valid values: sequences of characters (max. length = 5 ) R-IN 1300 MID User Manual – Rev 3.0 11 (40)

  • Page 13: Operation With Graphical User Interface (Gui)

    (GUI) PERATION WITH RAPHICAL NTERFACE The R-IN1300 MID can be operated through 2 kinds of GUIs: The http GUI (Java applet) via the Ethernet port which can be used through a standard • browser like MS Internet Explorer or Firefox.

  • Page 14: Connecting With The Com (Rs-232)

    The reader “R-IN 1300 MID” can be connected to a PC with a serial connection and operated through the Datamars Reader Configuration The Datamars Reader Configuration is a Java application which makes use of the command line intereface through the RS-232 interface. The application need to be installed on the PC from the the CD-ROM supplied with the reader.

  • Page 15: Login

    DATAMARS All parameters described in this manual refer to the “High Frequency Reader R-IN 1300 MID”. The graphical application requires a Java2 or Java5 plug-in. If the requested plug-in is already installed on your PC, you are immediately able to run the application. Otherwise the system will try to connect to the WWW to download the plug-in.
  • Page 16 DATAMARS Please note: in case of problems while connecting to the reader via browser, try to clear the cache of the browser. 1) First step: select “Tools” and then “Internet Options” 2) Second step: press the button *Delete…” 3) Third step: press the button “Delete”...

  • Page 17: Logout (Web Server Version Only)

    DATAMARS OGOUT ERVER VERSION ONLY The “administrator” can disconnect every session to the reader in case of suspect use of the GUI (i.e. a user is logged in for too much time monopolizing the system). The “administrator” must go to the URL: http://ip-address-of-the-reader/forceLogout.html and give her/his user password.

  • Page 18: Rs 232 Setup

    DATAMARS The “Location” field specifies the place where the reader has been put. From this tab it is also possible to change the password of the current user. The current password must be specified, the new password must be confirmed (specified twice). Pressing the CHANGE PASSWORD button, the request is submitted to the reader and the user is told about the success/ failure of the sent command.

  • Page 19: Reader Setup

    DATAMARS EADER ETUP The “ReaderSetup” tab allows users to specify overall properties of the reader. It is possible to specify: the antenna power: 0 mW – 4 000 mW (1000 mW = 1 W; 2000 mW = 2 W; etc. ) •...

  • Page 20: Advanced Reader Setup

    This Tab contains fields affecting the performance of the reader depending on the architecture of the installation. Those configuration-fields are reserved for technical purposes only and should NEVER be changed by customers. For more information please contact “Datamars – Support Team” 4.10 NVENTORY ETUP The “InventoryrSetup”...

  • Page 21: Monitor

    DATAMARS At this point, after sending the read-command, the reader performs so many inventories as specified waiting in between for the specified number of ms to expire. After having completed the inventories, the system stops reading. If the configured architecture is other than “Table-Top – non continuous”, those fields do not have any influence on the behaviour of the reader.

  • Page 22: Configurations

    DATAMARS 4.12 ONFIGURATIONS The "R-IN 1300 Reader" offers a tool giving the user the possibility to save and/or reload configuration files. First of all select the tab named "Configurations". To save the currently active configuration, select the destination folder using the navigator, write the destination file name in the related input field and then press the button "Save Configuration".

  • Page 23: Usb Setup

    First of all select the tab named "Firmware Update" and select the file containing the new software (delivered by Datamars SA) using the navigator and then press the “Install File”-button. The new software is now transferred (copied) from the PC to the reader. A slider tells about the transferring-process status.

  • Page 24: Tuning

    DATAMARS Select from the “USB usage” options the desired functionality (serial disabled, serial emulation, mass- storage emulation). If “USB-Mass-storage Emulation” is chosen, the UIDs are written into a file (journal-file) whose format is configurable (CSV or custom). Refer to chapter 5 for an exhaustive explanation about installing, using and manipulating the USB- serial and mass-storage emulation.

  • Page 25: Usb Usage

    DATAMARS USB U SAGE This chapter describes how to correctly handle the USB-Device functionalities. Please read this chapter carefully and follow strictly the described manipulations. USB S ERIAL MULATION 5.1.1 F IRST USAGE Select the “USB Serial” functionality with *us1” (on terminal) or via GUI •...

  • Page 26: Further Usage

    DATAMARS Answer “Continue Anyway” • Click “Finish” • 5.1.2 F URTHER USAGE For further usage there is no need to install the USB Serial Drivers. Just specify that you intend to use the USB-Serial-Emulation and plug the USB-cable in. R-IN 1300 MID User Manual – Rev 3.0...

  • Page 27: How To Discover Which Com-Port Corresponds To The Usb-Serial-Emulation

    DATAMARS 5.1.3 H COM-P USB- OW TO DISCOVER WHICH ORT CORRESPONDS TO THE ERIAL MULATION Open the “control panel”. Select “System” R-IN 1300 MID User Manual – Rev 3.0 26 (40)
  • Page 28 DATAMARS Select “Hardware” and “Device Manager”: Select “Ports” to see which COM corresponds to the “USB-Gadget Serial”(ie: COM7). Now you can open a terminal on “Gadget Serial” (ie: COM 7) without need to specify baud rate, data-bits, parity-bit, stop-bit and flow-control.

  • Page 29: Usb Mass Storage Emulation (Mid Plus Only)

    DATAMARS USB M (MID P TORAGE MULATION To use the mass storage emulation please follow carefully the following instructions. At the beginning of the manipulation, the reader is assumed to be turned off. Make sure that your PC and the R-IN1300 are NOT connected via USB-cable.
  • Page 30 DATAMARS Unplug the USB-Cable and turn the reader off (data will be deleted) • Repeat the whole procedure from the beginning • Please note: The USB-Cable can be plugged in ONLY when the reader is not reading. The journal file in the emulated USB-Mass-Storage should only be copied to the PC. The saved data will be automatically deleted when the reader is turned off.

  • Page 31: Tuning

    DATAMARS UNING The noise-meter function only works in TableTop-Mode with ISO-15693 technology. It is therefore possible that your current configuration needs to be modified. It is recommended to save your current configuration into a file on your PC, to restore the default configuration on the reader, perform the needed measurements and in case reload your specific configuration.
  • Page 32 DATAMARS The average value is computed and shown in the box below the Stop SNR button. R-IN 1300 MID User Manual – Rev 3.0 31 (40)

  • Page 33: Technical Specifications For R-In1300 Mid

    PECIFICATIONS FOR PERATIONAL CHARACTERISTICS The DATAMARS SA RFID reader R-IN1300 MID is an integrated analog system for RFID- Applications (RFID=radio frequency identification) which works at 13.56MHz. It allows reading data stored into ISO-RFID transponders or ISO-Labels at 13.56 MHz. Single- and Multi-read operation are supported.

  • Page 34: Regulations

    7.3.2 EN 300330-1/-2 (E UROPE The R-IN1300 MID system is a sending and receiving equipment and is in accordance with the R & TTE directive EN 300 330-1/-2. The R-IN1300 MID system fulfils the requirements of this regulation.

  • Page 35: Ic (Canada)

    7.3.5 CE CERTIFICATION The system R-IN1300 MID is in accordance with the requirements of protection, which are defined in the regulation concerning the electromagnetic tolerability EN301 489-1, -3, emitted by the council for the harmonisation of regulations in the member countries. The European Community regulation for Low Frequency, EN 60950, is respected.

  • Page 36: Appendix A - Connecting The R-In1300 Mid To A Pc With A Cross Cable

    DATAMARS A – PPENDIX R-IN1300 MID ONNECTING THE TO A WITH A CROSS CABLE If the reader “R-IN 1300 MID” is directly connected to a PC, you must still do following steps: Open the “Network Connections” frame of Windows (Hint: Start -> Settings -> Network Connections) and double-click the entry corresponding to the connection you intend to use to communicate with the reader.
  • Page 37 DATAMARS Click the “Use the following IP address” radio-button and specify an IP in the same range of the readers IP (i.e. 192.168.1.1), the subnet-mask (255.255.255.0). You can ignore the “Default Gateway”. Leave the configuration tool confirming by clicking the OK button.

  • Page 38: Appendixb - Code Length

    DATAMARS PPENDIX ODE LENGTH In terminal mode you can configure the reader to return the UID code in 4 different formats: 1. *cl0: Standard 16 characters UID 2. *cl1 to *cl9: The reader returns only the right most digits of the original 16 digit UID.

  • Page 39: Appendixc - Troubleshooting

    PPENDIX ROUBLESHOOTING If you run into any problem using your reader, use the following table to troubleshoot the problem. If the problem persists, contact support at support@datamars.com or +41 91 935 73 80. SYMPTOM CAUSE AND/OR CORRECTIVE ACTIONS Is the antenna cable connected to the •...

  • Page 40: Addendum - 24V Dc Version Of Mid-Range Reader

    DATAMARS ADDENDUM – 24V DC V MID-R ERSION OF ANGE EADER 1. DC INPUT CONNECTOR 1.1. DC PLUG PINOUT AND WIRE PREPARATION Pin number Description DC Positive terminal Earth (must be connected) DC Negative terminal (GND) Wire section Cable Outer diameter 0.25-0.34 mm2...
  • Page 41 DATAMARS 2. I NSTALLATION NSTRUCTION The following figure shows how to connect the RIN1300MID to a 24VDC power supply. Note: for optimum performance the earth must be connected. R-IN 1300 MID User Manual – Rev 3.0 40 (40)
