INSTALLATION & OPERATION INFORMATION FOR MODELS N5100XXX
PRODUCT DATA
Pump Design ............................................Duplex Diaphragm
Wetted Parts
Diaphragm Material........ Santoprene
Check Valve Material .......Santoprene
Housing material ........................................Acetal Copolymer
Ports ............................Gas Inlet & Outlet 1/4" (6.3 mm) Barb
Net Weight ......................................................1.10 lb. (0.5 Kg)
®
A registered trade mark of Monsanto Co.
®
A registered trade mark of I.E. DuPont Co.
DESCRIPTION
FLOJET Industrial N5100 Series Pumps are designed for
light general commercial and industrial applications.
These pumps are constructed from a selection of
materials for handling a broad range of chemicals*.
NOTE: Not to be used with any Fluids with a flash point
below 100˚F (38˚C).
*For Chemical Compatibality of diaphragm material
please refer to the Chemical Compatibility Guide
referenced in F100-227.

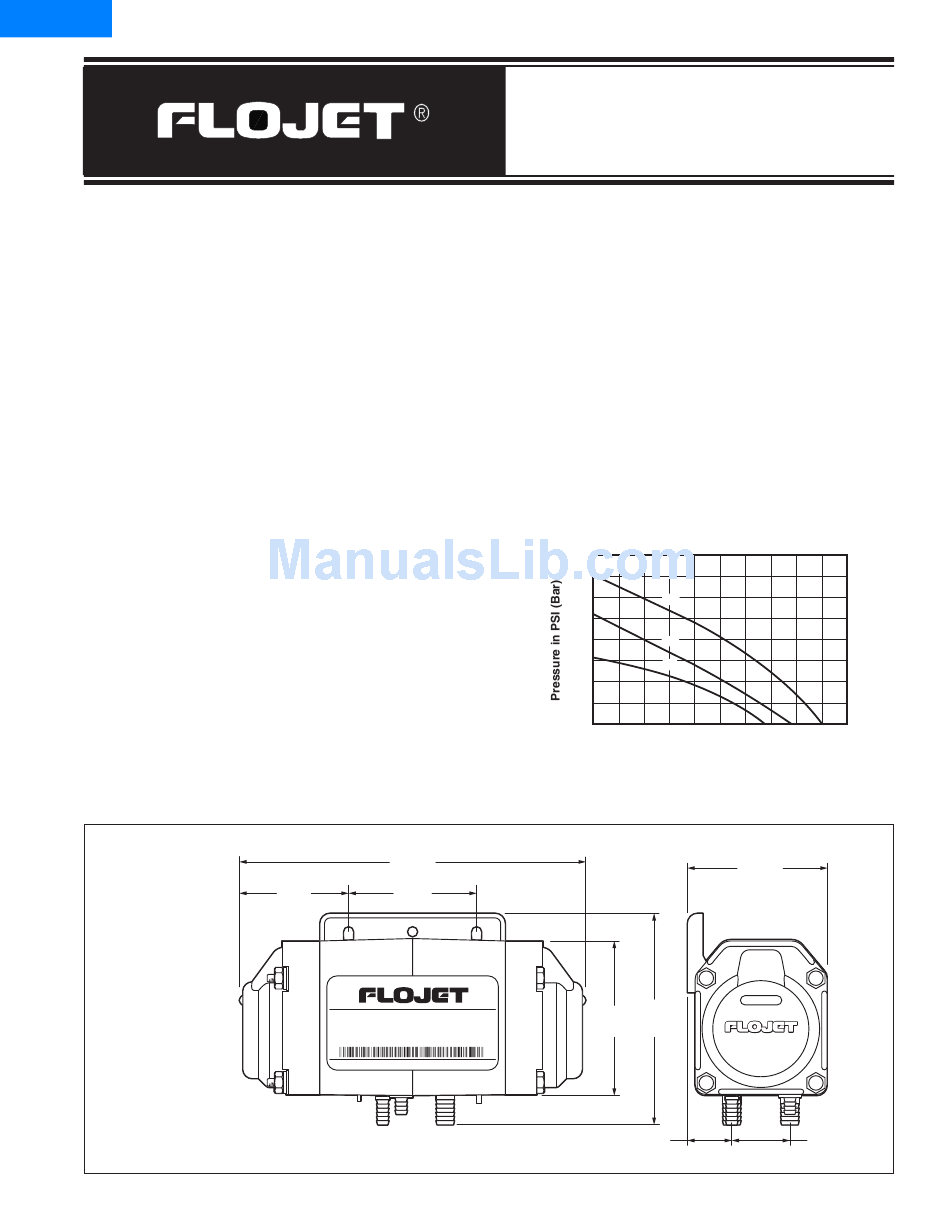

DIMENSIONAL DRAWING
Inches (millimeters)
Dimensional tolerances
± 0.06 inches
Consult factory if precise
details are required.
®
®
, Viton
, Buna, or Geolast
®
®
, Viton
, Buna, or Geolast
Product Inlet 3/8" (9.5 mm) Barb
Product Outlet 3/8" (9.5 mm) Barb
6.18
(157)
1.98
2.22
(50)
(56)

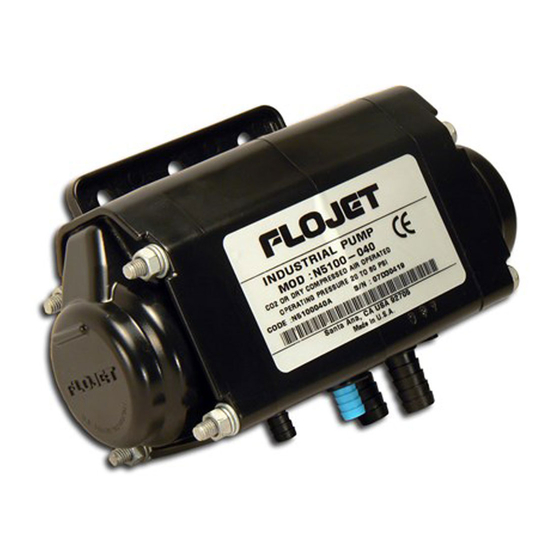

MODEL : N5100-XXX
CO2 OR DRY COMPRESSED AIR OPERATED
OPERATING PRESSURE 20 TO 80 PSI
SANTA ANA, CA 92705
Industrial Air Driven Pump
STANDARD MODELS
N5100-010 ..........Buna
N5100-020 ..........Viton
®
N5100-040 ..........Santoprene
N5100-050 ..........Geolast
®
PERFORMANCE SPECIFICATIONS
PUMP
Liquid Temperature Min ..............................................40°F (4°C)
............................Max ..........................................120°F (49°C)
Priming ..............Dry ..........................................28 ft. (8.5 m)
............................Wet ..........................................32 ft. (9.8 m)
Flow Rates ........Max ....................Up to 2.5 GPM (9.5 LPM)
Gas Supply Pressure ................20 to 80 PSI (1.4 to 5.6 bar)
Noise Level ........Max ......................................................87dB
Santoprene ® , Viton ® , Buna, or Geolast Material with 1/2" Ports
80
(5.5)
60
80*
(4.1)
40
60*
(2.8)
40*
20
(1.4)
0.5
1.0
(1.9)
(3.8)
Flow in GPM (LPM)
*Indicates Air Inlet Pressure in PSI
NOTE: For maximum running life do not exceed
80 PSI (5.5 bar) Gas Inlet Pressure
2.89
4.14
(74)
(105)
0.77
(19)
N5100 Series
®
1.5
2.0
2.5
3.0
(5.7)
(7.6)
(9.5)
(11.4)
2.42
(61)
1.00
(25)
