FLOJET N5100 Series Installation & Operation

INSTALLATION & OPERATION INFORMATION FOR MODELS N5100XXX

PRODUCT DATA

Pump Design ............................................Duplex Diaphragm
Wetted Parts
Diaphragm Material ....................Santoprene
Check Valve Materials ....................Santoprene
Housing material ........................................Acetal Copolymer
Ports ............................Gas Inlet & Outlet 1/4" (6.3 mm) Barb
Net Weight ....................................................1.10 lb. (0.5 Kg)

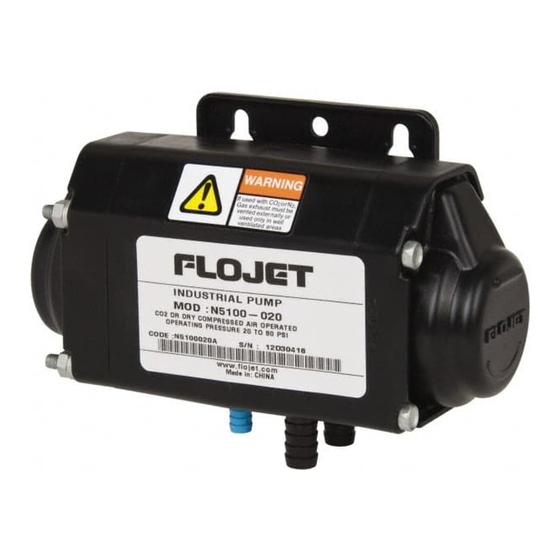

DESCRIPTION

FLOJET Industrial N5100 Series Pumps are designed for
light general commercial and industrial applications.
These pumps are constructed from a selection of
materials for handling a broad range of chemicals.
Allowed fluids for
Santoprene ® materials
Potable Water,
Alkaline, Soaps
Alcohols, Ketones
Allowed fluids for Buna
& Viton ® materials
Oils, Solvents, D-Limonene,
Aromatic & Halogenated
Hydrocarbons
®
A registered trade mark of Monsanto Co.
®
A registered trade mark of I.E. DuPont Co.

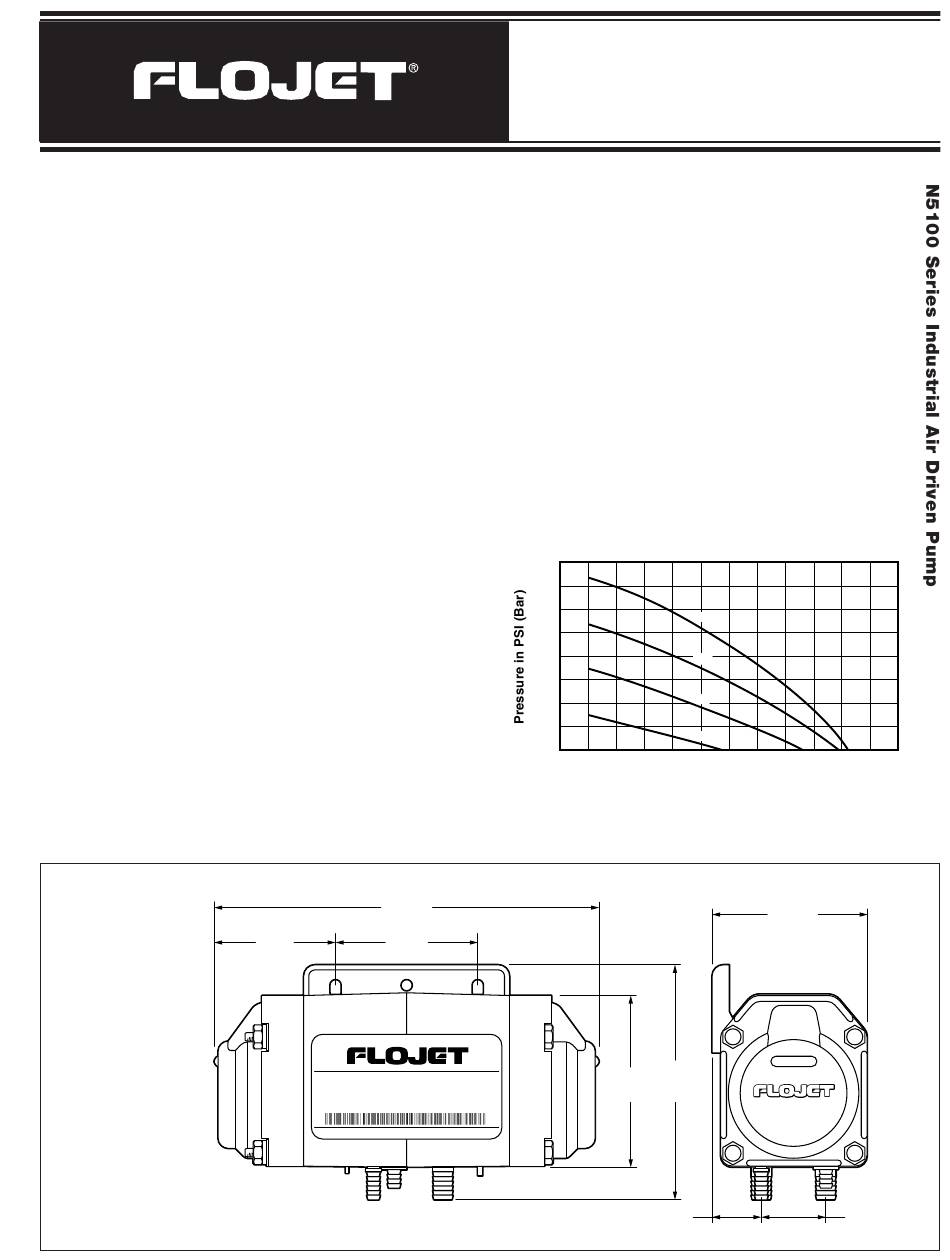

DIMENSIONAL DRAWING

Inches (millimeters)
Dimensional tolerances
± 0.06 inches
Consult factory if precise
details are required.
® ®
, Viton or Buna
® ®
, Viton or Buna
Product Inlet 3/8" (9.5 mm) Barb
Product Outlet 3/8" (9.5 mm) Barb
Not Allowed fluids for
Santoprene ® materials
Oils, Solvents, Soaps with
Solvents, D-Limonene, Acids,
Aromatic Hydrocarbons
Not Allowed fluids for
Buna & Viton ® materials
Ketones, Acetones,
Automotive Brake Fluid,
Ammonia, Ethanol, Acids
6.18
(157)
1.98 2.22
(50) (56)
MODEL : N5100-XXX
CO2 OR DRY COMPRESSED AIR OPERATED
OPERATING PRESSURE 20 TO 80 PSI
20 ICON, FOOTHILL RANCH, CA
Industrial Air Driven Pump

STANDARD MODELS

N5100-010 ..........Buna
®
N5100-020 ..........Viton
N5100-030 ..........Santoprene

PERFORMANCE SPECIFICATIONS

PUMP
Liquid Temperature Min ......................................40°F (4.4°C)
............................Max ................................120°F (48.9°C)
Priming ..............Dry ......................................28 ft. (8.5 m)
............................Wet ....................................32 ft. (9.8 m)
Flow Rates ........Max ............Up to 1.92 GPM (7.3 L/min)
Gas Supply Pressure ............20 to 80 PSI (1.4 to 5.6 bar)
Noise Level ........Max ................................................87dB
Santoprene, Buna & Viton Material with 1/2" Ports
80
(5.5)
60
(4.1)
40
(2.8)
20
(1.4)
0 0.5 1.0
(1.9) (3.8)
Flow in GPM (l/min)
*Indicates Air Inlet Pressure in PSI
2.89 4.14
(74) (105)
0.77
(19)
N5100 Series
®
80*
60*
40*
20*
1.5 2.0 2.5
(5.7) (7.6) (9.5)
2.42
(61)
1.00
(25)
3.0
(11.4)
