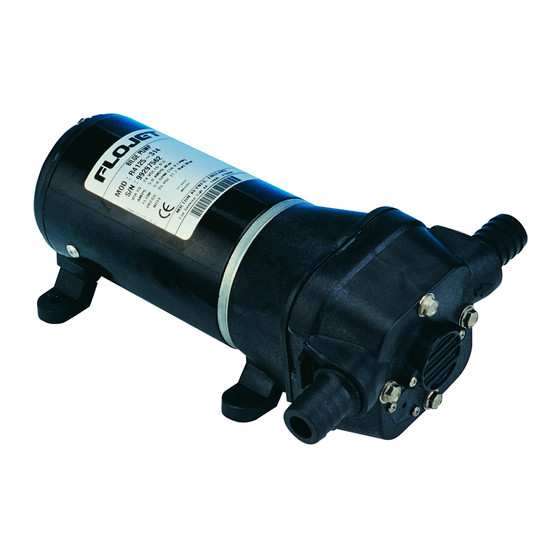

FLOJET quad II diaphragm 4125 series User Manual

FEATURES
• Self-Priming
• Dry Running
• Soft, Noise Absorbing Mounts
• 300 Gallons Per Hour
• Corrosion Resistant Materials
• Models Meet U.S.C.G. Electric Standards
SPECIFICATIONS
Motor: Permanent Magnet, Ball Bearings on both
Front and Rear Endbells. CE Models are fully
suppressed.
Pump: Four chamber diaphragm positive displace-
ment design; Self-priming up to 6 ft. suction
lift; Pump able to run dry without damage;
Removable port to hose connectors.
(Available on 12 & 24V d.c. Models)
MODEL*
4125-114
4125-314
4125-343
* CE fully suppressed models are identified by a prefix "R" and a CE mark on the label. (i.e. R4125-314).
Self Declaration Of Conformance (SDOC) is available upon request.
OPERATION
Your "Quad II" pump is designed to self-prime up to 6
feet suction lift (vertical distance from bilge pick-up to
pump inlet). The maximum recommended discharge
head (distance outlet is above pump) is 15 feet. It is
VOLTS
12V dc
24V dc
32V dc
3.5 3.44
(90) (87)
4.75
(120)
Pump Series Dimensions - Inches (mm)
Height
4125-XXX 3.75 (95) 6.3 (160)
AMP DRAW
@ 10 psi (0.7 bar)
8.5
3.6
2.8
recommended you utilize an automatic on-off switch so
that the pump is turned off when not in use. The "Quad
II" is able to run dry (no liquid) for extended periods,
however, this could cause needless battery drain.
"Quad II Diaphragm"
Models4125 Series
Bilge Pump
Width Length
9.2 (234) 6.0 (2.8)
FLOW
GPM (l/min)
5.0 (18.9)
5.0 (18.9)
5.0 (18.9)
Weight
lb. (kg)
