FLOJET 4305-144 Instruction Manual

FEATURES
• Self-Priming
• Dry Running
• Soft, Noise Absorbing Mounts
• Corrosion Resistant Materials
• D.C. Models Meet U.S.C.G. Electric Standards
• A.C. Models Have 6' Power Cord
SPECIFICATIONS
Motor: Permanent Magnet, Ball Bearing. CE Models
are fully suppressed.
Pump: Four chamber diaphragm design; Self-priming
up to 10 ft. suction lift; Pump able to run dry
without damage; Removable port to hose
connectors.
Note: 4300 Series pumps are not bypass type
pumps and can be used in systems with an
accumulator tank.
(Available on 12 & 24V d.c. Models and 230V a.c. Model)
MODEL*
4305-144
4305-500
4305-501
4305-502**
4305-503**
4325-143
4325-343
4325-443
4325-043
4325-243
**Low Flow/Low Pressure Models
* CE fully suppressed models are identified by a prefix "R" and a CE mark on the label. (i.e. R4305-500)
Self Declaration Of Conformance (SDOC) is available upon request.
OPERATION
With pump switch off, and battery fully charged, fill water
tank, open all faucets then turn pump switch on. Water
will begin to flow. When water is free of air, turn faucets
off, remember you are filling the water heater and the
AMP DRAW
VOLTS @ 10 psi (0.7 bar)
12V dc
12V dc
24V dc
24V dc
12V dc
12V dc
24V dc
32V dc
115V ac
230V ac
Automatic Water System Pump
3.5 3.44
(90) (87)
3.25
(82)
Pump Series
Height
4305-xxx 3.75 (95) 6.3 (160)
4305-144 3.75 (95) 6.3 (160)
4325-XXX 3.75 (95) 6.3 (160)
FLOW
GPM (V.in)
5.0 3.5 (13.5)
4.0 3.3 (12.5)
1.8 3.3 (12.5)
2.0 2.3 (8.7)
2.4 2.3 (8.7)
6.0 4.5 (17)
2.5 4.5 (17)
2.0 4.5 (17)
0.5 4.5 (17)
0.3 4.5 (17)
toilet and shower lines. When all valves are shut off
pump will stop. Should pump fail to stop, turn switch off
and see the trouble shooting guide..

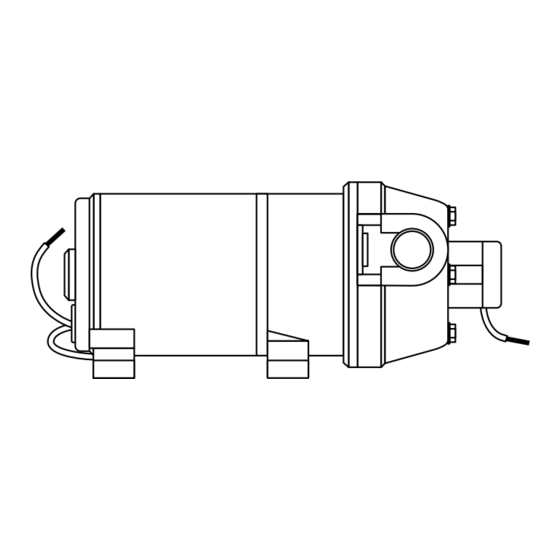

"Quad II Diaphragm"
Models4305 & 4325
Dimensions - Inches (mm)
Width Length
8.2 (208)
8.6 (218)
9.9 (252)
PRESSURE SWITCH
MAX psi (bar)
40 (2.8)
35 (2.5)
35 (2.5)
20 (1.3)
20 (1.3)
40 (2.8)
40 (2.8)
40 (2.8)
40 (2.8)
40 (2.8)
Weight
lb. (kg)
3.9(1.8)
4.5(2.1)
6.0(2.8)
