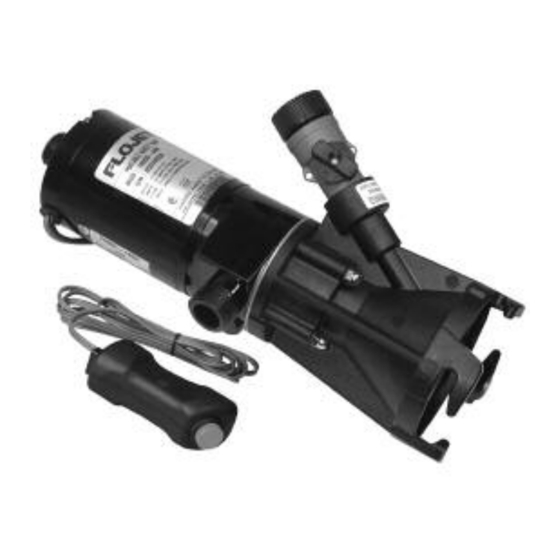

Portable rv waste pump self-priming macerator

Advertisement

Quick Links

PORTABLE RV WASTE PUMP
SELF-PRIMING MACERATOR
FEATURES
• Connects directly to the RV waste outlet
• Eliminates 3" (75 mm) sewer hose
• Garden hose discharge port
• Fresh water rinse capabilities
• Remote handheld on/off switch with
6' (1.8 m) wire harness and fuse
• Ability to dump longer distances
• Ability to drain holding tanks at home
• Easy clean up and storage
• Rugged portable storage case
• USCG and CSA listed
SPECIFICATIONS
Pump:
Self-Priming Flexible Impeller with
Stainless Steel Wearplate
Impeller:
Jabsco Nitrile Compound
Macerator: Stainless Steel Cutter reduces particle
size to 1/8" (4 mm) maximum
Seal:
Lip Type
Ports:
Inlet – 3" (75 mm) RV Connector
Outlet – Garden Hose – see table
Motor:
12 Vdc Permanent Magnet Type,
Fully Enclosed, with Stainless Steel Shaft
Intermitent Duty Only
Weight:
6 lb (2.8 kg)
Case Size: 12" x 13" x 5.5"
(300 mm x 315 mm x 140 mm)
This pump should be used in accordance with EPA
Sanitation Regulations.
DO NOT RUN DRY FOR MORE
THAN 30 SECONDS.
APPLICATION
The Flojet 18555-000 DC portable waste pump is the
ideal solution for emptying holding tanks on recreational
vehicles and avoiding dump stations. The macerator
section grinds waste down to a particle size of
1/8" maximum so it can easily be pumped through a
garden hose. Empties a typical 40-gallon holding tank in
less than 5 minutes. Do not run more than 15
minutes continuously.
The 18555-series waste pump will macerate and pump
all waste and tissue normally found in recreational
vehicle waste systems. IT WILL NOT HANDLE HARD
SOLID OBJECTS, SANITARY NAPKINS OR RAGS.
RECOMMENDED HOSE TABLE
Hose Size
5/8" (16 mm)
3/4" (19 mm)
Recommended lengths are based on horizontal
discharge. Longer discharge runs create higher
resistance and may result in the pump motor over
heating.
DO NOT MOUNT PERMANENTLY
TO THE RV WASTE PORT.
Model 18555-000
Maximum Hose Length
25 feet (7.5m) max
50 feet (15m) max
