FLOJET 3426 series User Manual

FEATURES

• Self–Priming
• Dry Running
• Soft Noise Absorbing Mounts
• Snap–in Port Fittings
• Built-in Bypass : Less Pulsation
• Reduces need for accumulator tank
• Corrosion Resistant Materials
• Meets ISO 8846 (Ignition protection)

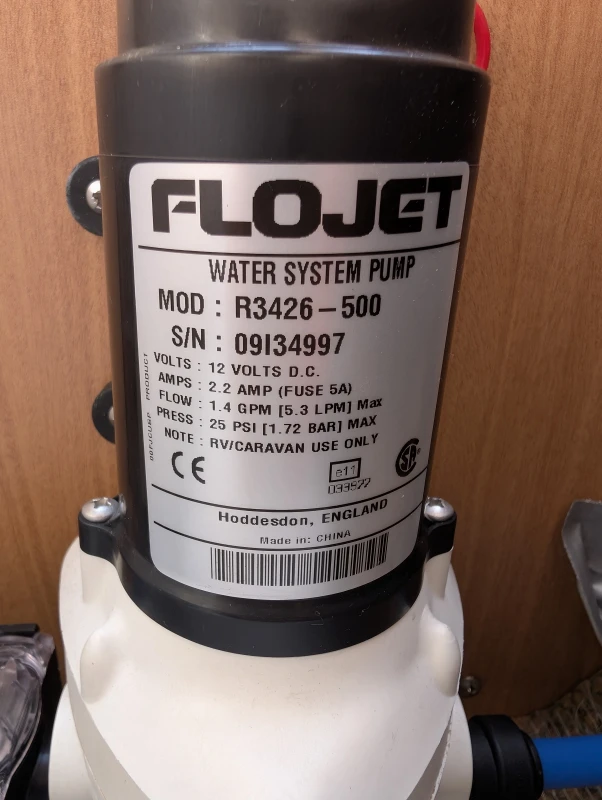

SPECIFICATIONS

Motor: Permanent Magnet, Ball Bearing
Totally Enclosed. CE Models are
fully suppressed.
Pump: Three chamber diaphragm design
Self-priming up to 9 feet suction lift;
Pump able to run dry without damage
MODEL* VOLTS
03526144 12V dc
R3626344 24V dc
R3426144 12V dc
R3426344 24V dc
R3426148 12V dc
R3426348 24V dc
*CE fully suppressed models are identified by a prefix "R" and a CE mark on the label.(i.e. R3626144).
Self Declaration Of Conformance (SDOC) is available upon request.

OPERATION

With pump switch off and battery fully charged, fill water tank, open all faucets, then turn pump switch on. Water will
begin to flow. When the water is free of air, turn faucets off. Remember, you are filling the water heater and the toilet
and shower lines. When all valves are shut-off, pump will stop. Should pump fail to stop, turn switch off and see the
trouble shooting guide. CAUTION - Pump surface will get hot to the touch if operated for extended periods of time
under pressurized conditions.

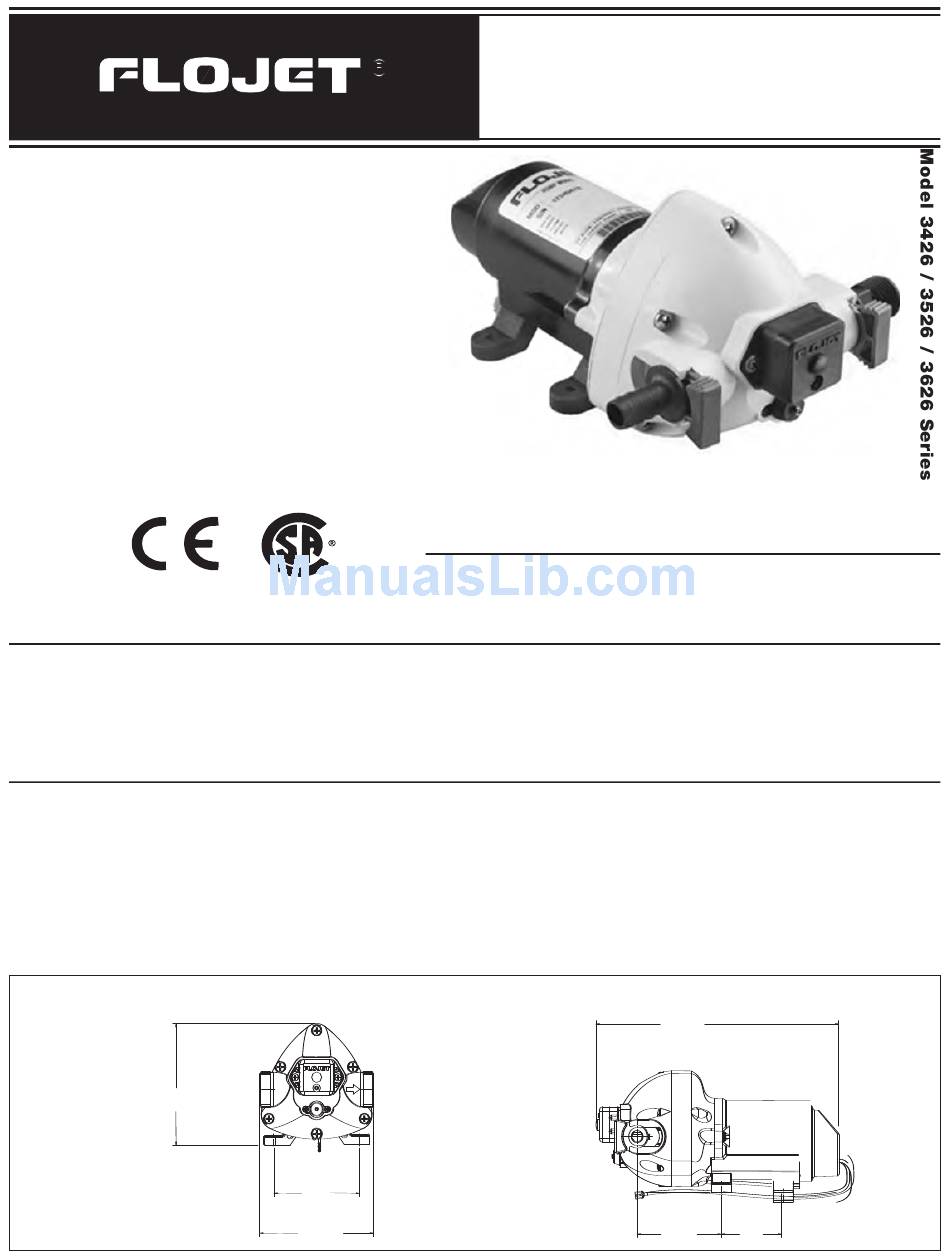

DIMENSIONAL DRAWING

4.75"
(121 mm)
Pump
Series
3X26XXX
AMP DRAW
@10 psi (0.7 bar) GPM (LPM)
4.4
2.2
4.4
2.2
3.5
1.7
3.18"
(80 mm)
4.24"
(108 mm)
"Triplex Diaphragm"
3426 / 3526 / 3626 Series
Automatic Water System Pump
Dimensions English (SI)
Height Length
inches (mm) inches (mm)
4.75 (121) 9.00 (229)
FLOW PRESSURE SWITCH
Max psi (bar)
2.9 (11) 50 (3.4)
2.9 (11) 40 (2.8)
2.9 (11) 25 (1.7)
2.9 (11) 25 (1.7)
2.0 (8) 25 (1.7)
2.0 (8) 25 (1.7)
(229 mm)
(80 mm)
Width
inches (mm)
6.00 (152)
BYPASS
Yes
Yes
Yes
Yes
Yes
Yes
9.04"
3.12" 2.25"
(65 mm)
Weight
Lb (Kg)
3.50 (1.59)
