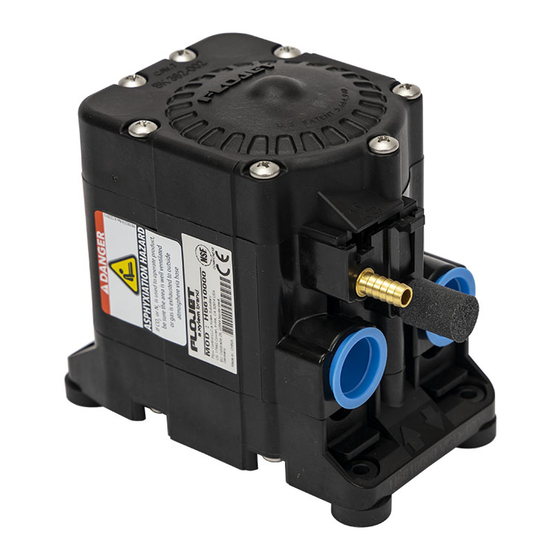

FLOJET G56 Installation

TECHNICAL SPECIFICATIONS

Materials of Construction (wetted parts): Polypropylene, EPDM
Temperature Limits:................................30° – 120°F (-1.1° – 49°C)
Weight: ..................................................................................3.3 oz.
Dimensions: ..............................5 3/16" H x 4 13/16" W x 2 3/8 D
Approvals: ......................................................................NSF listed

APPLICATION INFORMATION

Flojet's G56 Flow Reversal Valve (FRV) is designed as an add-on
accessory for the G56 Beer Pump to allow beer line cleaners
to run cleaning solution through a Flojet G56 pump driven beer
system in both directions. Running cleaning solution through
draught beer systems in alternating directions from the faucet
to the tapping device (and vice versa) has been found
to enhance cleaning efficiency. Further, a multiple beer faucet
system utilizing G56 beer pumps with Flow Reversal Valves
allows for multiple lines to be cleaned at one time. This can
be done by connecting keg taps with double flushers
and connecting faucets with cleaning jumpers (see Line
Cleaning Diagram).

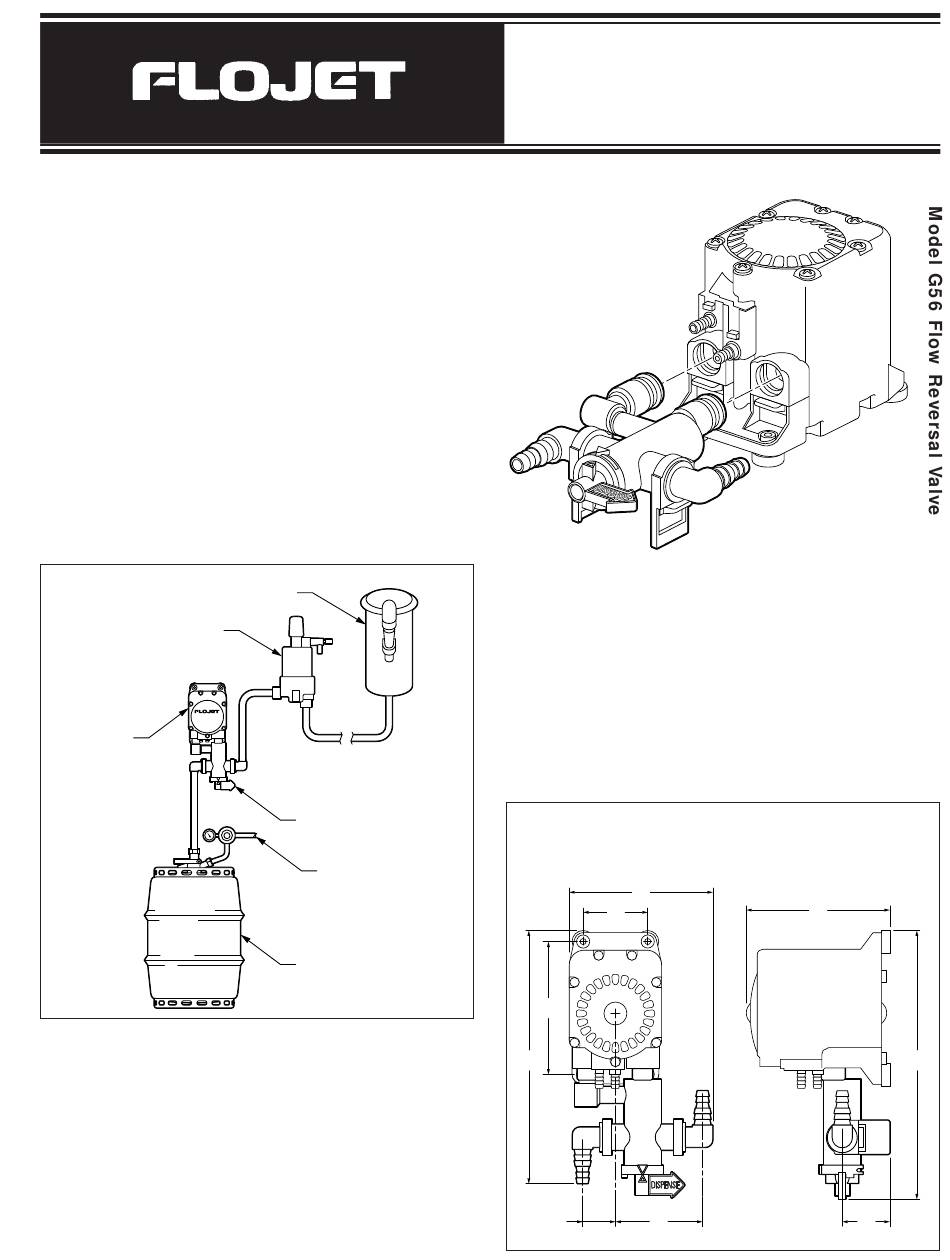

TYPICAL INSTALLATION

FOB
Detector
Flojet G56
Beer Pump
ASSEMBLY TO G56 PUMP
1. Slide port clips back against base of pump.
2. Insure that both O-rings of the FRV are adequately
lubricated.
3. Slide FRV ports into pump and secure with clips (see
Assembly Drawing).
4. Attach inlet tubing from keg to the left side port fitting and
secure with Oetiker Clamp (clamps not provided).
5. Attach discharge tubing to the right side port fitting and
secure with Oetiker Clamp.
6. Install air inlet and exhaust ports to pump.
®
Beer
Faucet
Flow Reversal
Valve
CO Supply
2
Beer
Keg
Flow Reversal Valve

ASSEMBLY DIAGRAM

MOUNTING
• Pump must be located within 10 ft. (1.83 m) above or below
the keg or cask.
• Pump ports must be facing down to maximize pump
performance.
• Mounting grommets are part of pump assembly and add
stability.
• Fasten pump securely to wall or rack.
• If using a FOB device, mount it slightly above and directly
after the discharge of the pump. Caution: If a FOB is not
used, the pump will continue to cycle after the keg has run dry.
DIMENSIONAL DRAWING
Inches (Millimeters)
Dimensional tolerances
± 0.06 inches
4.92
(125)
2.20
(56)
4.52
(115)
8.63
(219)
TRIANGLES
MUST
LINE UP
1.11 2.96
(28) (75)
Installation for
Model G56
Consult factory if precise
details are required.
4.84
(123)
9.13
(232)
1.59
(40)
