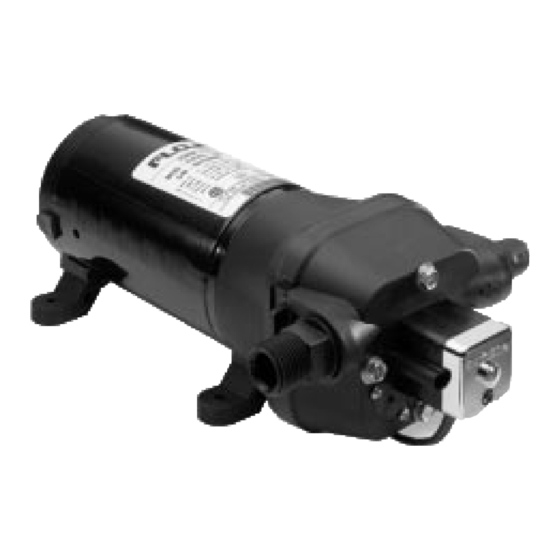

FLOJET R4515-743 User Manual

SENSOR VSD™
WATER SYSTEM
FEATURES
• Variable Speed Control
• Solid State Pressure Sensor
• Nearly Silent Operation / No Cycling
• Operates on 12Vdc or 24Vdc
• Controls Pressure by Changing
Motor Speed
• Speeds Up As Demand Increases
• Self-priming / Runs Dry
• No Accumulator Tank Needed
• CSA Listed / EN ISO 8846 Marine /
C.E. Certified
• Patent Pending
SPECIFICATIONS
Motor: Permanent magnet, double ball bearing arma-
ture. Electronic speed control built into rear
endbell.
Pump: Four chamber positive displacement
diaphragm design. Self-priming up to 10 feet
suction lift. Pump able to run dry without
damage. Removable port adapters.
Model Volts
R4515-743 12-24Vdc
R4525-743 12-24Vdc
OPERATION
Mount the pump in a dry, ventilated location. The inlet
strainer must be installed between the fresh water
supply and the pump inlet port. The supply tank should
be at least half full prior to initial operation.
IMPORTANT: Polarity of electrical connections is very
important. Insure that the RED (+) motor lead is
connected to a fused positive d.c. circuit. The BLACK (-)
motor lead must be connected to the negative DC
circuit. In the event that polarity is reversed fuse found in
Amp Draw Max
(24V) Fuse
8.0 (4.0) 15A
12.0 (6.0) 15A
Variable Speed Water System
AUTOMATIC VARIABLE SPEED MOTOR DRIVEN
Pump Series
Height
R4515-743 3.75 (95) 6.3 (160)
R4525-743 3.75 (95) 6.3 (160) 10.3 (252)
Flow Sensor
GPM (LPM) Pressure
3.7 (13.5) 25 (1.7 bar)
4.5 (16.3) 30 (2.1 bar)
the "EMI Filter Box" must be replaced.
Sensor VSD™ pumps require a battery to be installed
in the DC power supply when using an AC to DC
converter or battery charging system.
To prime the plumbing system, open all the faucets and
turn on the power to the pump. Shut off each faucet as
it begins to run free of air. As the last faucet is closed the
pump will slow down and shut off.
Models R4515-743
Models R4525-743
Dimensions - Inches (mm)
Width Length
9.0 (221)
Cut-out
Pressure
35 psi (2.4 bar)
40 psi (2.8 bar)
Weight
lb. (kg)
4.3 (2)
6.3 (3)
Inlet
Strainer
Yes
Yes
