5.0
T
I
ECHNICAL
NFORMATION
51 Specifications
Calibration
According to SCHMIDT factory procedure
Accuracy
± 1% full scale (FS) or ± 1 graduation on scale
Take up speed
16 m/min
Scale diameter
41 mm
Temperature range
10 – 45°C
Air humidity
85% RH, max.
Housing material
Plastic (Makrolon)
Housing dimensions
210mm x 225mm x 54 mm (L x W x H)
Weight
approx. 650 g (fully assembled and ready to operate)
5.2 Available Models
Type
Tension
Range
cN
MKM-50
5 - 50
MKM-100
10 - 100
MKM-400
50 - 400
** Suitable for 95% of applications. PA = Polyamide Monofilament If the
material to be measured differs significantly from the factory calibration material
in diameter, rigidity, shape, etc., we recommend calibration using customer
material. For this purpose, a material sample of about 5 m should be supplied.
International unit for tension force:1 cN = 1.02 g = 0.01 N
Measuring
Calibration
Hand Width
Material
mm
225
PA: 0.12 mm Ø
225
PA: 0.12 mm Ø
225
PA: 0.20 mm Ø
-6-
2.0
C
B
HARGING THE
ATTERY

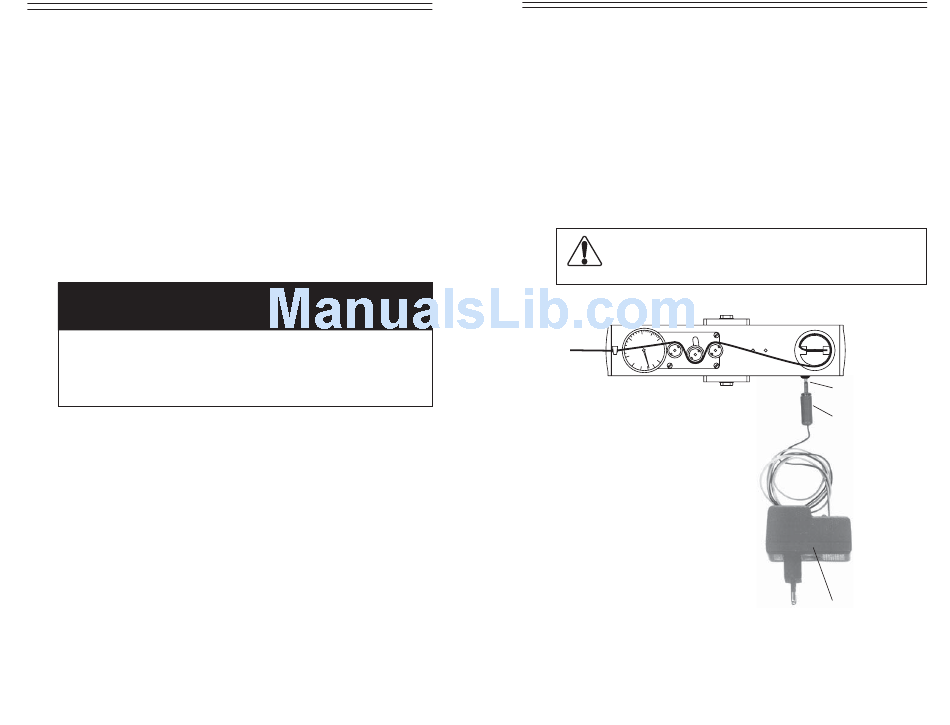

Before using your tension meter for the first time, the built-in battery must
be charged. The built-in battery should be recharged after every six hours
(maximum) of use.
Plug the battery charger (7) into the appropriate power source. Connect the jack
plug (3) of the battery charger (7) with the charger connector (5) of the tension
meter.
NOTE: Battery charging time is 14 hours.
To avoid damage, do not move the center roller by hand.
CAUTION
6
5
7
-3-
