MONOPRICE
Blackbird™ 4K HDBaseT™ 1x4 Splitter Extender
with Receivers
P/N 21793
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 21793 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monoprice 21793

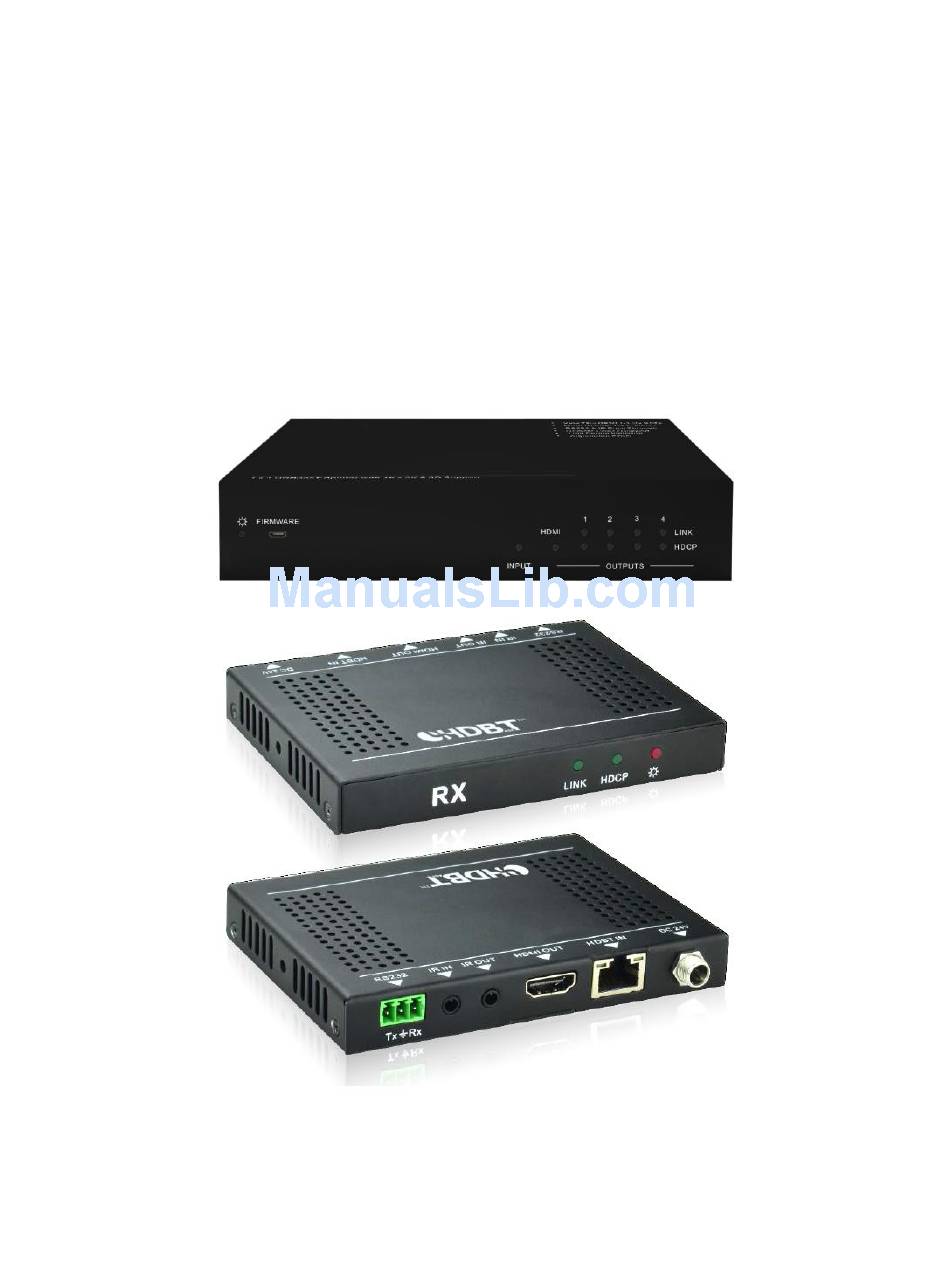

  • Page 1 MONOPRICE Blackbird™ 4K HDBaseT™ 1x4 Splitter Extender with Receivers P/N 21793 User's Manual...
  • Page 2: Table Of Contents

    CONTENTS SAFETY WARNINGS AND GUIDELINES ................................3 INTRODUCTION ............................................4 FEATURES ..............................................4 CUSTOMER SERVICE ........................................... 5 PACKAGE CONTENTS ........................................5 PRODUCT OVERVIEW ........................................6 Transmitter Front Panel ......................................6 Transmitter Rear Panel ......................................7 Receiver Front Panel ........................................8 Transmitter Rear Panel ......................................
  • Page 3: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference.  This device is intended for indoor use only. ...
  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing this Blackbird™ 4K HDBaseT™ 1x4 Splitter Extender! This device accepts a single HDMI® input and splits it into four HDBaseT outputs. It features an HDMI loop out, which allows up to three additional devices to be cascaded. It supports video resolutions up to 4K@60Hz and all HDMI audio formats.
  • Page 5: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...
  • Page 6: Product Overview

    PRODUCT OVERVIEW Transmitter Front Panel 1. POWER LED: The LED illuminates red when power is applied. 2. FIRMWARE: USB port for connecting a flash drive to perform a firmware update. 3. INPUT LED: The LED illuminates green when there is an input signal present. 4.
  • Page 7: Transmitter Rear Panel

    Transmitter Rear Panel 1. HDMI INPUT: HDMI® port for connecting the HDMI source device. 2. OUTPUTS: The OUTPUTS section contains an HDMI loop output and four HDBaseT™ RJ45 jacks with PoC support. 3. IR: A 3.5mm IR IN jack for connecting an IR receiver (not included), a 3.5mm IR LOOP output jack for cascading to another device, and a 3.5mm IR OUT jack for connecting an IR transmitter (not included).
  • Page 8: Receiver Front Panel

    Receiver Front Panel 1. LINK LED: The LED illuminates green when there is a successful link between the transmitter and the receiver. It blinks green when there is a problem with the link and is off when there is no link. 2.
  • Page 9: Transmitter Rear Panel

    Transmitter Rear Panel 4. RS232: A 3-pin RS232 connector. Connect the included 3-pin to DB9 cable to the RS232 connector, then connect the other end to your PC. 5. IR IN: 3.5mm jack for connecting an IR receiver (not included). 6.
  • Page 10: Sample Connection Diagram

    SAMPLE CONNECTION DIAGRAM Use the following sample connection diagram as a guide for connecting the Blackbird™ 4K HDBaseT™ 1x4 Splitter Extender with up to four HDBaseT PoC Receivers (not included).
  • Page 11: Cascading

    CASCADING In addition to the main unit, you can cascade up to three additional units to distribute the video signal to up to sixteen video displays. Use the following connection diagram as a guide for cascading multiple units. Note that each unit must have a unique ID if using RS232 control.
  • Page 12: Ir Control

    IR CONTROL You can connect an IR receiver and transmitter to the system to allow for IR control of remote devices. The IR feature is bidirectional, so you can control either the source or display device(s). Use the following sample connection diagrams to connect for IR remote control.
  • Page 13: Edid Management

    EDID MANAGEMENT The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with that of the connected display. By default, the source device obtains its EDID from the first connected display. However, since displays with different capabilities can be connected to the splitter, the EDID DIP switches can be used used to set the EDID to a fixed value.
  • Page 14: Dvi

    720 x 480 @ 60Hz 1280 x 720 @ 50Hz 1920 x 1080 @ 60Hz 720 x 480i @ 30Hz 1280 x 720 @ 60Hz 1920 x 1080i @ 25Hz 720 x 576 @ 50Hz 1920 x 1080 @ 25Hz 1920 x 1080i @ 30Hz 720 x 576i @ 25Hz 1920 x 1080 @ 50Hz...
  • Page 15 This device can respond to the following RS232 commands. Command Function Feedback Example Upgrades the EDID data. [x]: Unit ID, varies from 00~15 [y]: serial number of the embedded EDID, varies from 0~4 EDIDUpgrade[x][y]. WAIT FOR EDID FILE (corresponding with EDID 1~5) Connect the input source and keep energized before sending this command...
  • Page 16 correspond to the HDBaseT outputs 1~4) Switch off all the outputs of a OFF[X][0]. splitter. OFF All [X]: unit ID, varies from 00~15 Switch on several outputs of the splitter. [X]: unit ID, varies from 00~15 [Y]: serial number of the output On Y1, Y2, Y3 ON[X][Y1],[Y2],[Y3].
  • Page 17: Specifications

    2400 4800 9600 19200 38400 57600 115200 SPECIFICATIONS Transmitter Model 21793 Maximum Video Resolution 4K@60Hz, including 1080p 3D@60Hz 1080p: 196 feet (60 meters) Maximum Transmission Distance 4K: 131 feet (40 meters) Transmission Standard HDBaseT™ HDMI® Standard Input Power 24 VDC, 2.71A...
  • Page 18: Receivers

    Receivers Model 21793 Maximum Video Resolution 4K@60Hz, including 1080p 3D@60Hz 1080p: 229 feet (70 meters) Maximum Transmission Distance 4K: 131 feet (40 meters) Transmission Standard HDBaseT™ HDMI® Standard 2.0 with HDCP 2.2 Bandwidth 10.2 Gbps Input Power 24 VDC, 1.25A or Power over Cable (PoC)
  • Page 19: Notice For Industry Canada

    Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
