Blackbird™ 4K HDMI® Extender
P/N 24281
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blackbird 24281 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monoprice Blackbird 24281

  • Page 1 Blackbird™ 4K HDMI® Extender P/N 24281 User's Manual...
  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. •...
  • Page 3 This device has no user serviceable parts. Do not attempt to open, service, or • modify this device. INTRODUCTION This Blackbird™ 4K HDMI® Extender can extend HDMI signals to distances up to 164 feet (50 meters) over a single Cat6 Ethernet cable. It supports video resolutions up to 4K@60Hz YCbCr 4:4:4 with support for HDCP™...
  • Page 4: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links.
  • Page 5: Product Overview

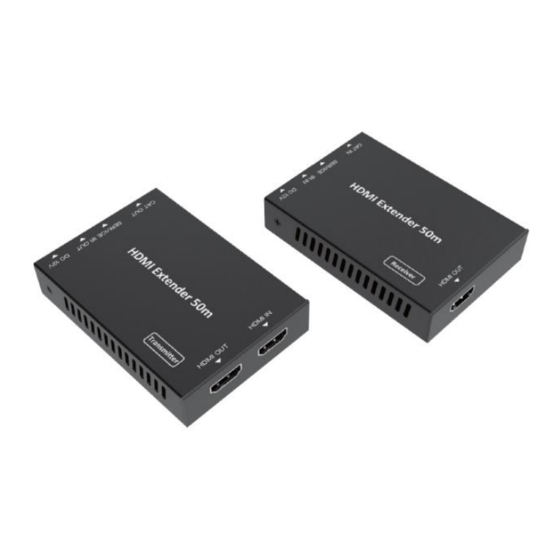

    PRODUCT OVERVIEW Transmitter HDMI OUT: HDMI® loop-through output for connecting a local display. HDMI IN: HDMI input for connecting a video source device. CAT OUT: RJ45 Ethernet connector for connecting an Ethernet cable to the receiver. POWER LED: The LED illuminates green when the transmitter is powered on. DATA LED: The LED illuminates orange when a valid signal exists between the transmitter and receiver.
  • Page 6 Receiver HDMI OUT: HDMI® port for connecting the remote display. CAT IN: RJ45 Ethernet connector for connecting an Ethernet cable from the transmitter. POWER LED: The LED illuminates green when the receiver is powered on. DATA LED: The LED illuminates orange when a valid signal exists between the transmitter and receiver.
  • Page 7: Sample Connection Diagram

    SAMPLE CONNECTION DIAGRAM...
  • Page 8: Technical Support

    TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.
  • Page 9: Regulatory Compliance

    Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
  • Page 10 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
